Overview
This sensing solution provides fast and accurate feedback for condition monitoring, enabling teams to detect early signs of misalignment, rubs, or imbalance before failures occur. Therefore, plants gain higher equipment availability while reducing unnecessary maintenance.
Specification
| Parameter | Specification |
|---|---|

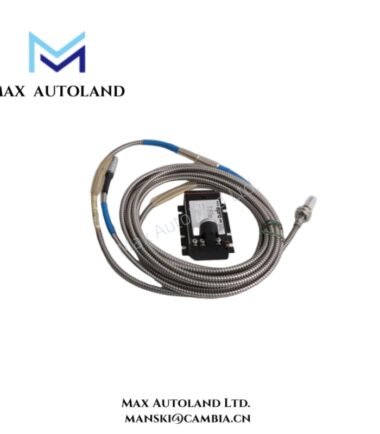

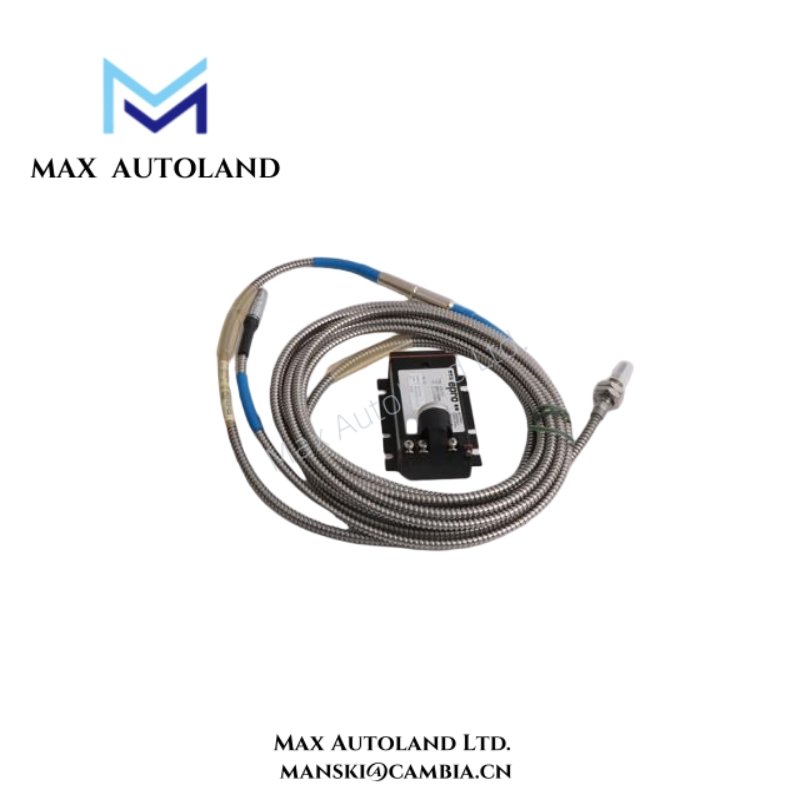

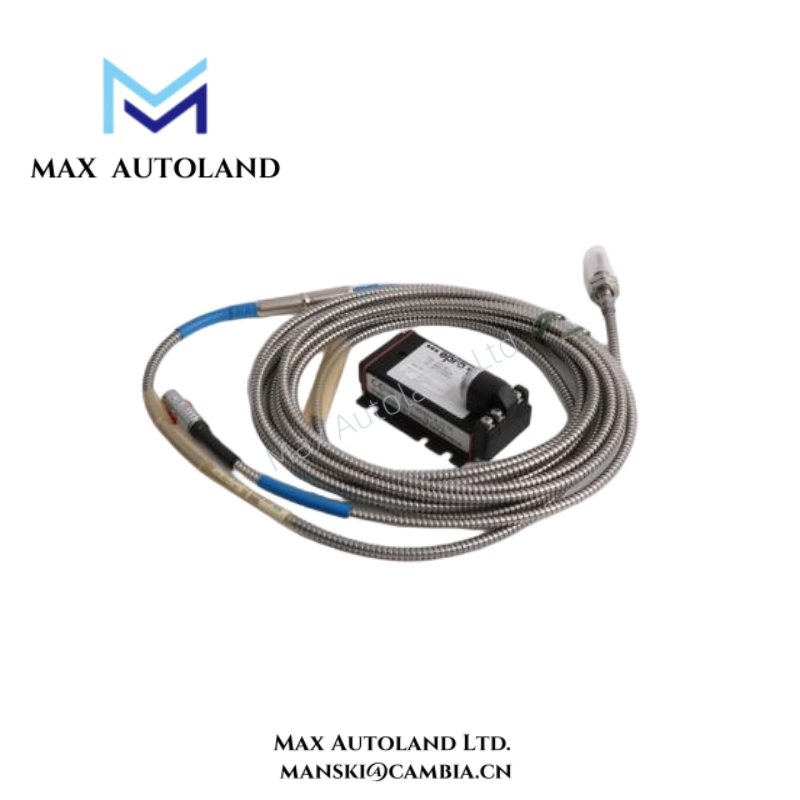

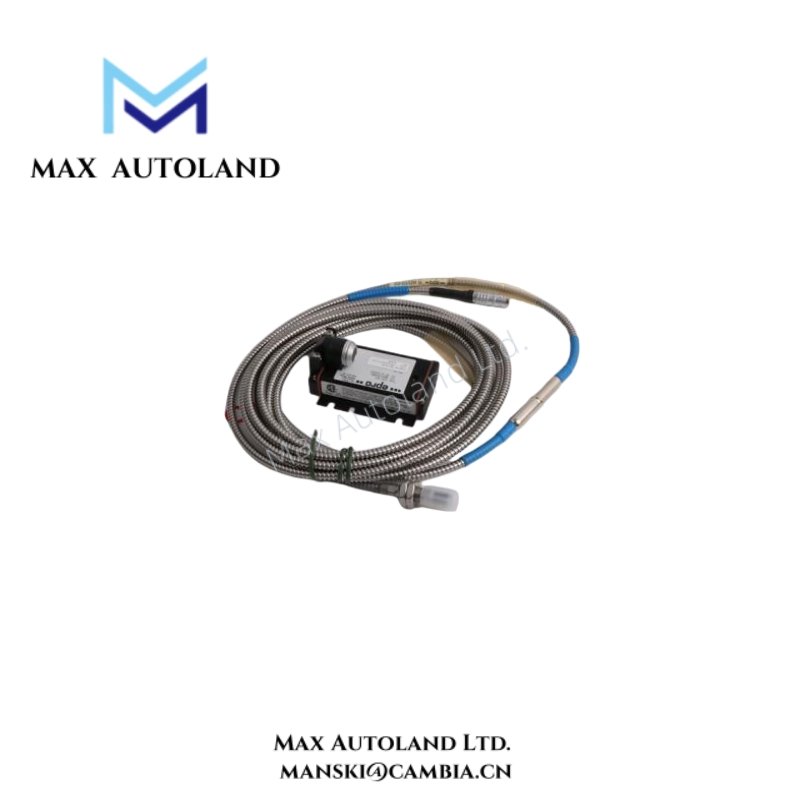

| Sensor Model | PR6423/000-010 with CON021 Converter |
| Measurement Principle | Eddy Current (Non-contact Displacement) |
| Probe Tip Diameter | 8 mm |
| Linear Measurement Range | Up to 2 mm |
| Nominal Air Gap | 0.5 mm |
| Scale Factor | 8 V/mm ±5% |
| Linearity Error | ±0.025 mm |
| Minimum Shaft Diameter | ≥ 25 mm |
| Sensor Operating Temperature | –35°C to +180°C |
| Cable/Connector Temperature | –35°C to +150°C |
| Protection Rating | IP66 |
| Frequency Response | Up to 20,000 Hz (–3 dB) |
| Rise Time | < 15 µs |
| Output Signal | Voltage output (per CON021 configuration) |
| Housing Material | Stainless Steel Probe with Industrial-Grade Cable |
FAQ
It measures shaft displacement, vibration, position, and eccentricity without contacting the shaft.
Q2: What installation conditions are required?
It needs a clean mounting surface, correct air gap, and a shaft diameter of at least 25 mm.
Q3: Can it operate in high-temperature environments?
Yes. The probe withstands temperatures up to +180°C, making it suitable for hot turbine areas.
Q4: Does the system detect fast dynamic vibration?
Yes. The frequency response reaches 20 kHz, enabling accurate measurement of rapid vibration events.
Q5: What output formats are available?
Output is determined by the CON021 converter, typically providing standard voltage signals.
Q6: Where is this sensor typically used?
It is widely used in turbines, compressors, pumps, generators, and heavy industrial rotating machinery.
