Overview

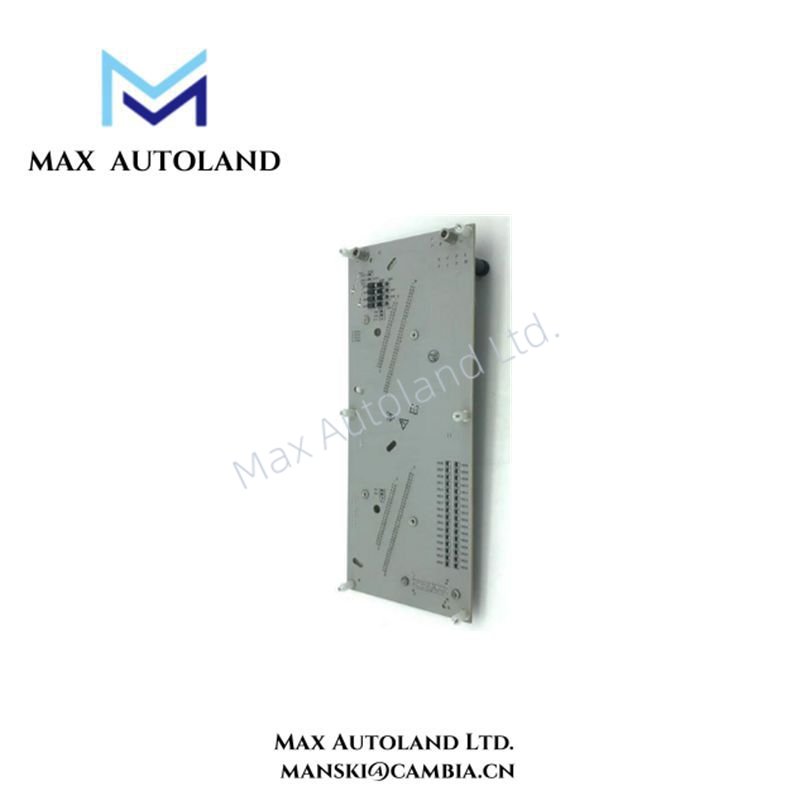

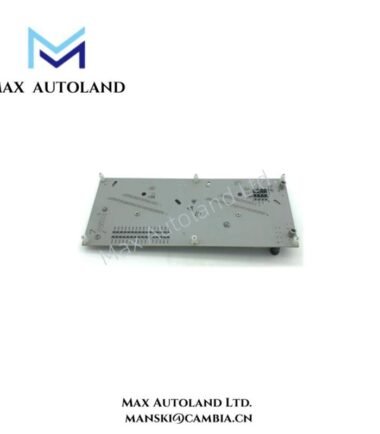

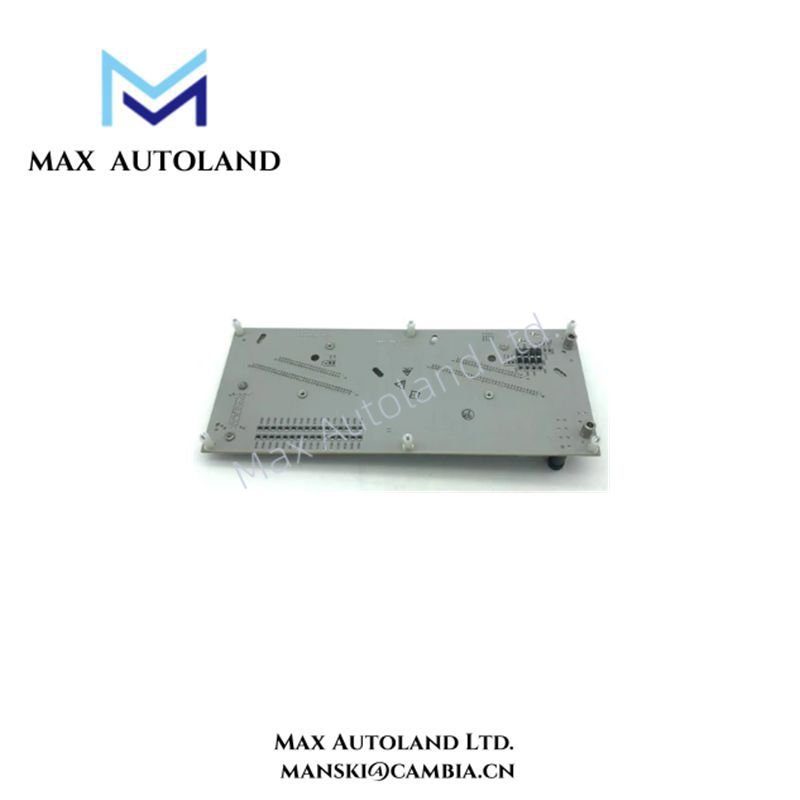

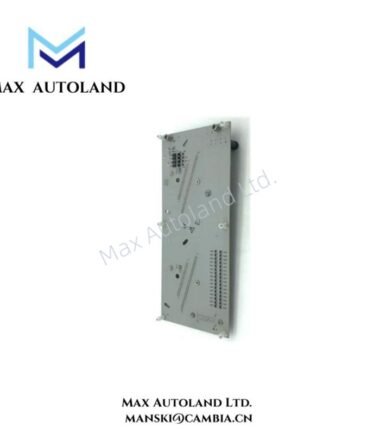

The CC-TDOR11 is a redundant digital output relay IOTA module from Honeywell’s Series C lineup. It delivers reliable dry-contact relay control for field devices like solenoids, indicator lights, and relays. Designed for Experion C300 systems, it features built-in diagnostics and Optical isolation to protect signal integrity under demanding industrial conditions.
The Digital Output Relay provides a dry contact for isolated low voltage / low current or high voltage / high current discrete output applications. Each relay supports a Form-A or Form-B output based on jumper configuration. The Relay IOTA uses the Digital Output 24V (DO24V) IOM with a special IOTA to support the Relay IOTA. All characteristics of the DO24V IOM are incorporated here.
Specification
| Feature | Specification |
|---|---|
| Model | CC-TDOR11 |
| Manufacturer | Honeywell |
| Series | Experion Series C I/O |
| Module Type | Digital Output Relay IOTA (Redundant) |
| Output Channels | 32 relay outputs |
| Relay Type | Dry contact, jumper-selectable NO or NC |
| Contact Ratings | Up to 250 VAC/30 VDC, 3 A resistive; 2 A inductive |
| Isolation | 1500 VAC RMS/channel-to-channel and to logic common |
| Output Delay | Turn-On/Turn-Off: ≤20 ms |
| Surge Suppression | Coil suppression: 120 Ω + 0.033 μF per channel |
| Contact Life | Mechanical: ~5 million cycles; Electrical: ~50k @ 6 A |
| Operating Temp | –40 °C to +70 °C |
| Storage Temp | –40 °C to +85 °C |
| Humidity | Up to 95%, non-condensing |
| Weight | Approximately 0.6 kg |
