Overview

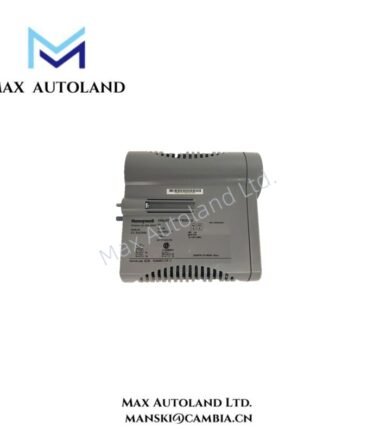

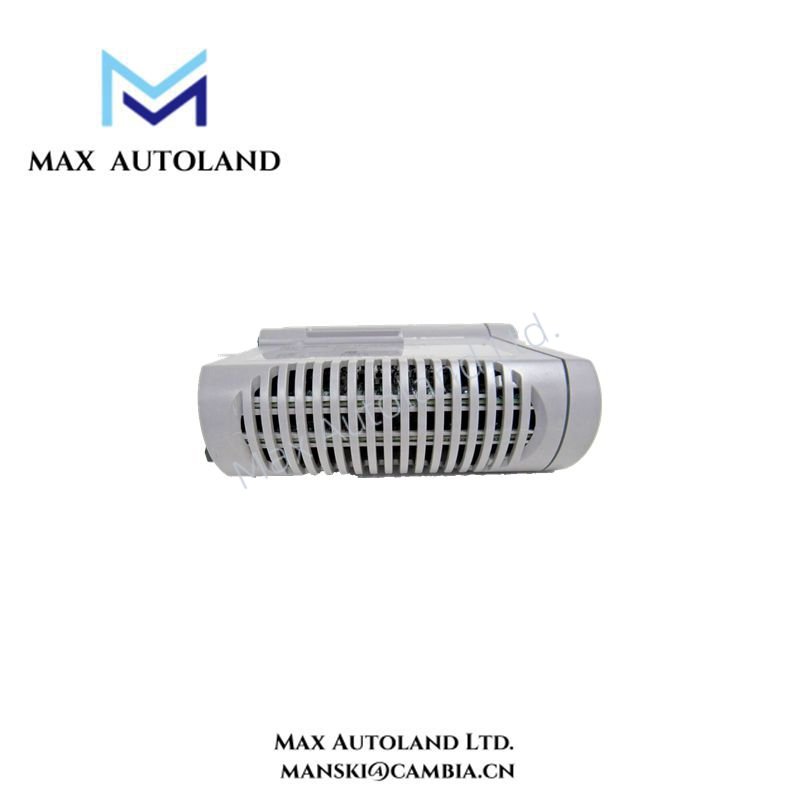

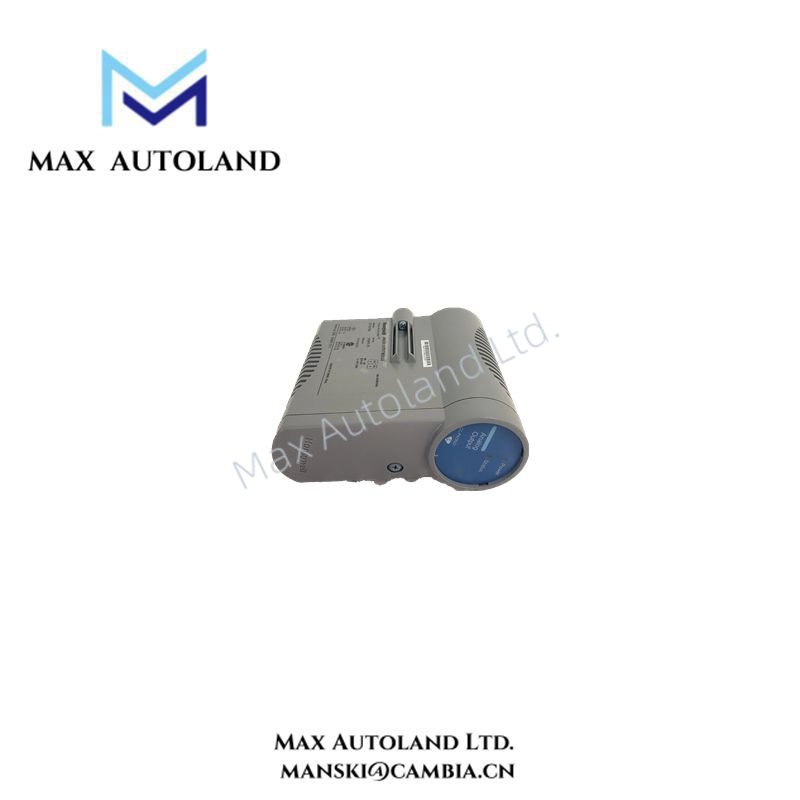

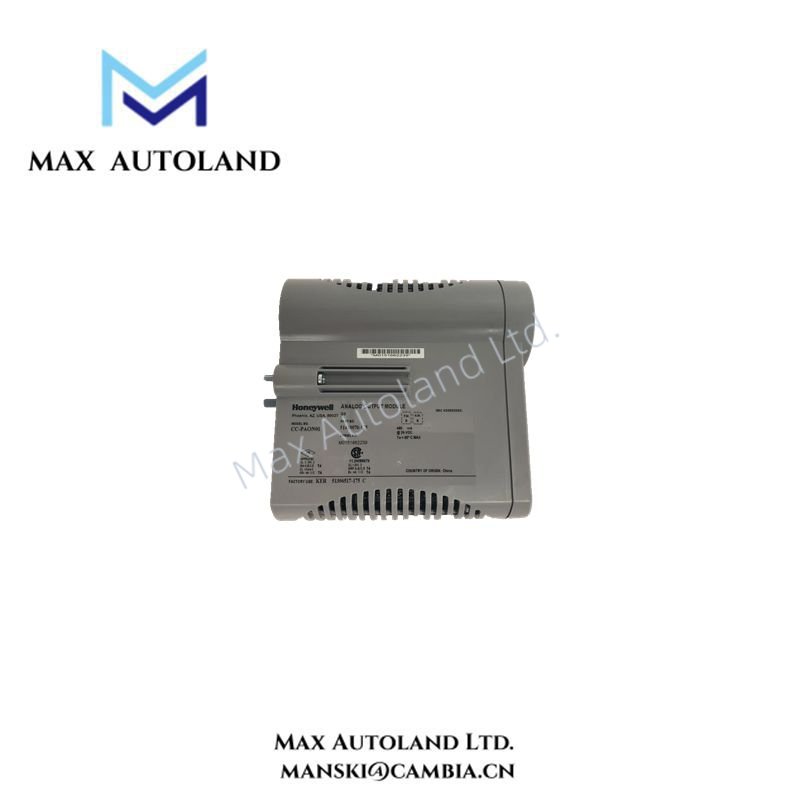

The Honeywell CC-PAON01 51410070-175 is a high-level analog output module designed for the Experion C300 control system. It provides 16 channels of 4–20 mA output, enabling precise control of field devices such as actuators and valves. This module is ideal for applications requiring accurate analog signal transmission and robust diagnostics.
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices. This Series C IO function will be able to detect and annunciate open field wire with a Channel Soft Failure indication.
Specification
| Parameter | Specification | ||
| Input/Output Model | CC-PAON01-High-Level Analog Output | ||
| IOTA Models | CC-TAON01 | Non-Redundant | 6″ |
| CC-TAON11 | Redundant | 12° | |
| Output Type | 4-20 mA | ||
| Output Channels | 16 | ||
| Output Ripple | <100 mV peak-to-peak at power line frequency,across 250 Ω load | ||
| Output Temperature Drift | 0.005%of Full Scae/C | ||
| Output Readback Accuracy | ±4%of Full Scale | ||
| Output Current Linearity | ±0.05%of Full Scale nominal | ||
| Resolution | ±0.05%of Full Scale | ||
| Calibrated Accuracy | ±0.35%of Full Scale(25°℃)including linearity | ||
| Directly Settable Output Current Range | 0 mA,2.9 mA to 21.1 mA | ||
| Maximum Resistive Load (24 V supply=22 VDC through 28 VDC) | 800 ohms | ||
| Maximum Output Compliant Voltage (24 V supply=22 VDC through 28 VDC) | 16V | ||
| Maximum Open Circuit Voltage | 22V | ||
| Response Time(DAC input code to output) | Settles to within 1%of final value within 80 ms | ||
