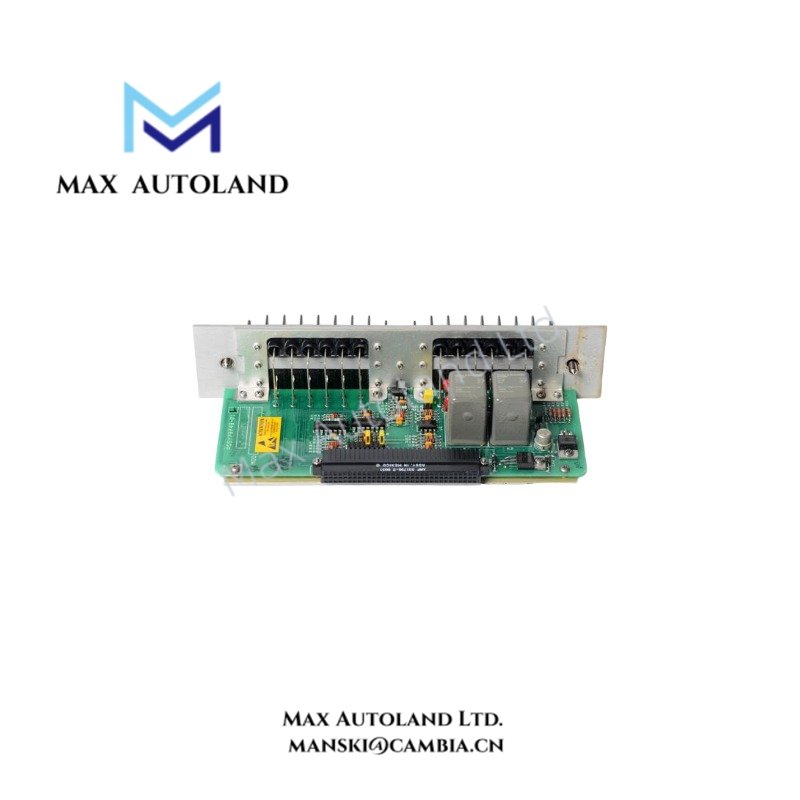

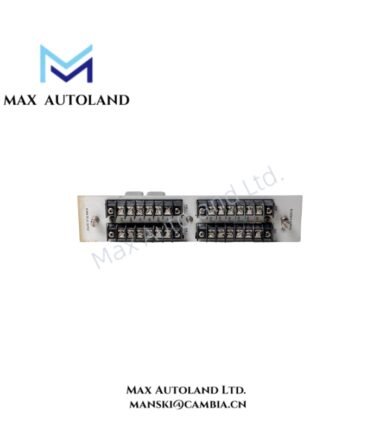

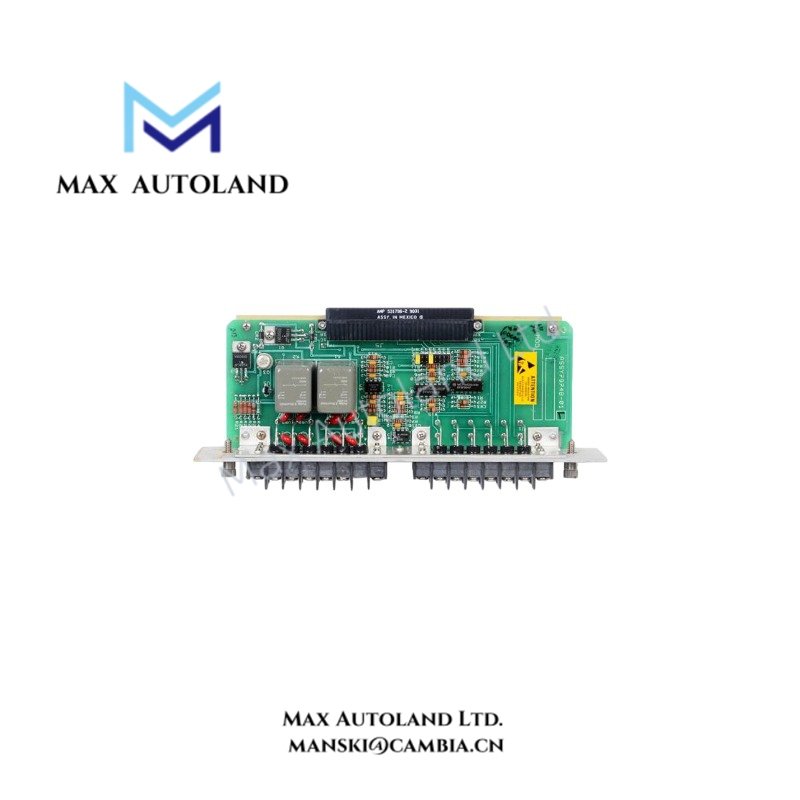

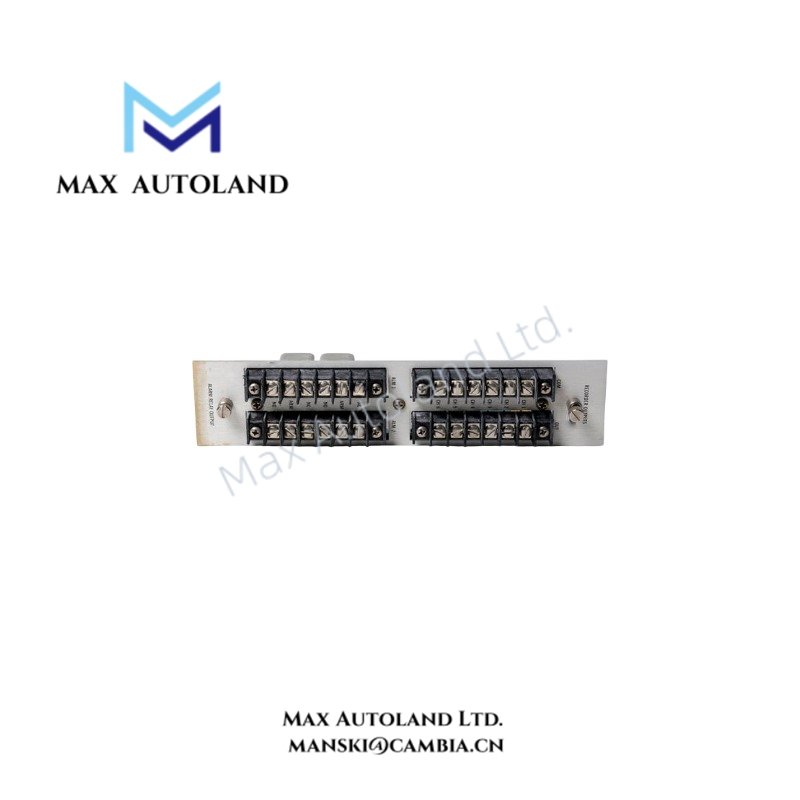

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 82366-01 |
| Brand | Bently Nevada |
| Product Series | 3300 Series Machinery Protection System |
| Component Type | Alarm Relay Output Module / I/O Relay Card |
| Relay Type | Hermetically sealed SPDT relays |
| Contact Rating | 5 A at 250 VAC or 30 VDC, as provided |
| Isolation Voltage | 500 V minimum between input and output channels, as provided |
| Operating Temp | -40 deg C to +85 deg C, as provided |
| Primary Function | Discrete alarm, indication, and protection relay output |
Relay Output and Machinery Protection Interface
The 82366-01 provides relay contacts for transferring discrete alarm or protection states from the 3300 monitoring system to external circuits. The relay interface can be used for alarm annunciation, equipment interlocks, or shutdown logic where the connected circuit is designed for the specified contact rating.
The relay output is a discrete electrical interface rather than a continuous vibration measurement channel. Monitoring modules perform the measurement and setpoint evaluation, while the relay output stage transfers the resulting state to connected external equipment.
For rotating machinery protection, the relay state can represent conditions associated with vibration, rotor position, or other monitored parameters. The actual triggering logic depends on the configuration of the associated 3300 monitoring modules and system setpoints.
Frequently Asked Questions
Q: Is the 82366-01 a vibration input module?
A: No. The supplied information identifies the 82366-01 as an alarm relay output module. Vibration measurement and signal conditioning are performed by the associated monitoring hardware.
Q: What type of electrical output does the module provide?
A: The supplied data identifies hermetically sealed SPDT relay contacts. The stated contact rating is 5 A at 250 VAC or 30 VDC.
Q: Does the module directly determine machinery alarm conditions?
A: The module provides the relay output interface. Alarm or protection decisions originate from the configured monitoring and protection logic associated with the 3300 Series system.
Field Installation Guidelines
- Install the module in the specified Bently Nevada 3300 Series rack position and verify the rack configuration before energization.
- Confirm relay contact wiring against the system drawings before connecting external alarm or shutdown circuits.
- Keep relay output wiring separated from low-level vibration sensor wiring where practical to reduce electrical coupling.
- Terminate cable shields according to the plant grounding design and the applicable 3300 Series installation documentation.
- Verify the voltage and current of each connected external circuit against the relay contact rating before commissioning.
- Do not assume hot-swap capability unless it is explicitly supported by the applicable 3300 Series hardware documentation.
- Perform continuity and functional checks on connected alarm or shutdown circuits before placing the machinery protection system into service.
