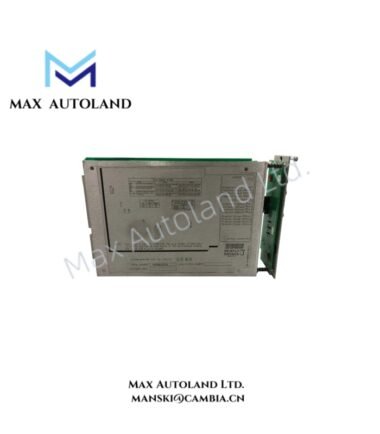

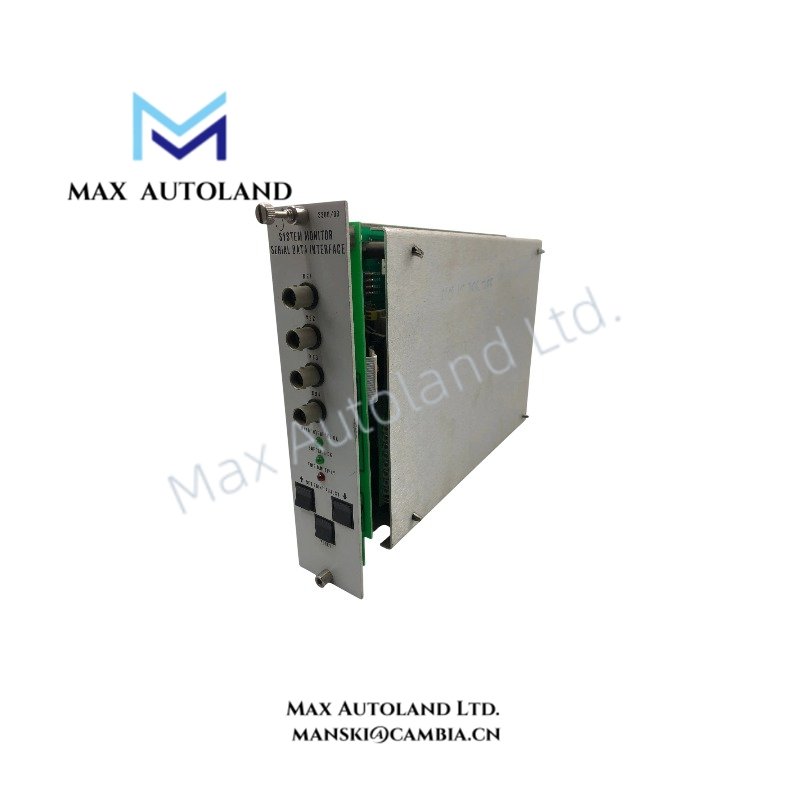

Bently Nevada 89998-01 3300 Series System Monitor

Hardware Specifications

Keyphasor Signal and Machinery Monitoring

The 3300/03 system monitor handles rack-level Keyphasor signal functions used by the machinery monitoring system. Keyphasor signals provide a phase reference for rotating-shaft measurements and support synchronization of vibration and rotor-position data.

For eddy-current proximity probe systems, installation verification should include probe gap and signal polarity checks before commissioning. A typical proximity-probe reference condition uses a negative DC gap voltage, with approximately -10 VDC commonly used as a nominal validation target where the applicable transducer system specifies it. The actual acceptance range must follow the associated probe and monitor documentation.

Frequently Asked Questions

Q: Does the 89998-01 function as an individual vibration measurement channel?
A: No. The supplied data identifies the 89998-01 as a rack-level system monitor and interface component. Individual measurement functions are performed by the applicable 3300 monitoring modules and associated transducers.

Q: What rack input voltage is specified for the 89998-01?
A: The supplied information specifies a nominal 24 VDC rack input.

Q: Does the module provide Keyphasor signal functions?
A: Yes. The supplied information identifies Keyphasor signal power, conditioning, and distribution as system functions.

Field Installation Guidelines

Install the 89998-01 in the designated position of a compatible 3300 Series rack. Confirm rack power wiring and polarity before energizing the system.

Route Keyphasor and transducer wiring separately from high-current switching conductors and other significant noise sources. Maintain appropriate cable shielding and terminate shields according to the applicable 3300 system wiring documentation.

Verify all rack connectors, terminal connections, and module seating before commissioning. Check the Keyphasor signal and associated transducer circuits before enabling alarm functions.

Do not infer operating temperature, power consumption, dimensions, or mounting clearances from the model number. Use the applicable Bently Nevada 3300 Series installation documentation for those parameters.
