Overview

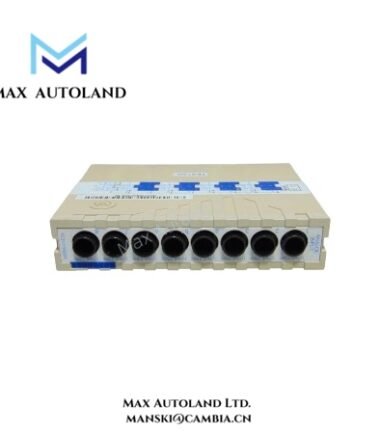

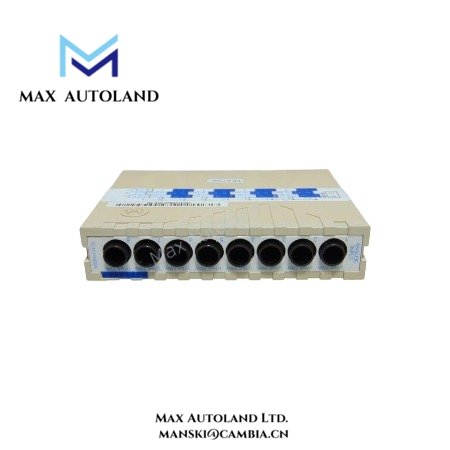

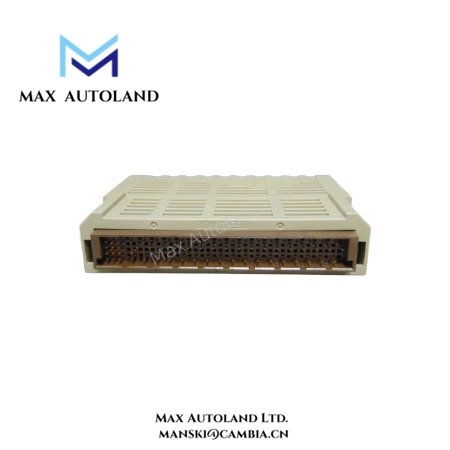

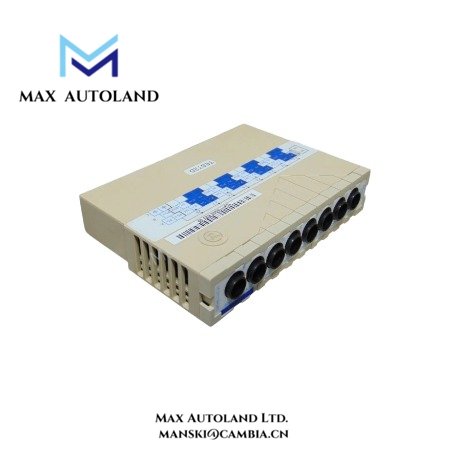

The 1C31116G03 from Emerson Ovation provides precise analog signal acquisition for critical industrial process control systems. Moreover, this module integrates seamlessly into Ovation distributed control architectures, ensuring stable and accurate monitoring. Its compact dimensions of 160 mm × 120 mm × 75 mm optimize panel space, while the 1.15 kg weight allows easy handling and installation.
In addition, the 1C31116G03 supports eight high-resolution analog input channels, enabling efficient measurement of multiple process variables simultaneously. The module accepts standard 4–20 mA signals, with internal A/D converters providing accurate digital readings. Furthermore, robust signal conditioning circuits minimize noise and maintain signal integrity under industrial environmental conditions.
Specification
| Parameter | Specification |
|---|---|
| Model | 1C31116G03 |
| Manufacturer | Emerson Ovation |
| Category | Analog Input Module |
| Series | Ovation I/O Modules |
| Dimensions (L×W×H) | 160 mm × 120 mm × 75 mm |
| Weight | 1.15 kg |
| Input Channels | 8 differential analog inputs |
| Input Signal Range | 4–20 mA standard, configurable ranges supported |
| Input Resolution | 16-bit high-resolution conversion |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω typical |
| Sampling Rate | Up to 10 samples per second per channel |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Typical 4 W, Maximum 6 W |
| Interfaces | Backplane bus interface for Ovation system integration |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Energy Storage | Internal capacitors for transient signal stabilization |
| Mounting | DIN rail or Ovation rack mounting |
| Components Included | Signal conditioning circuits, A/D converter, interface controller |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Protection Class | IP20 |
| EMC Compliance | Meets industrial EMI/EMC standards |
FAQ
Q1: Is this product brand new and original?
A1: Yes, the 1C31116G03 is 100% brand new and original Emerson Ovation module.
Q2: Do you have this module in stock?
A2: Yes, the 1C31116G03 is available in stock for immediate shipment.
Q3: How fast can the product be shipped?
A3: We ship within 3 days to 2 weeks depending on order size and availability.
Q4: Which logistics services are used?
A4: We commonly use DHL and other reliable carriers for fast global delivery.
Q5: What if there is a quality issue?
A5: We support returns within 30 days if any quality problem occurs.
Q6: How many input channels does this module support?
A6: The 1C31116G03 provides 8 high-resolution analog input channels.
