Overview

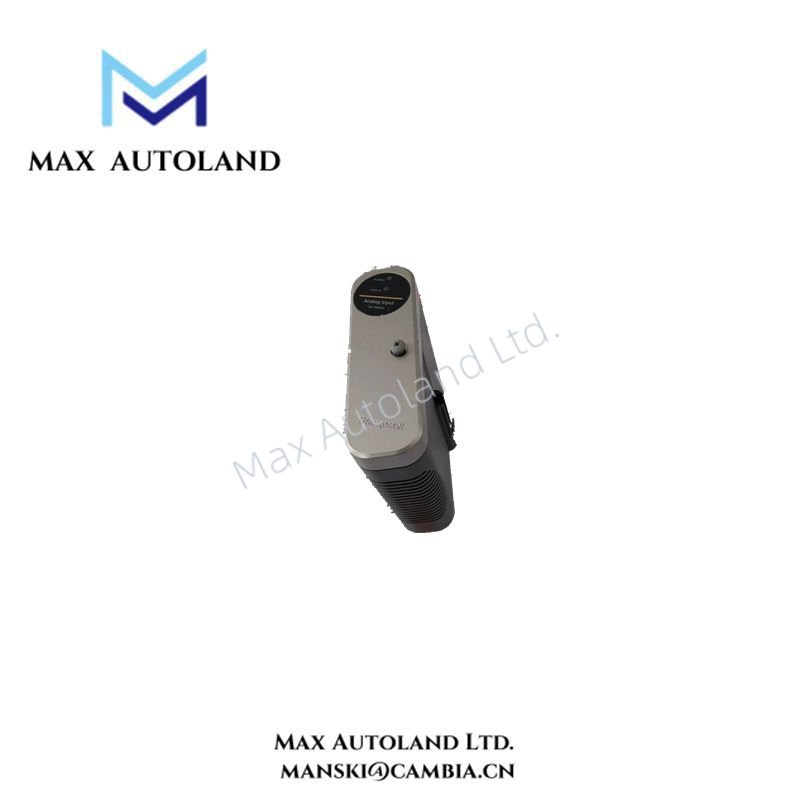

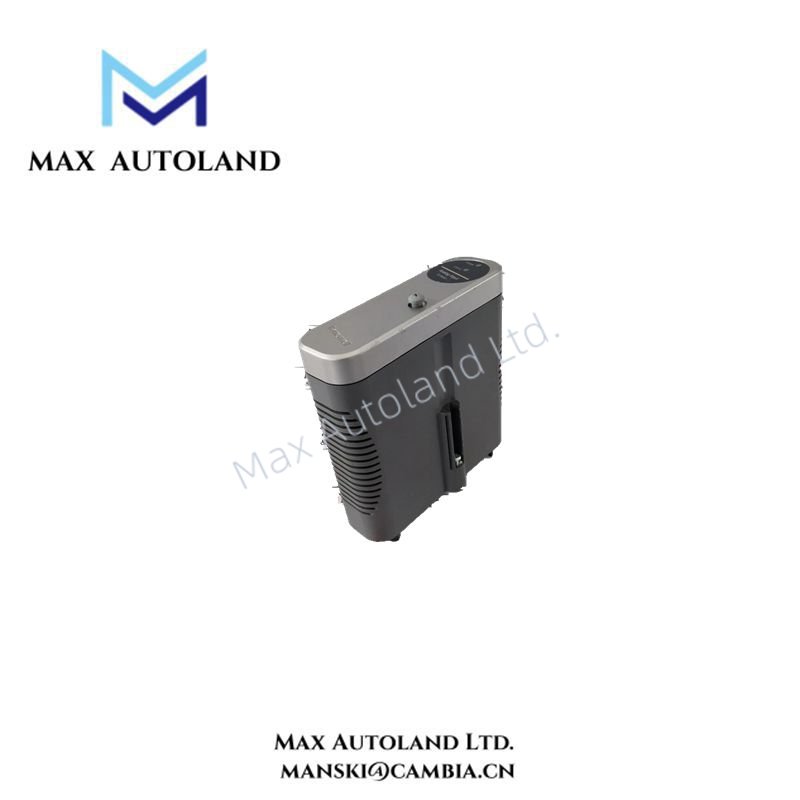

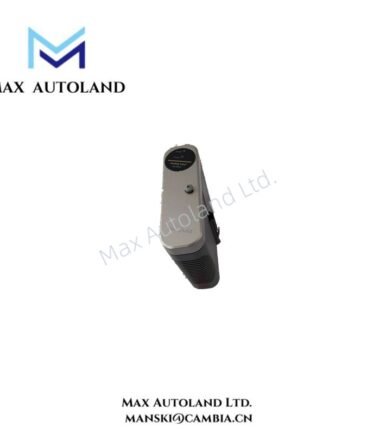

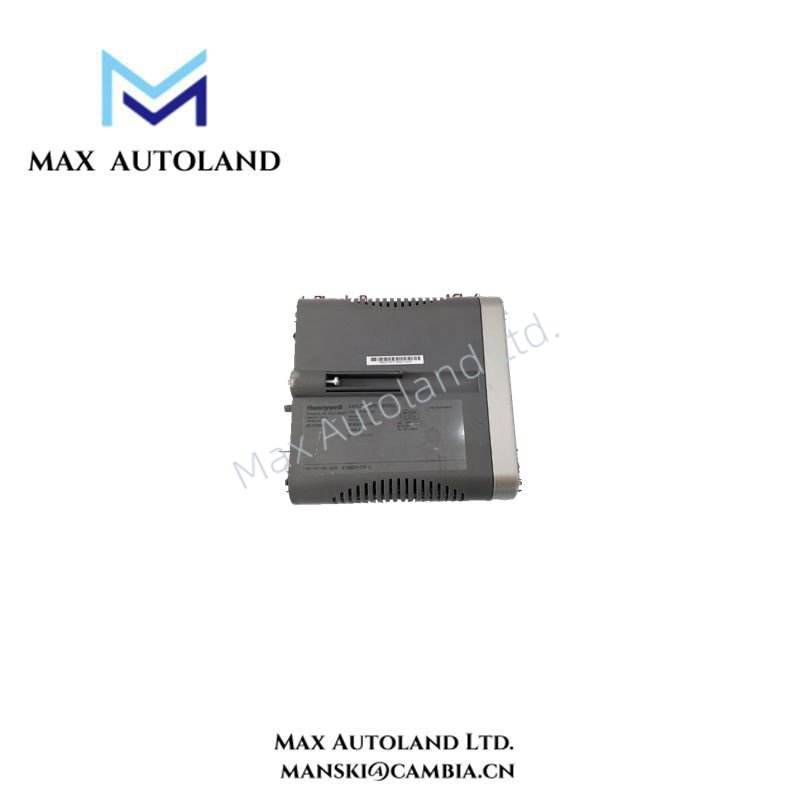

The Honeywell 8C-PAIN01 serves as a high-performance analog input module in the PlantCruise by Experion® Series 8 I/O family. Moreover, it delivers precise signal acquisition across 16 single-ended channels. Additionally, it features conformal coating that enhances durability in harsh industrial environments. Furthermore, non-incendive power eliminates the need for external marshalling, which streamlines installation. Consequently, this module ensures reliable performance in critical control systems.
Series 8 Field connections use a standard modular connector. The connector modularity allows for removal and insertion of the field wiring. This significantly reduces installation and maintenance procedures and can assist in field check out. Series 8 field connectors accept up to 12ga AWG / 2.5mm stranded wire.
Specification
| Parameter | Specification |
|---|---|
| Model | 8C-PAIN01 |
| Coating | Conformal coating for industrial protection |
| Input Type | 4–20 mA from 2-wire or self-powered transmitters Analog Input, Coated |
| Channels | 16 single-ended channels |
| A/D Resolution | 16 bits |
| Non-Incendive Field Power | Yes (no external power required) |
| Scan Rate | Fast loop scan (specific ms value depends on system config) |
| Diagnostics | Extensive self-diagnostics and channel-level protection circuits |
| Environmental Rating | Coated for harsh industrial use |
