Overview

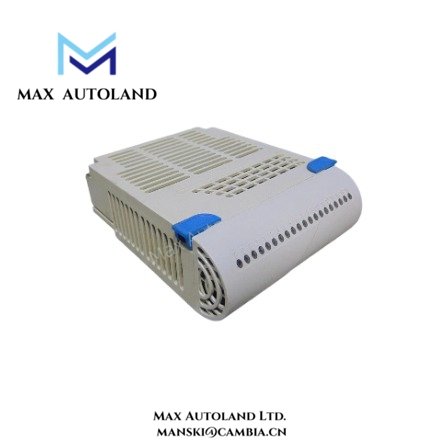

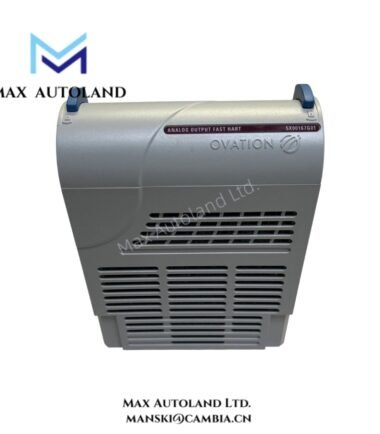

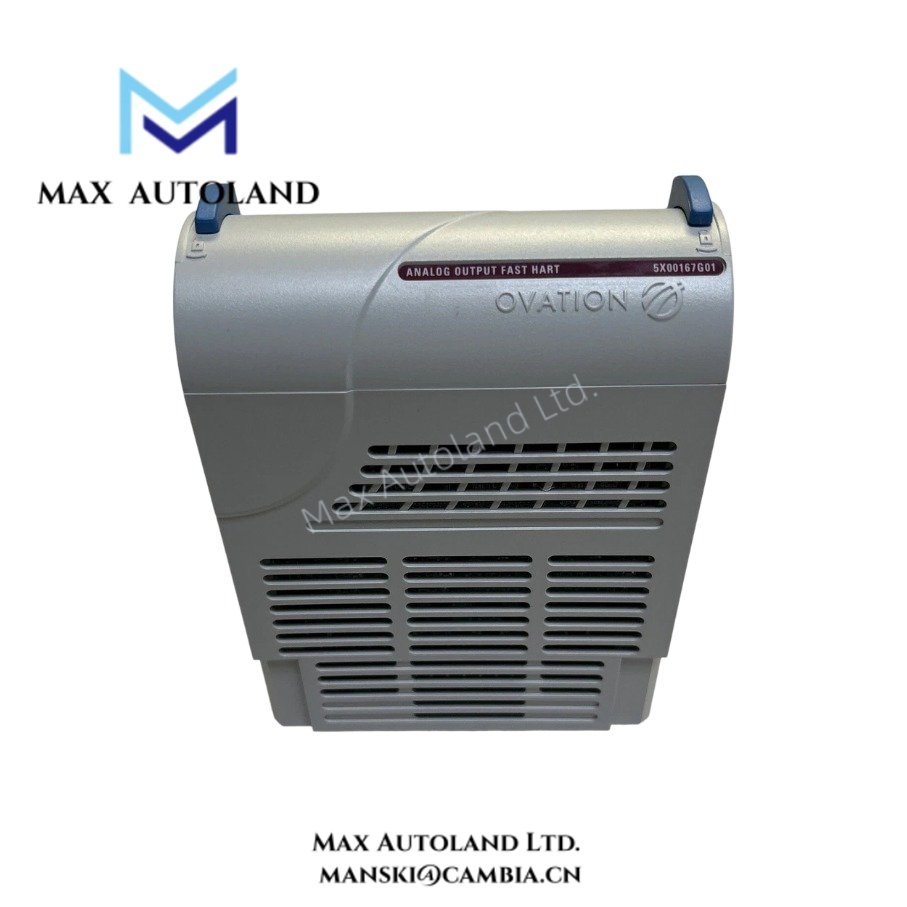

The 5X00167G01 from Emerson Ovation delivers fast and accurate analog output control for advanced process automation systems. Moreover, this module integrates directly into Ovation distributed control systems, ensuring stable communication and precise signal transmission. Its compact dimensions of 160 mm × 120 mm × 75 mm optimize cabinet space, while the 1.2 kg weight simplifies installation and handling.
In addition, the 5X00167G01 supports multiple analog output channels, enabling efficient control of valves, actuators, and field instruments. The module outputs standard 4–20 mA signals and supports fast HART communication for real-time diagnostics and configuration. Furthermore, the internal circuitry enhances signal stability and minimizes noise interference during high-speed signal updates.
Specification
| Parameter | Specification |
|---|---|
| Model | 5X00167G01 |
| Manufacturer | Emerson Ovation |
| Category | Analog Output Fast HART Module |
| Series | Ovation I/O Modules |
| Dimensions (L×W×H) | 160 mm × 120 mm × 75 mm |
| Weight | 1.2 kg |
| Output Channels | 8 analog output channels |
| Output Signal Range | 4–20 mA configurable |
| Signal Resolution | 16-bit high-resolution output |
| Accuracy | ±0.1% of full scale |
| HART Communication | Fast HART enabled, supports device diagnostics |
| Update Rate | <100 ms per channel |
| Output Load | 0–750 Ω |
| Interfaces | Ovation backplane interface, HART communication support |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Typical 5 W, Maximum 7 W |
| Energy Storage | Internal capacitors for stable output during transient conditions |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Mounting | DIN rail or Ovation rack mounting |
| Components Included | Output driver circuits, HART modem, control processor, terminal connectors |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Protection Class | IP20 |
| EMC Compliance | Meets industrial EMI and EMC standards |
FAQ
Q1: Is this product brand new and original?
A1: Yes, the 5X00167G01 is 100% brand new and original Emerson Ovation module.
Q2: Do you have stock available?
A2: Yes, we keep the 5X00167G01 in stock and support fast order processing.
Q3: How fast can you ship the product?
A3: We ship within 3 days to 2 weeks depending on order size and availability.
Q4: Which logistics services do you use?
A4: We commonly use DHL and other reliable carriers for fast global delivery.
Q5: What if there is a quality issue?
A5: We support returns within 30 days if any quality problem occurs.
Q6: Does this module support HART communication?
A6: Yes, the 5X00167G01 supports fast HART communication for diagnostics and configuration.
