Overview

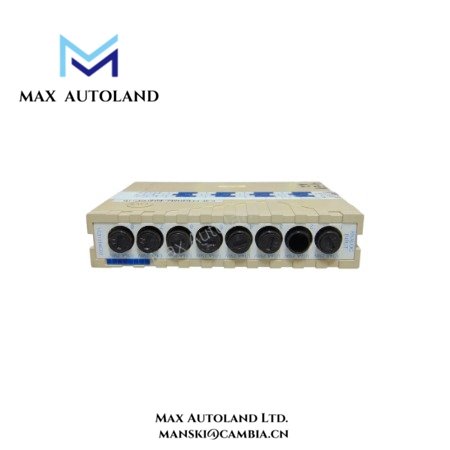

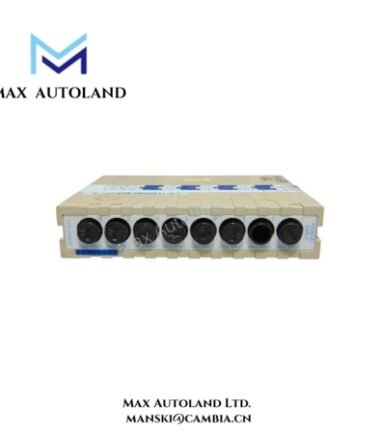

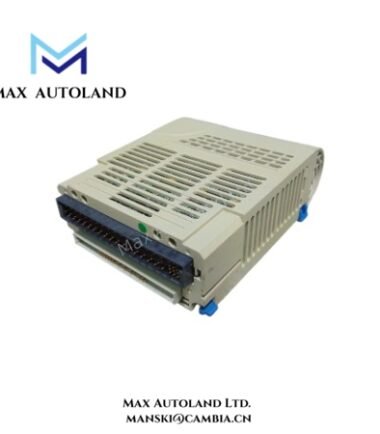

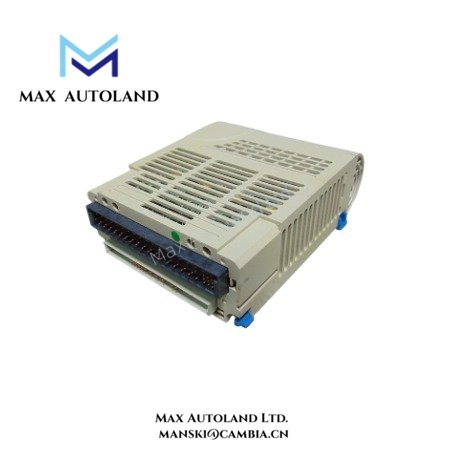

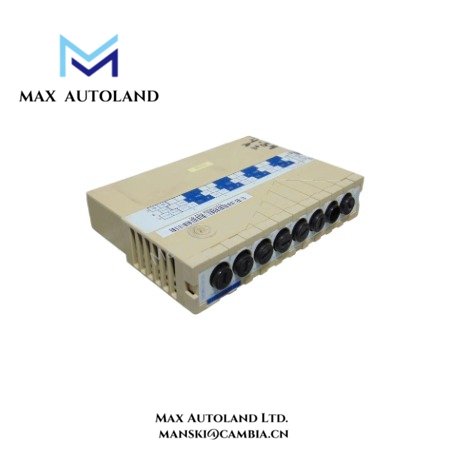

The 1C31116G02 from Emerson Ovation delivers precise analog signal acquisition for industrial control systems. Moreover, this module integrates directly with Ovation distributed control systems, ensuring stable and accurate process monitoring. Its compact design optimizes panel space, while the lightweight structure simplifies installation and maintenance.
In addition, the 1C31116G02 supports multiple analog input channels, enabling efficient measurement of process variables across complex systems. The module accepts 4–20 mA signals and provides high-resolution A/D conversion for accurate readings. Furthermore, robust internal circuitry minimizes noise interference and maintains signal integrity under harsh industrial conditions.
Specification
| Parameter | Specification |
|---|---|
| Model | 1C31116G02 |
| Manufacturer | Emerson Ovation |
| Category | Analog Input Module |
| Series | Ovation I/O Modules |
| Dimensions (L×W×H) | 160 mm × 120 mm × 75 mm |
| Weight | 1.15 kg |
| Input Channels | 8 differential analog inputs |
| Input Signal Range | 4–20 mA standard, configurable ranges available |
| Input Resolution | 16-bit high-resolution conversion |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω typical |
| Sampling Rate | Up to 10 samples per second per channel |
| Power Supply | 24 VDC ±10% |
| Power Consumption | Typical 4 W, Maximum 6 W |
| Interfaces | Backplane bus interface for Ovation system integration |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Energy Storage | Internal capacitors for transient signal stabilization |
| Mounting | DIN rail or Ovation rack mounting |
| Components Included | Signal conditioning circuits, A/D converter, interface controller |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Protection Class | IP20 |
| EMC Compliance | Meets industrial EMI/EMC standards |
FAQ
Q1: Is this product brand new and original?
A1: Yes, the 1C31116G02 is 100% brand new and original Emerson Ovation module.
Q2: Is this module available in stock?
A2: Yes, we keep the 1C31116G02 in stock and support fast order processing.
Q3: How fast can the product be shipped?
A3: We ship within 3 days to 2 weeks depending on order quantity and availability.
Q4: Which logistics services are used?
A4: We commonly use DHL and other reliable carriers for fast and secure delivery.
Q5: What if the module has a quality issue?
A5: We support returns within 30 days if any quality problem occurs.
Q6: How many input channels does this module support?
A6: The 1C31116G02 provides 8 differential analog input channels for multi-point monitoring.
Reviews
There are no reviews yet.
