Overview

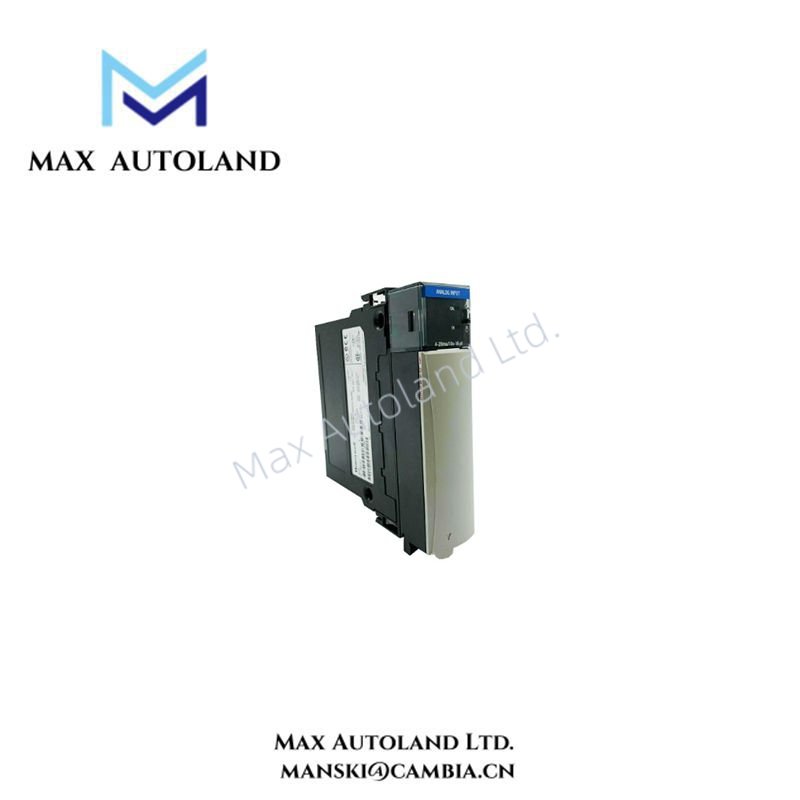

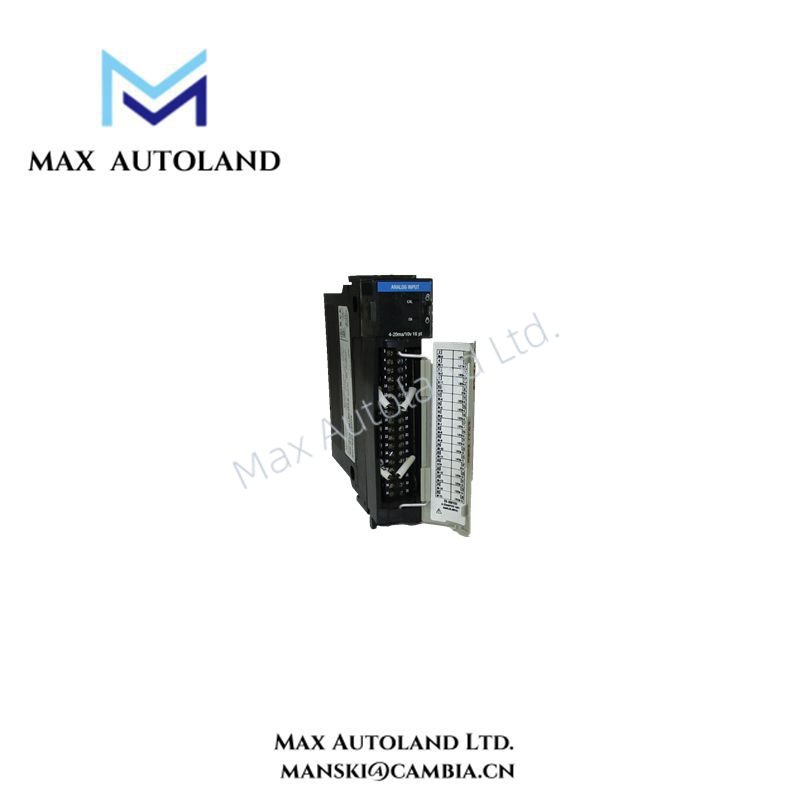

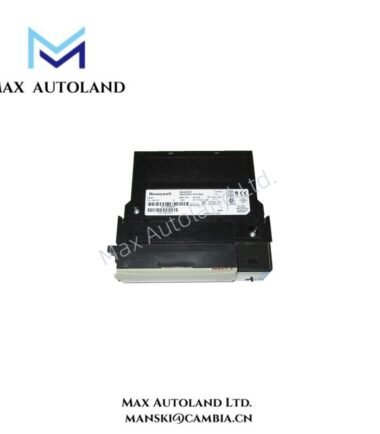

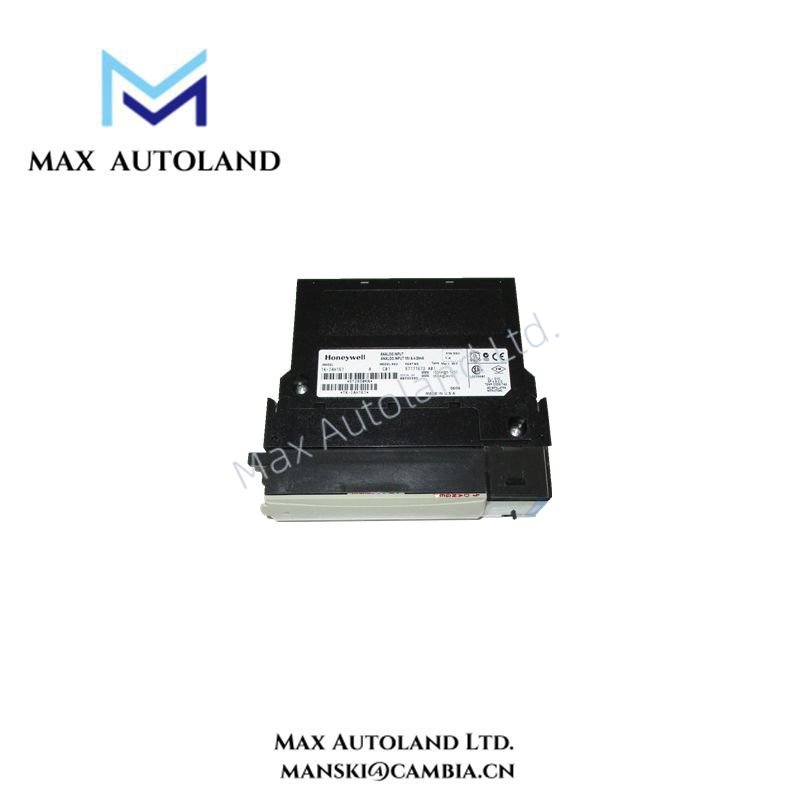

The Honeywell TK-IAH161 Analog Input Module is designed to provide reliable signal acquisition for industrial automation platforms. It integrates seamlessly into the Honeywell C200 series and ensures accurate data transmission for PLC and DCS control systems. With robust construction and clear specifications, it supports stable operation in demanding environments.
Engineers can rely on the TK-IAH161 to manage multiple input channels with consistent accuracy. Its compact size reduces rack space usage, while its coated design enhances durability against environmental stress. Moreover, the module streamlines installation and maintenance by offering standardized connectors and efficient wiring interfaces.
Specification
| Parameter | Specification |
| Number of Points | 16 channels |
| Input Voltage Range(Voltage) Input Current Range(Current) | ±10.25 volts,O to 10.25 volts,O to 5.125 volts 0 to 20.5mA(internal 250 Q resistor) |
| Voltage Resolution ±10.5 volt range 0 to 10.5 volt range 0 to 5 volt range Current Resolution | 16 bits across each range shown below 320μV 160 μV 80μV 320ηA |
| Module Publish Rate | 250 msec |
| Input Impedance (Voltage) (Current) | Greater than 1.0 meg 249 ohms Q nominal |
| Open Circuit Detection Typical OC Detection Time | Voltage Even channels-Positive Full scale reading Odd channels-Negative Ful scale reading Current-Negative Full scale reading ess than 5 seconds |
| Normal Mode Noise Rejection Common Mode Rejection | Greater than 33dB@50 Hz Greater than 60 dB@60Hz 100 dB@50/60 Hz |
| Channel Bandwidth | 20 Hz(-3dB) |
| Calibrated Accuracy @25℃ | Better than 0.05%of range(Voltage) Better than 0.15%of range including sense resistor (Current) |
| RFI Immunity | Error o less than 2.0%of range at 10 V/m, 27 to 1000 MHz |
| Overvoltage Capability | Continuous at room temperature (both) 30 VDC(Voltage) 8 VDC(Current) |
| Input Offset Drift with Temperature | <90 μV/°C(Voltage) <360 ηA℃ typical (Current) |
| Gain Drift with Temperature | 15 ppm/°C(Voltage);20 ppm/°C(Current) |
| Module Error Over FullTemp.Range | 0.1%of range(Voltage) 0.3%of range(current) |
| Power Dissipation | 4.1W max |
| Backplane Current | See Module Power Consumption Data,page 46. |
| Isolation Voltage User to system | 100%Tested at 2550VDC for 1s |
| Connection Terminal Blocks | TC-TBCH,36-position terminal block |
