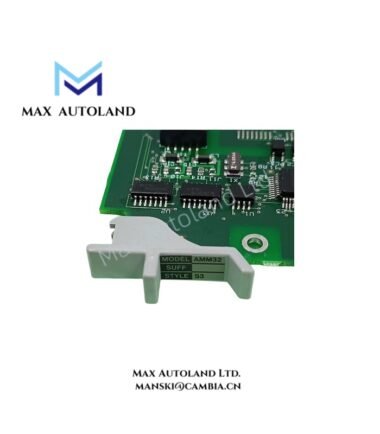

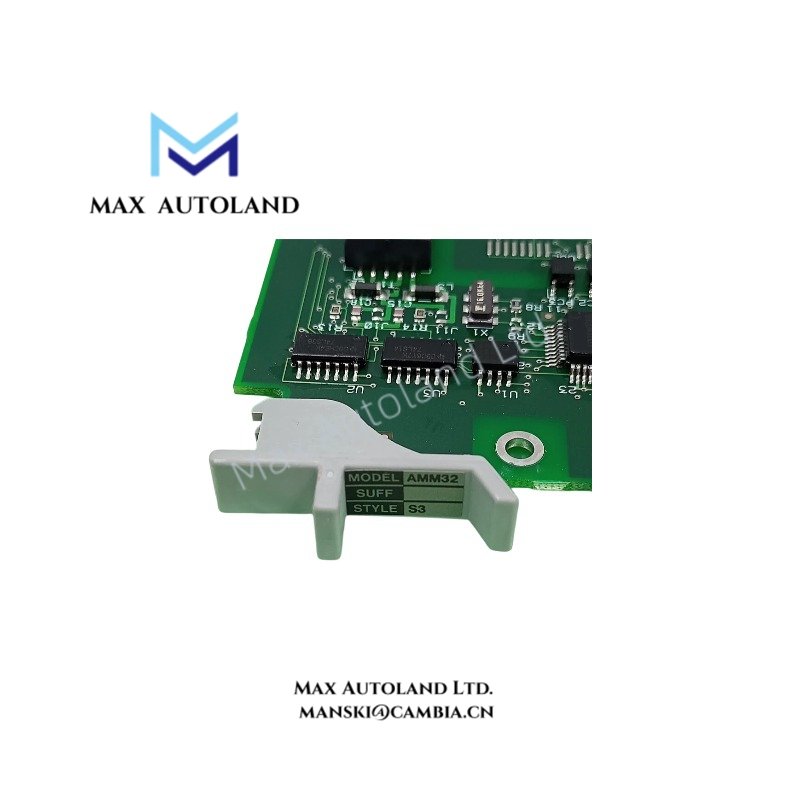

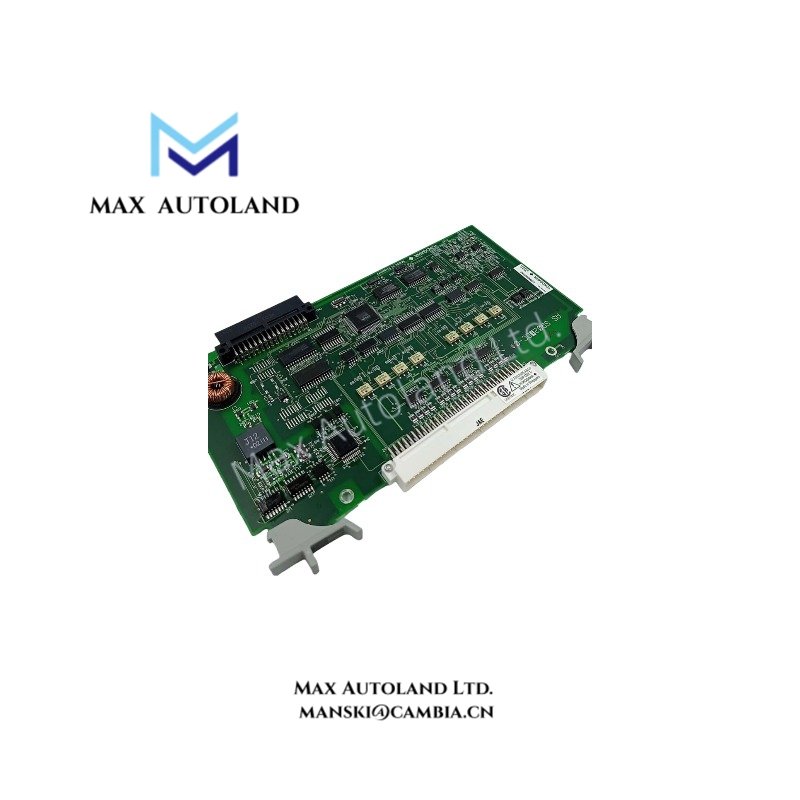

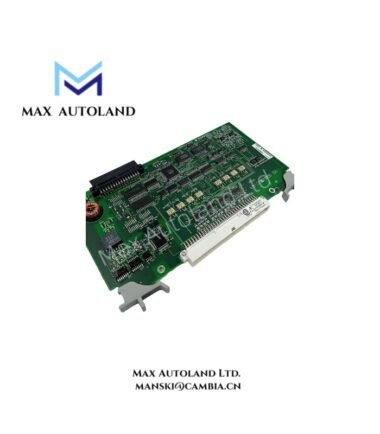

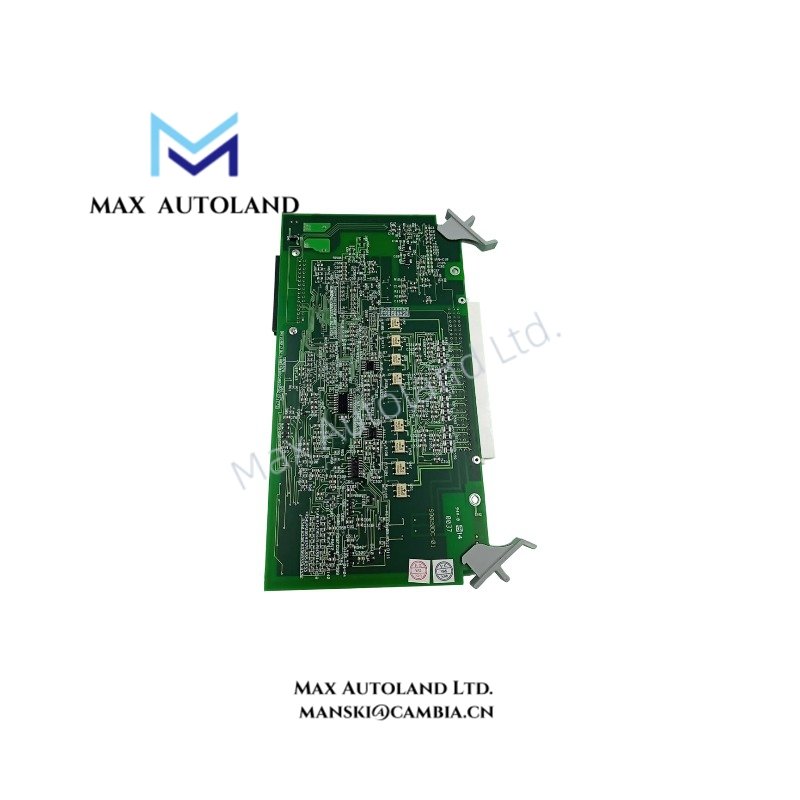

Yokogawa S3 Analog Module AMM32

Hardware Specifications

Yokogawa DCS Signal Conditioning and Isolation Features

The AMM32 S3 is designed for analog measurement processing within Yokogawa distributed control architectures. The module performs field signal conditioning before data transfer to the CENTUM control environment.

The hardware design supports channel-to-channel isolation requirements for process instrumentation interfaces, reducing signal interference between independent measurement loops. Analog acquisition circuits provide input filtering and conversion functions for continuous process variables.

For instrument loops using standard process signals, Yokogawa DCS modules in this product family support integration with analog transmitters through configured input ranges. Signal handling functions may include transmitter scaling, engineering unit conversion, and diagnostic monitoring depending on the installed system configuration.

Frequently Asked Questions (FAQ)

Q: Is the AMM32 S3 compatible with Yokogawa CENTUM CS and CENTUM VP systems?
A: The AMM32 S3 is specified as an Analog Module for Yokogawa CENTUM CS and CENTUM VP platforms. Compatibility depends on the installed I/O rack configuration and system hardware revision.

Q: Does the AMM32 S3 provide field transmitter loop power?
A: The module is an analog processing module. Field transmitter power availability depends on the associated I/O configuration and external field supply arrangement.

Q: Can the AMM32 S3 be replaced while the control system is operating?
A: Hot-swap capability depends on the specific CENTUM hardware architecture and rack configuration. Replacement procedures must follow the applicable Yokogawa maintenance documentation.

Field Installation Guidelines

• Install the module only in the designated Yokogawa I/O rack or node configuration specified for CENTUM CS/CENTUM VP systems.
• Verify module orientation, connector alignment, and mechanical locking features before insertion.
• Route analog field wiring separately from high-voltage power cables and high-noise switching circuits.
• Use appropriate shield termination practices for analog signal cables to reduce electromagnetic interference.
• Confirm grounding continuity between the I/O rack, cabinet ground system, and field instrument shields according to site electrical standards.
• Check configured channel assignments and signal ranges after installation before returning the control loop to service.
