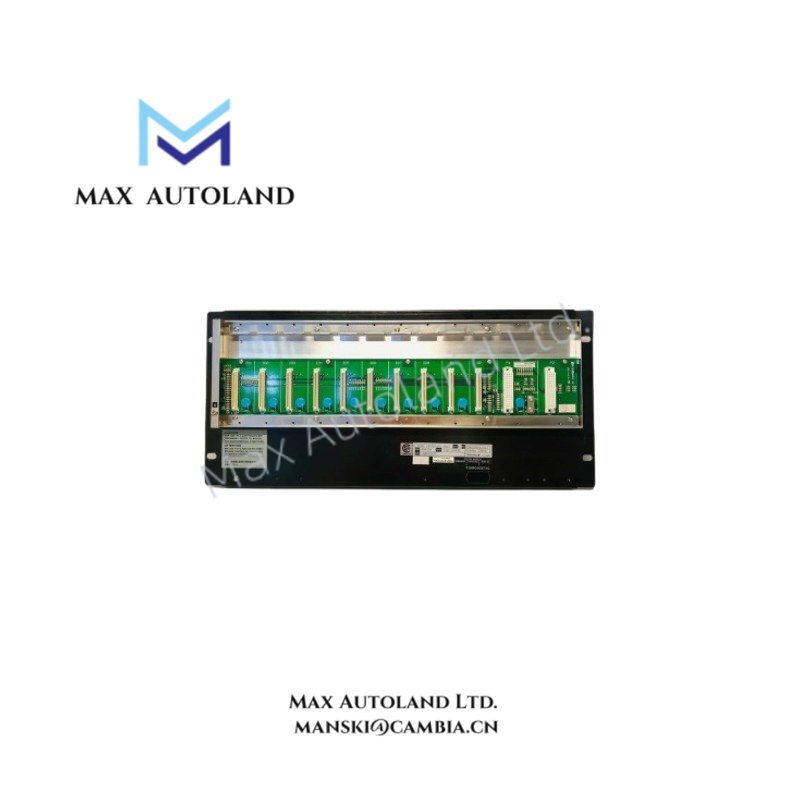

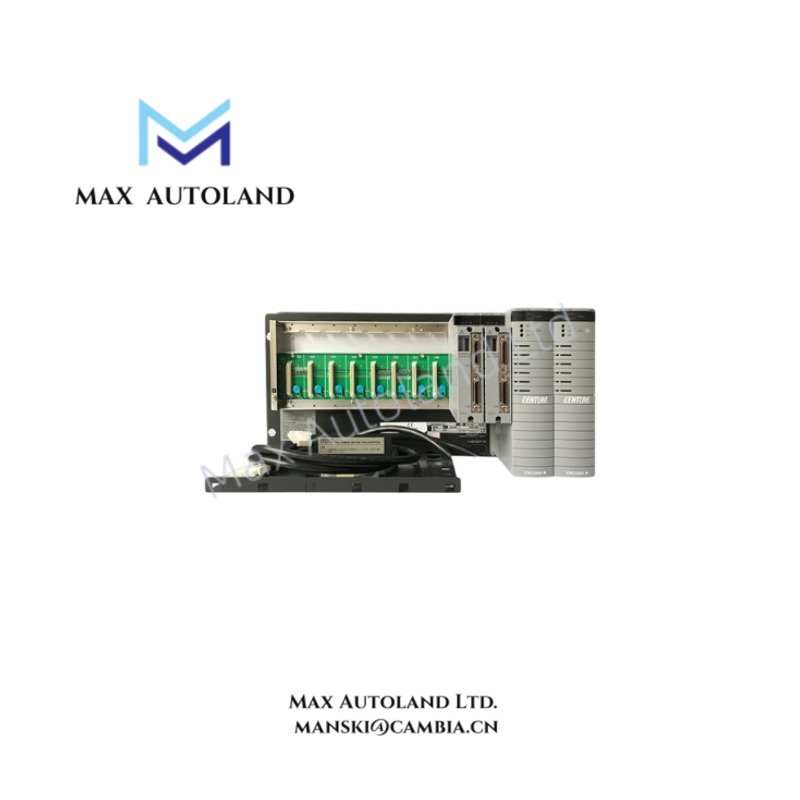

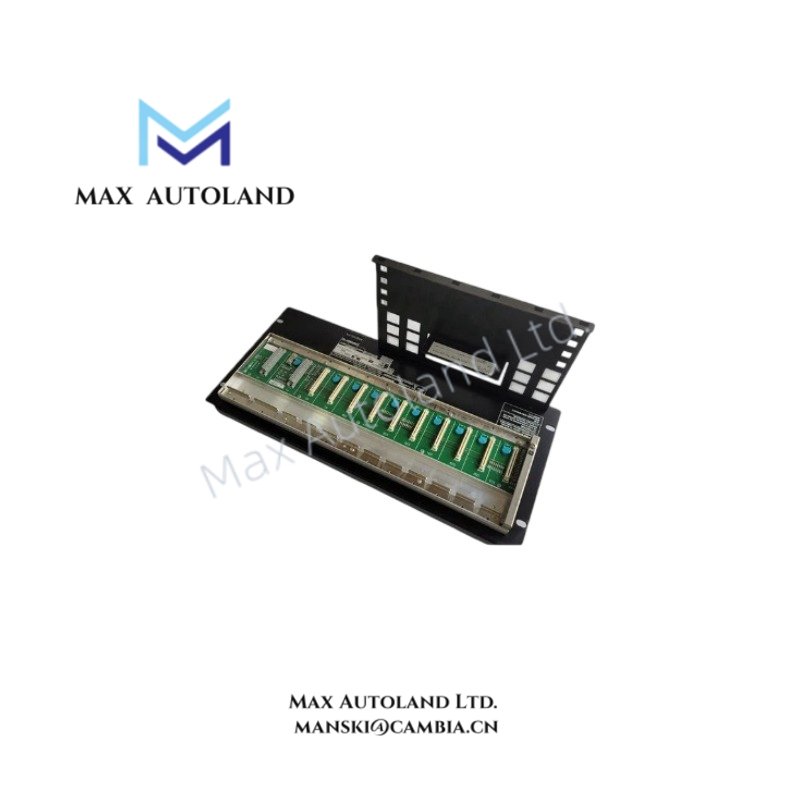

Yokogawa ANB10D-425 ESB Bus Node Unit

Suffix Breakdown & Model Matrix

No validated suffix segmentation data for ANB10D-425 is provided in the source material. The model is treated as a single ordering configuration identifier.

Hardware Specifications

Field Control Communication and Channel Architecture

The ESB Bus Node Unit implements field signal acquisition and distribution through ESB bus coupling to FCU backplane logic. In Yokogawa Vnet/IP architectures, node expansion is constrained by FCU database limits and node configuration packages. ESB bus coupling modules EC401 or EC402 are installed in FCU slot 7 and slot 8, with defined single-configuration slot mapping requiring one active coupling module and one empty slot.

Process Control I/O Channel Isolation Characteristics

In Yokogawa distributed control environments, ESB node architectures maintain channel-level separation between analog input/output and discrete contact signals across I/O modules. Signal integrity is preserved through backplane segregation of power distribution and communication framing, supporting stable 4-20 mA class instrumentation loops and field signal aggregation without direct CPU-side electrical exposure. ESB bus segmentation enforces deterministic cyclic data exchange between FCU and node-level module groups.

Frequently Asked Questions (FAQ)

Q: Can the ANB10D-425 support hot-swap of I/O modules?
A: Hot-swap capability depends on system configuration and FCU control logic. ESB bus architecture requires controlled module insertion with bus synchronization to prevent communication frame disruption.

Q: What is the function of EC401/EC402 coupling modules in FCU integration?
A: EC401 and EC402 modules provide ESB bus coupling between FCU and node units. They must be installed in slot 7 and slot 8 of the FCU for correct bus termination and communication alignment.

Q: Does the node unit provide power distribution to I/O modules?
A: Yes. The ESB Bus Node Unit includes integrated power supply distribution circuitry for connected I/O modules within the node assembly.

Field Installation Guidelines

The unit is installed in a standard 19-inch rack using M5 screw fixation points. Mechanical mounting requires secure grounding of the rack frame to maintain ESB bus shielding integrity.

ESB bus coupling must be implemented using EC401 or EC402 modules in FCU slot 7 configuration, with slot 8 reserved or configured according to single/dual coupling design rules. Incorrect slot allocation can interrupt ESB communication initialization.

Signal wiring must follow shield termination practices at the cabinet grounding bar, ensuring a single-point earth reference for analog and contact I/O wiring. Avoid parallel routing of ESB bus cables with high-voltage or high-noise conductors.

Power supply selection must match ordering suffix (100-120 VAC, 220-240 VAC, or 24 VDC). Inrush current and supply stability must be validated at cabinet level prior to commissioning.
