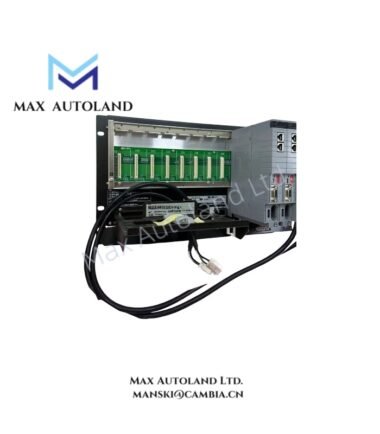

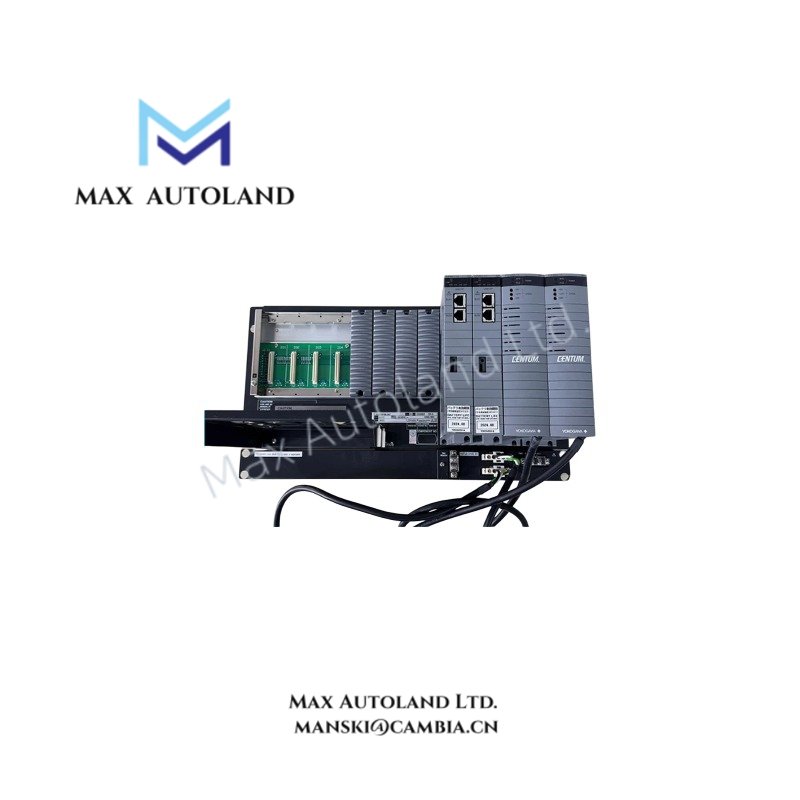

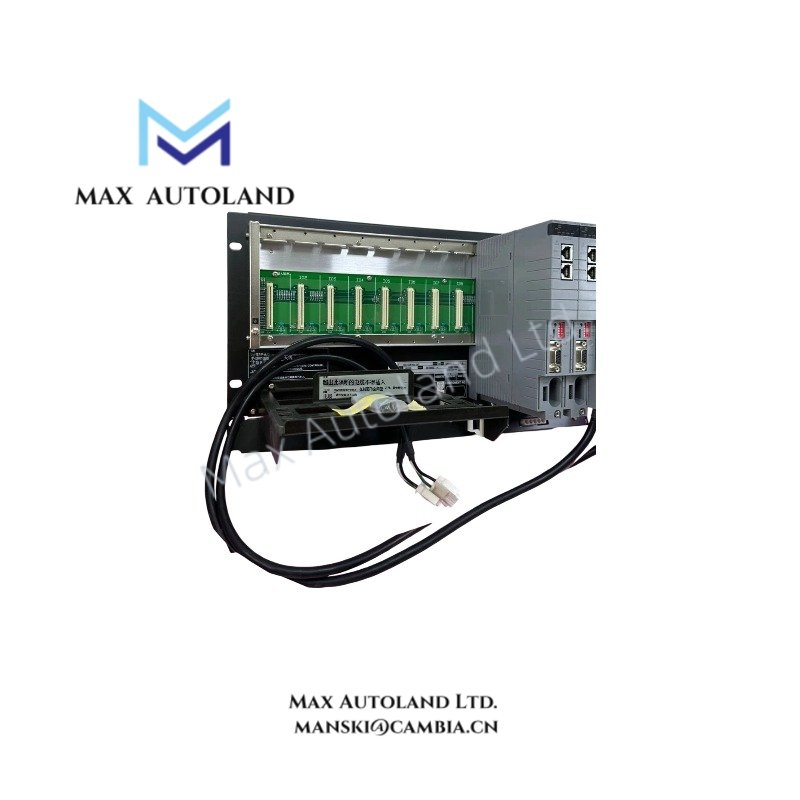

Yokogawa AFV30D-A41252 Field Control Unit

HardwareSpecifications

Yokogawa Process Control And Vnet/IP Field Execution Architecture

The Yokogawa AFV30D-A41252 implements redundant process data handling across Vnet/IP communication layers, where deterministic data exchange is maintained between field I/O modules and control processors. The system supports 4-20 mA analog loop integration and HART-compatible signal conditioning at the node level through FIO module architecture.

Channel-level separation within the FCU backplane architecture reduces cross-channel electrical coupling, ensuring stable acquisition of process variables under high-density I/O configurations. Battery-backed memory retention supports short-duration power loss scenarios, maintaining control state integrity for up to 72 hours.

Frequently Asked Questions

Q: Can the AFV30D-A41252 operate in fully redundant CPU configuration?
A: Yes. It supports dual-redundant CP461 or CP471 processor modules, requiring identical model pairing for synchronization and failover execution.

Q: What is the maximum ESB node expansion limit?
A: The FCU supports up to 13 ESB or optical ESB node units per controller frame.

Q: Does the unit support hot-swapping of I/O modules?
A: I/O modules are supported up to 8 slots; replacement is typically performed under controlled maintenance conditions depending on system configuration and redundancy state.

Field Installation Guidelines

The FCU shall be installed in a 19-inch industrial rack with proper grounding of the cabinet frame to a low-impedance earth reference. Shielded twisted-pair cables shall be used for Vnet/IP communication lines with single-point grounding of cable shields to prevent loop currents.

Maintain separation between power supply wiring and communication cables to minimize electromagnetic coupling. Redundant power supplies must be wired to independent circuit protection paths where applicable. Ensure minimum rear clearance for airflow to maintain thermal stability of processor and power modules.

Module insertion must be performed with power isolated unless redundancy configuration explicitly supports online replacement. Backplane connectors must be inspected for alignment before full seating.
