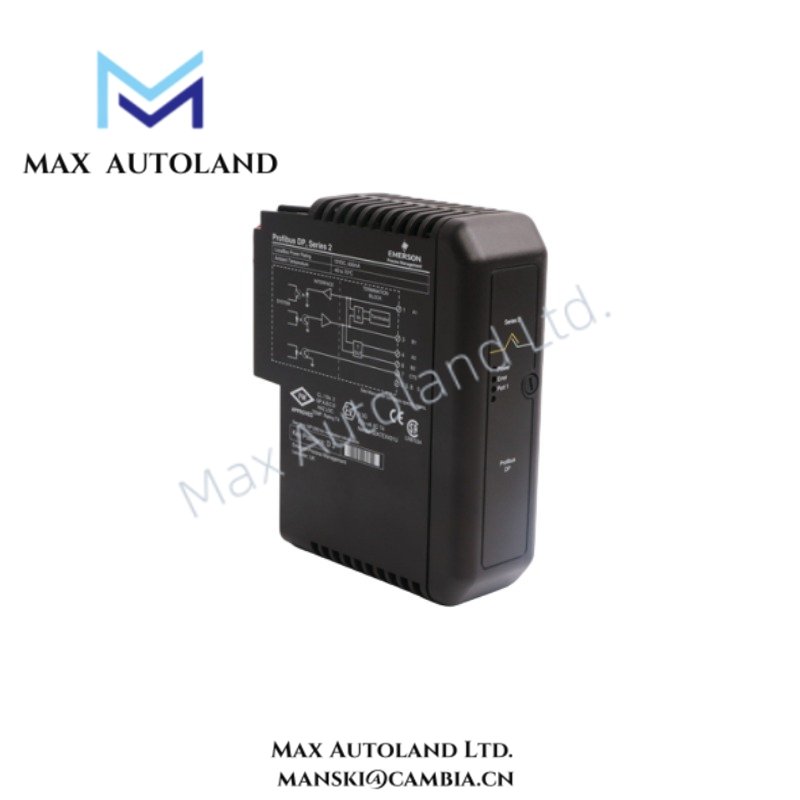

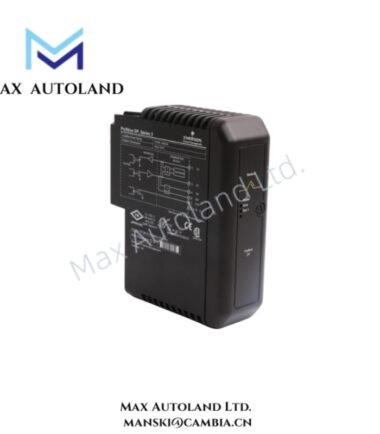

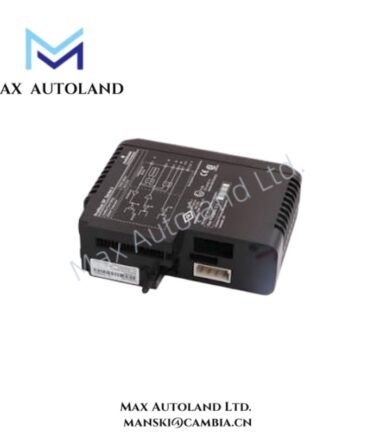

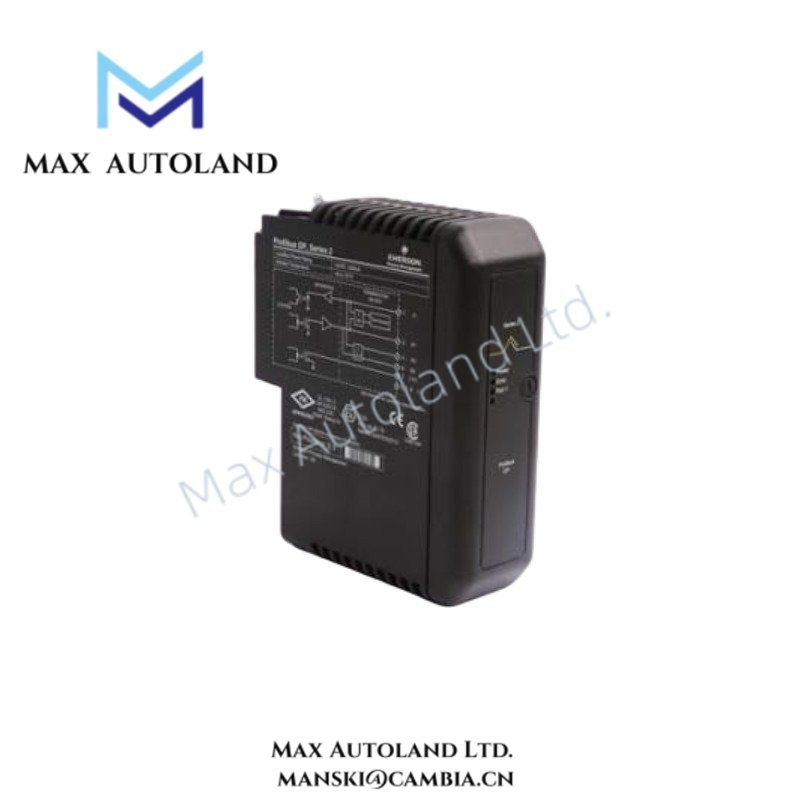

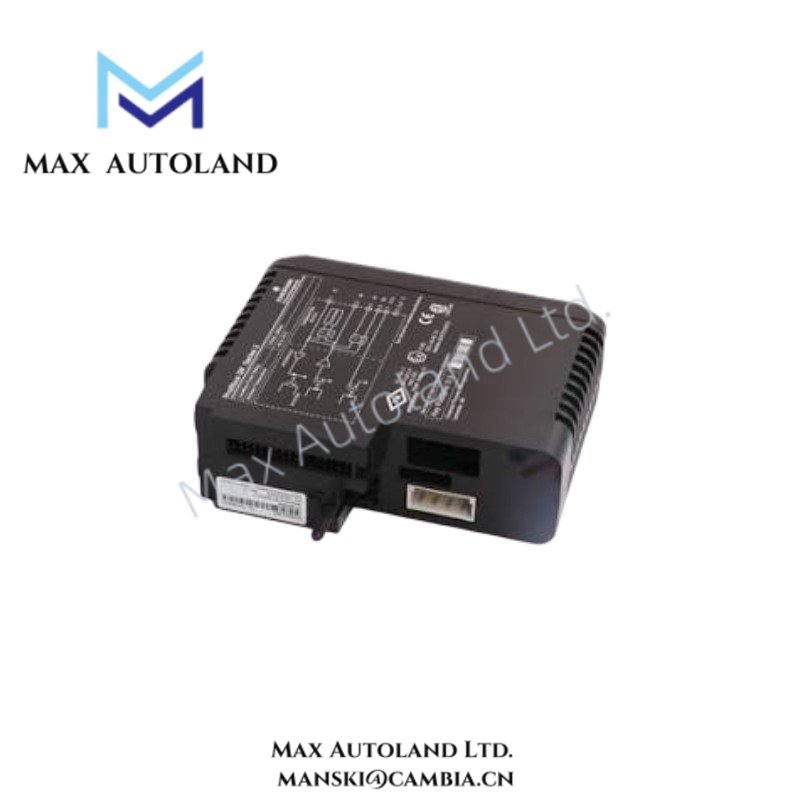

VE4014 Emerson Profibus DP Series 2 Interface Card

Hardware Specifications

Profibus DP Communication Characteristics

The VE4014 provides a dedicated Profibus DP interface for DeltaV Series 2 architecture. It exchanges cyclic process data between the DeltaV control environment and connected Profibus DP field devices.

The interface supports communication speeds up to 1200 kbps according to the supplied specifications. Therefore, network configuration should match the selected Profibus DP baud rate and connected-device requirements.

The M12 connector provides the physical field-network connection. Install the communication cable separately from high-current power conductors where practical to reduce electrical interference.

Frequently Asked Questions (FAQ)

Q: How many Profibus DP communication channels does the VE4014 provide?
A: The supplied specification identifies one Profibus DP communication channel.

Q: What communication protocol does the VE4014 support?
A: The module is specified for Profibus DP v2 communication.

Q: What are the specified operating temperature and humidity ranges?
A: The operating temperature range is -25 deg C to +60 deg C, with 5% to 95% RH non-condensing humidity.

Field Installation Guidelines

• Verify the VE4014 model and alternate part numbers against the DeltaV system configuration before installation.
• Install the card in the designated DeltaV Series 2 hardware position according to the applicable system documentation.
• Connect the Profibus network through the specified M12 interface.
• Route Profibus communication cables away from high-current switching and power conductors where possible.
• Maintain appropriate cable shielding and grounding practices according to the Profibus installation standard and site electrical design.
• Confirm bus termination and network topology before applying system power.
• Verify communication status after installation through the DeltaV engineering or diagnostic interface.
