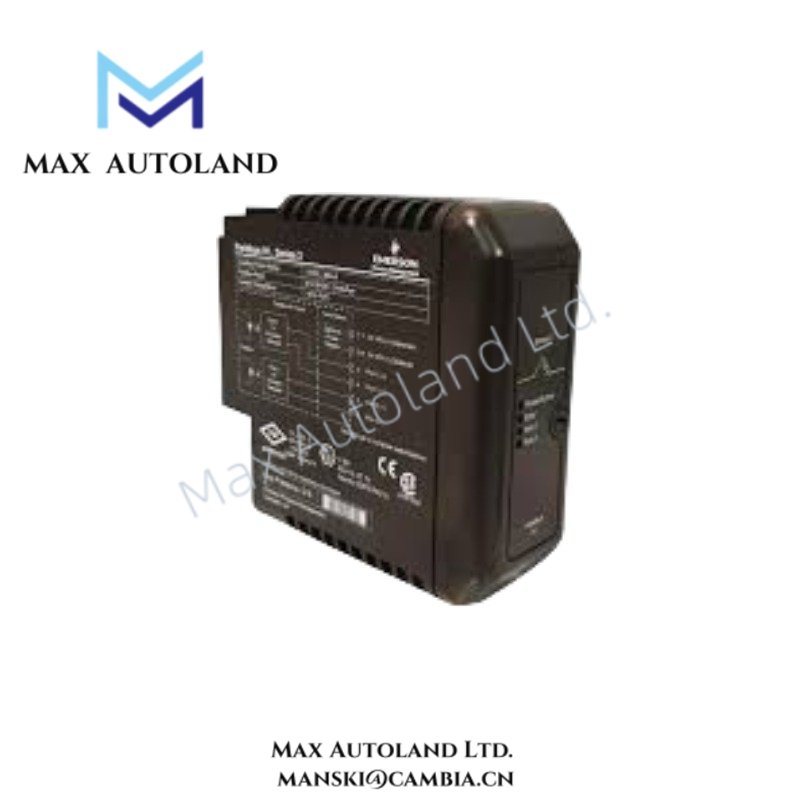

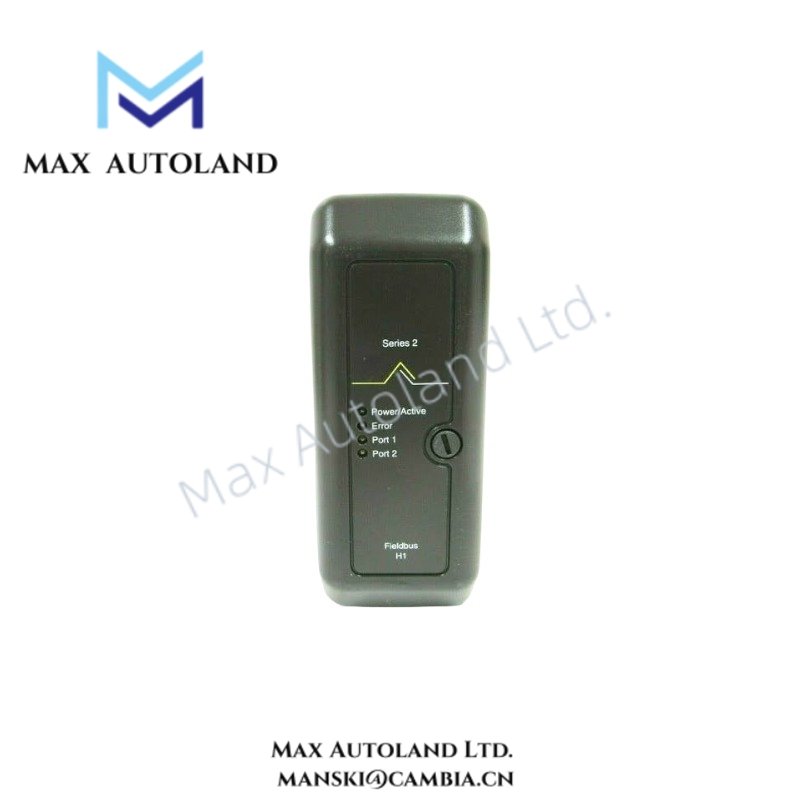

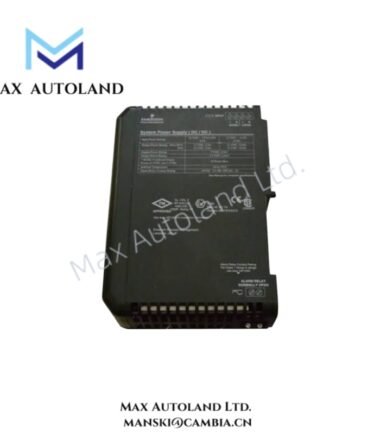

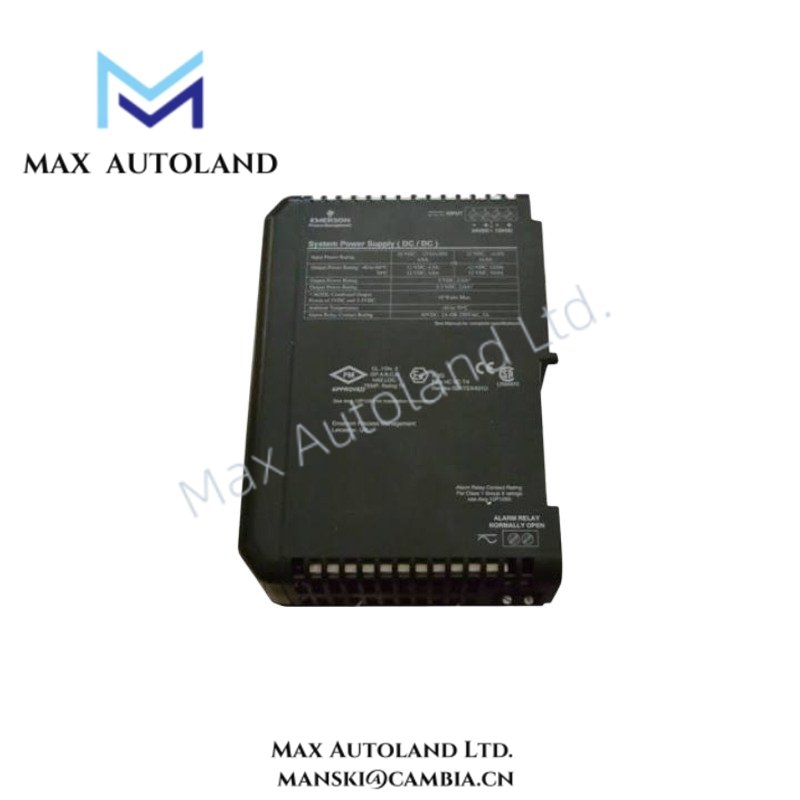

Emerson DeltaV VE4017P0 FOUNDATION Fieldbus H1 Interface Module

Hardware Specifications

FOUNDATION Fieldbus H1 Communication

The VE4017P0 provides two FOUNDATION Fieldbus H1 ports for communication with field instruments. Each port can support multiple devices according to the available fieldbus power budget.

The module can operate as a Link Active Scheduler (LAS), coordinating scheduled fieldbus communication between connected devices. In addition, digital communication carries process variables, configuration data, and device status information through the H1 network.

The module supports simplex operation and 1:1 hardware redundancy. In redundant configurations, the hardware performs automatic autosensing and supports module switchover without requiring manual selection.

For fieldbus installation, maintain proper cable shielding, polarity, termination, and segment power conditions. Furthermore, keep fieldbus wiring separated from high-voltage and high-current conductors to reduce electrical interference.

Frequently Asked Questions

Q: How many FOUNDATION Fieldbus H1 ports does the VE4017P0 provide?
A: The module provides two H1 ports. Each port can support up to 16 devices, subject to the available fieldbus power budget.

Q: Does the VE4017P0 support hardware redundancy?
A: Yes. The supplied specifications identify 1:1 hardware redundancy with automatic autosensing and switchover.

Q: What LocalBus supply does the module require?
A: The specified LocalBus supply is 12 VDC nominal at 300 mA maximum.

Field Installation Guidelines

• Install the module in the designated DeltaV M-Series carrier or compatible mounting position.
• Verify module orientation and mechanical engagement before energizing the system.
• Confirm that the LocalBus connection is correctly seated and free from contamination.
• Route FOUNDATION Fieldbus wiring separately from high-voltage and high-current cables.
• Maintain correct fieldbus polarity and connect the cable shield according to the site grounding design.
• Avoid unnecessary shield grounding points that can create ground-loop currents.
• Verify segment termination and fieldbus power conditions before connecting multiple field devices.
• For redundant installations, verify both module positions and the associated communication paths before commissioning.
• Do not exceed the specified environmental limits of -40 deg C to +70 deg C during operation.
• Confirm network communication and device status after installation before placing the control loop into service.
