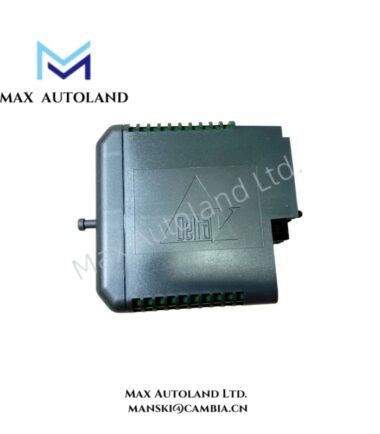

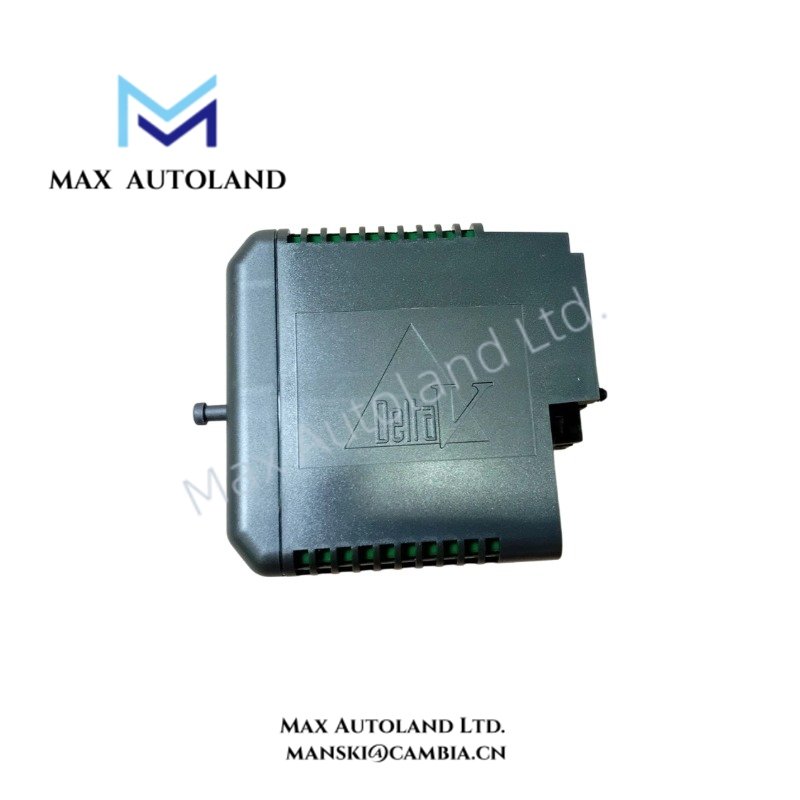

VE4003S6B1 Emerson Analog Input Module

Hardware Specifications

4-20 mA HART Process Signal Interface

The Emerson VE4003S6B1 is designed for process instrumentation signal integration within DeltaV control architectures. It supports analog input measurement functions where field transmitters provide continuous current loop signals.

The module architecture follows Emerson DeltaV I/O design practices, including channel-level signal processing and system communication through the DeltaV I/O subsystem. Additionally, Emerson process I/O modules can support functions such as 4-20 mA HART loop protocol handling, channel-to-channel isolation, and transmitter diagnostic data exchange when applicable to the installed hardware configuration.

Signal wiring should maintain proper shielding and grounding practices to reduce electrical interference during analog measurement. Therefore, field cable routing should avoid parallel installation with high-voltage power conductors.

Frequently Asked Questions

Q: Does the VE4003S6B1 support hot-swap replacement during DeltaV operation?
A: Hot-swap capability depends on the installed DeltaV hardware architecture, controller configuration, and system revision. Verify the specific I/O subsystem rules before module replacement.

Q: What field signal types can the VE4003S6B1 process?
A: The VE4003S6B1 is categorized as an analog input module. The supported signal range and transmitter compatibility depend on the DeltaV I/O configuration and associated terminal components.

Q: Does the module require separate field power wiring?
A: The module receives system power through the DeltaV I/O infrastructure. Field device power requirements depend on the connected transmitter loop design.

Field Installation Guidelines

• Install the VE4003S6B1 module only within the specified Emerson DeltaV I/O carrier and cabinet assembly.
• Confirm module addressing, controller assignment, and I/O database configuration before commissioning.
• Use shielded instrumentation cables for analog signal wiring where required by the installation environment.
• Connect cable shields according to site grounding standards to minimize electromagnetic interference.
• Separate low-level analog wiring from motor cables, switching power lines, and high-current conductors.
• Inspect terminal block connections for correct polarity and secure mechanical engagement before system startup.
• Verify firmware compatibility between the module, controller, and DeltaV system software revision before replacement activities.
