Overview

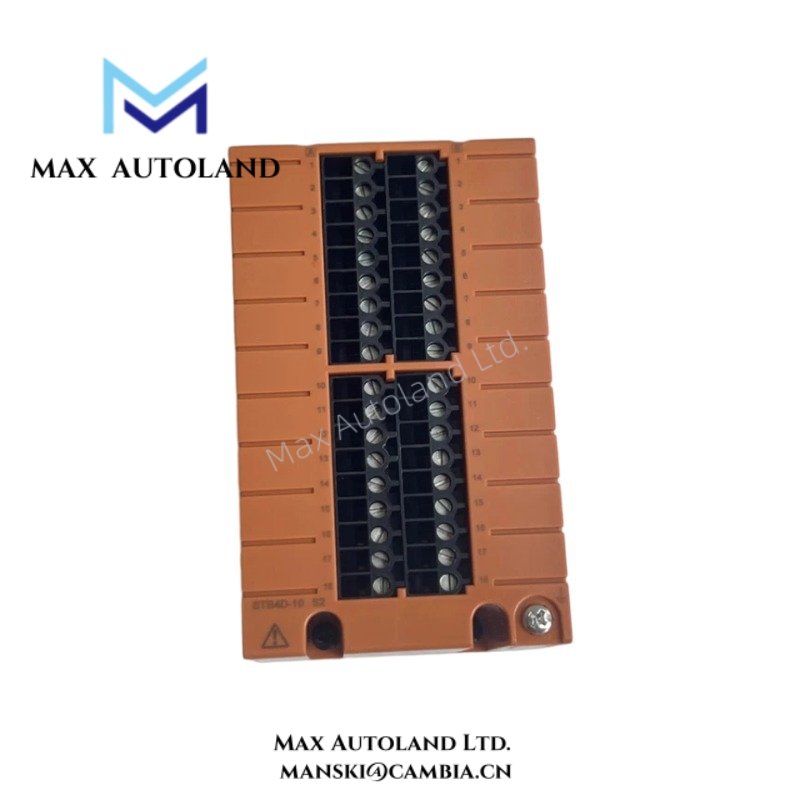

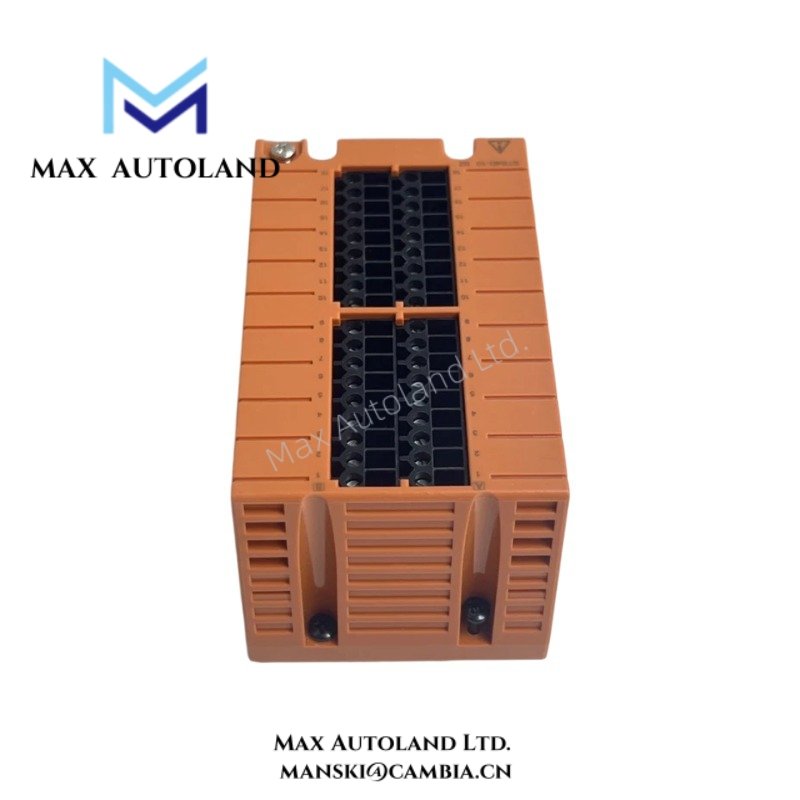

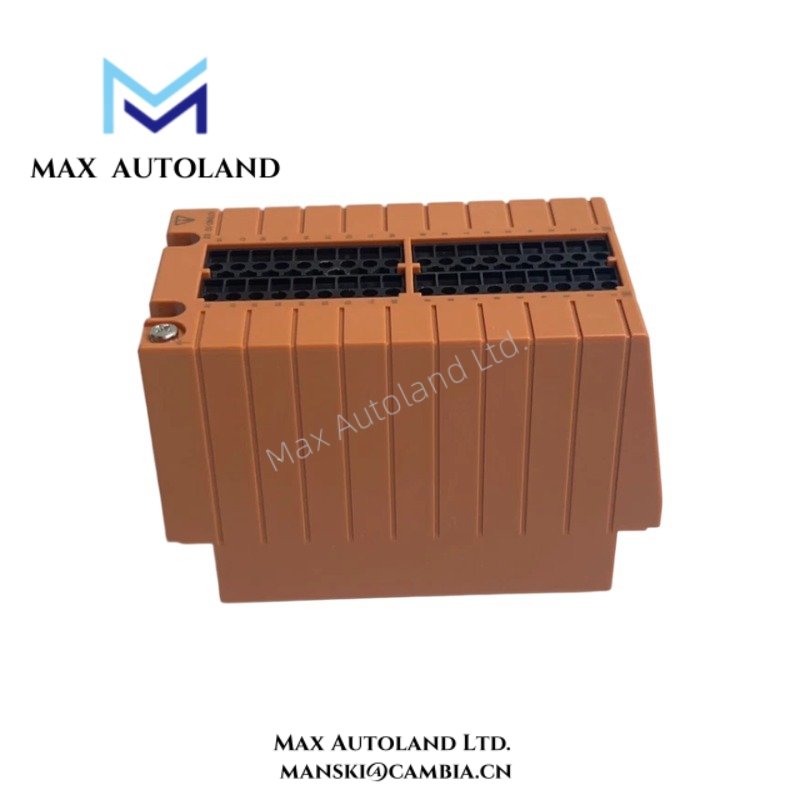

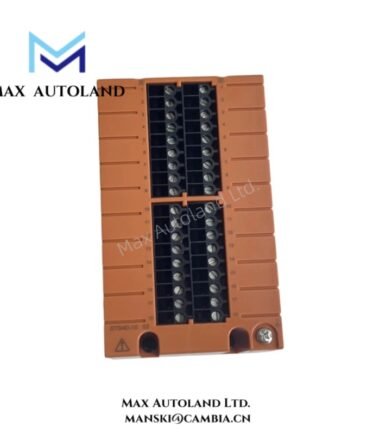

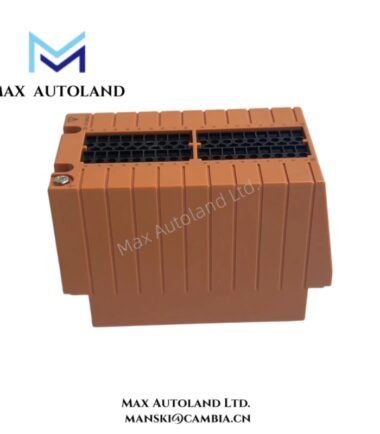

STB4D-10 from Yokogawa Electric Corporation provides secure and efficient field wiring for CENTUM distributed control systems.
Moreover, this terminal block enhances signal stability through reliable pressure clamp connection technology.
Therefore, engineers achieve consistent electrical performance across complex industrial control environments.
Additionally, the module integrates smoothly into Yokogawa terminal assemblies and cabinet structures.
Specification
| Parameter | Specification |
|---|---|
| Model | STB4D-10 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Pressure Clamp Terminal Block |
| Compatible Systems | CENTUM CS / CENTUM VP / CENTUM XL |
| Connection Method | Pressure clamp (spring clamp) |
| Number of Terminals | 16 to 32 channels (depending on configuration) |
| Rated Voltage | Up to 250 VAC |
| Rated Current | Approx. 2 A to 5 A per channel |
| Wire Size Range | 0.2 to 2.5 mm² |
| Mounting Method | Panel-mounted or integrated terminal assembly |
| Insulation Resistance | High insulation resistance for stable signal transmission |
| Withstand Voltage | Meets industrial insulation standards |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | Approx. 150 × 50 × 200 mm |
| Weight | Approx. 0.4 kg |
| Material | Flame-retardant industrial-grade housing |
| Redundancy Support | Supports dual-redundant signal wiring configurations |
| Application Environment | Industrial control cabinets |
FAQ
A1: Yes, STB4D-10 is 100% brand new and original from Yokogawa Electric Corporation.
Q2: Do you have STB4D-10 in stock?
A2: Yes, we keep STB4D-10 in stock and ready for immediate shipment.
Q3: How fast can you ship after placing an order?
A3: We ship STB4D-10 within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you use?
A4: We commonly use DHL, FedEx, and UPS for reliable and fast delivery.
Q5: What wire sizes does STB4D-10 support?
A5: STB4D-10 supports wire sizes from 0.2 mm² to 2.5 mm² for flexible wiring applications.
Q6: What should I do if the product has a quality issue?
A6: We support returns within 30 days if STB4D-10 shows any quality problems.
