Overview
Specification
| Parameter | Specification |
|---|---|

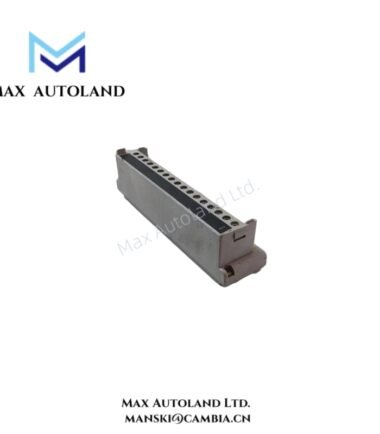

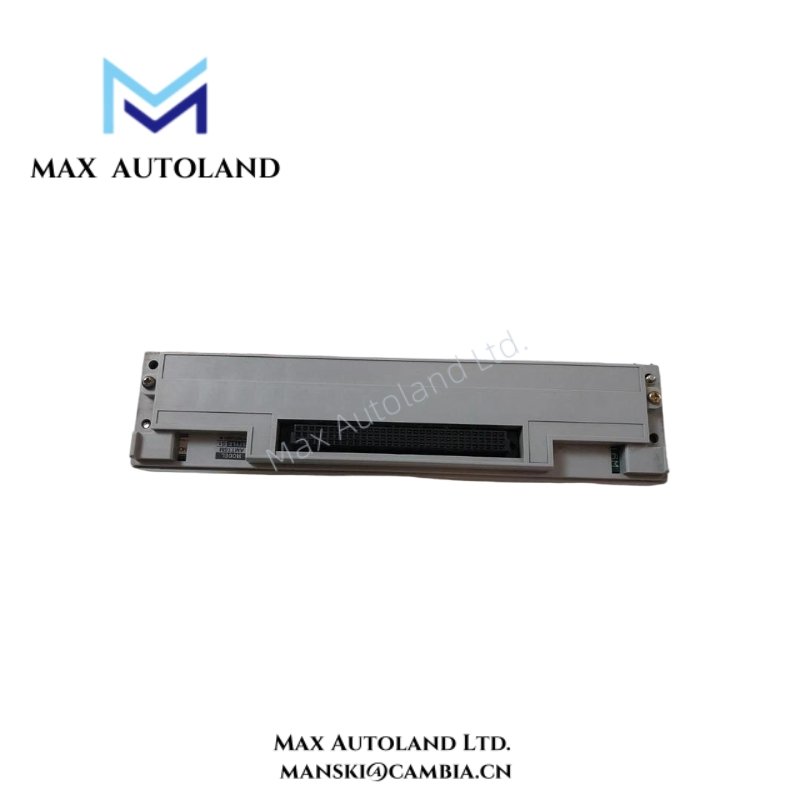

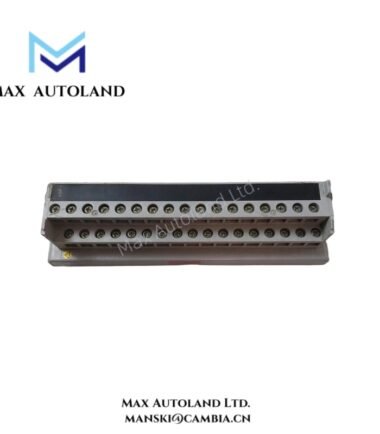

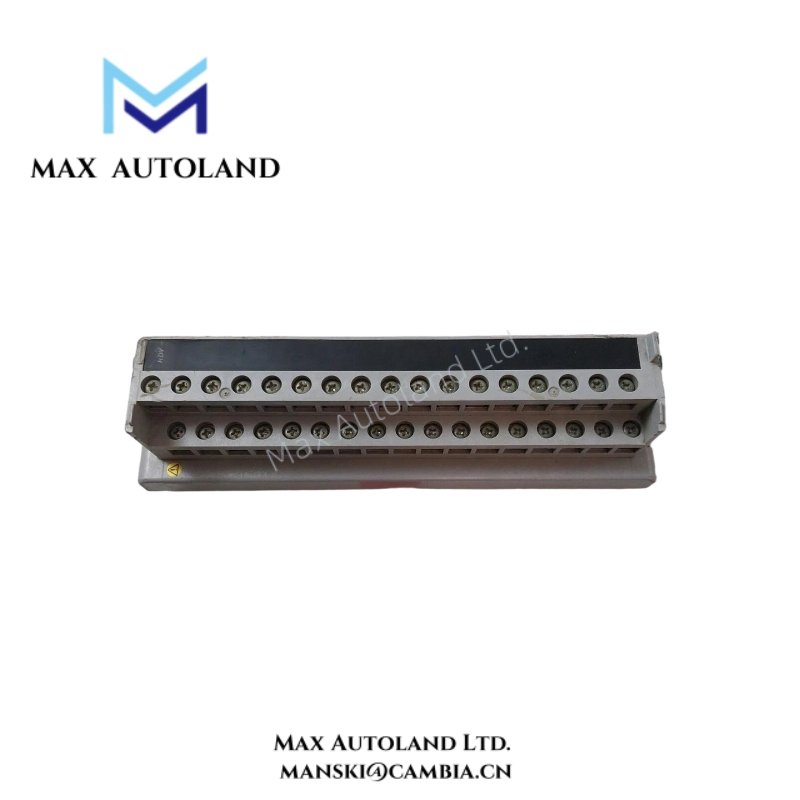

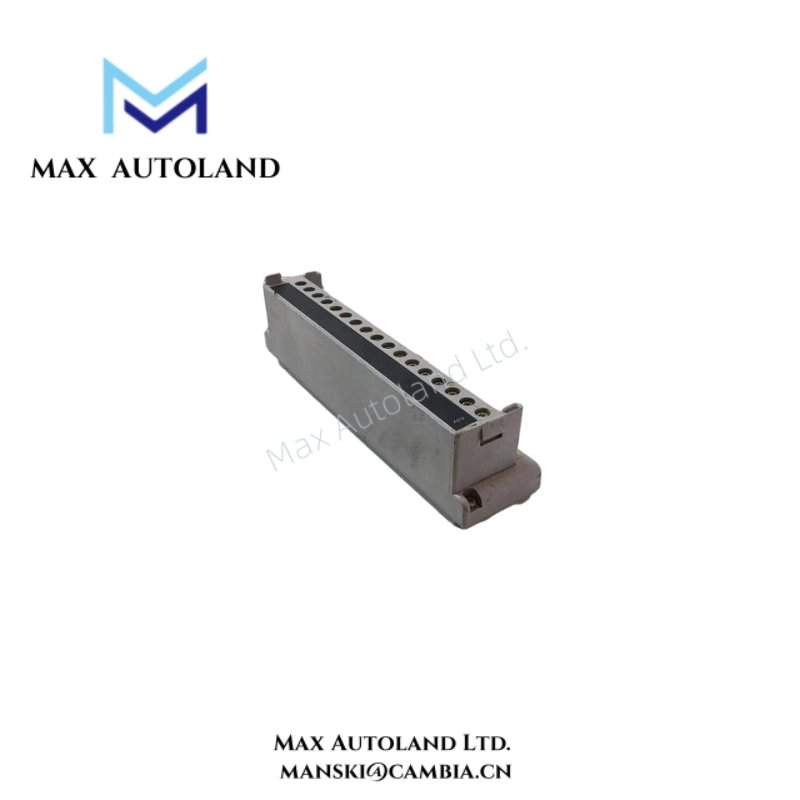

| Model | AMT16M-S1 / AMT16M-S2 |
| Module Type | Transmitter Terminal Block |
| Input/Output Channels | Multiple analog and digital channels |
| Communication Protocol | HART compatible |
| Mounting | DIN-rail or panel mounting |
| Rated Voltage | 250 V AC/DC maximum |
| Rated Current | 5 A per terminal maximum |
| Insulation Material | Industrial-grade high-strength plastic |
| Contact Material | Tin-plated copper alloy |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Dielectric Strength | 2 kV AC, 50/60 Hz for 1 minute |
| Dimensions (W × H × D) | 16 mm × 100 mm × 110 mm (verify exact model) |
| Weight | Approx. 120 g per module |
| Approvals / Standards | CE, IEC compliance for industrial use |
| Additional Features | Removable jumpers, modular stacking, signal isolation |
FAQ
A1: Yes, it is designed for versatile use with both analog and digital field signals.Q2: Is HART communication supported?
A2: Yes, it supports HART communication for precise monitoring and diagnostics.
Q3: Can this terminal block be used with Yokogawa RIO systems?
A3: Absolutely, it integrates seamlessly with RIO and N-IO systems for flexible installation.
Q4: What installation options are available?
A4: The terminal block supports DIN-rail and panel mounting configurations.
