Overview

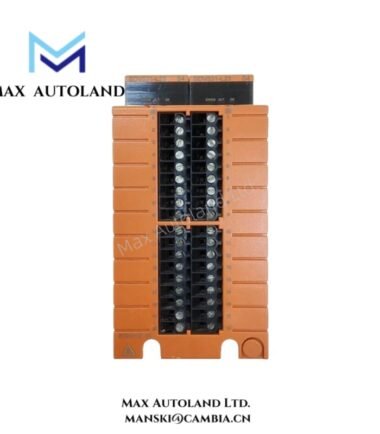

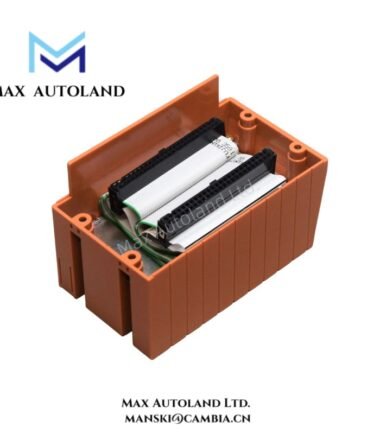

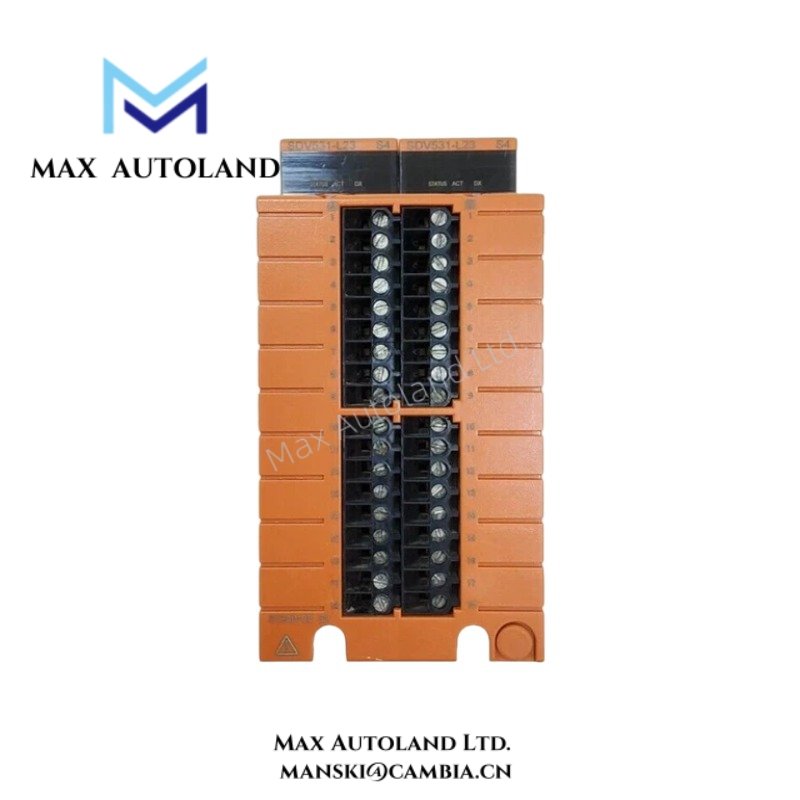

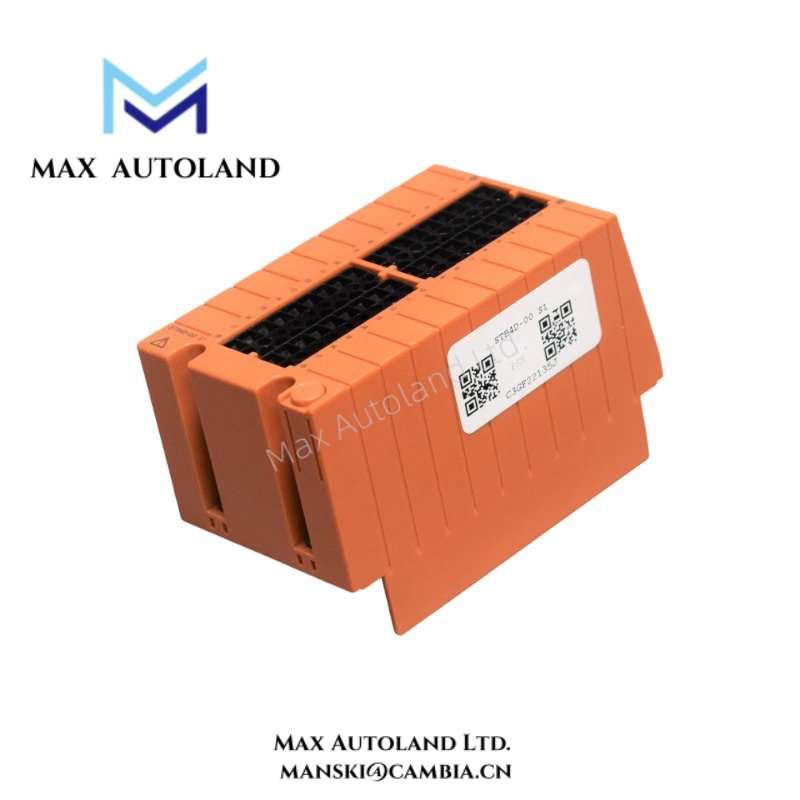

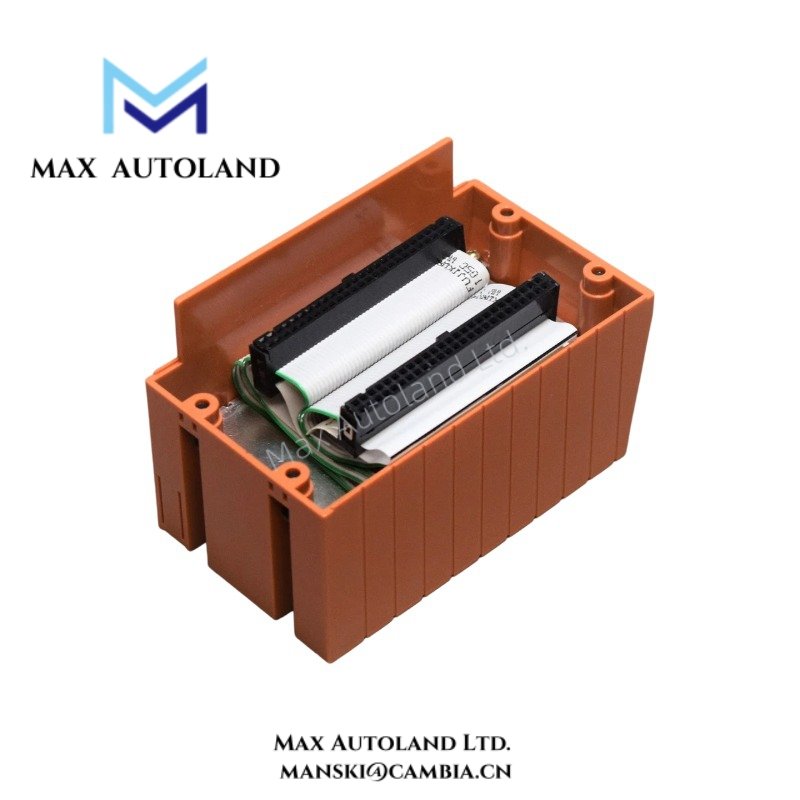

STB4D-00 from Yokogawa Electric Corporation provides secure and organized field wiring for CENTUM control systems.
Moreover, this pressure clamp terminal block supports stable signal termination with high-density connection capability.
Therefore, engineers achieve reliable wiring performance in demanding industrial automation environments.
Additionally, the module integrates efficiently into Yokogawa system cabinets and terminal assemblies.
Specification
| Parameter | Specification |
|---|---|
| Model | STB4D-00 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Pressure Clamp Terminal Block |
| Compatible Systems | CENTUM CS / CENTUM VP / CENTUM XL |
| Connection Method | Pressure clamp (spring clamp) |
| Number of Terminals | 16 to 32 points (depending on configuration) |
| Rated Voltage | Up to 250 VAC |
| Rated Current | Approx. 2 A to 5 A per channel |
| Wire Size Range | 0.2 to 2.5 mm² |
| Mounting Method | Panel or rack-mounted terminal assembly |
| Insulation Resistance | High insulation resistance for signal integrity |
| Withstand Voltage | Designed for industrial insulation standards |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions | Approx. 150 × 50 × 200 mm |
| Weight | Approx. 0.4 kg |
| Material | Flame-retardant industrial-grade plastic |
| Redundancy Support | Yes, supports dual-redundant signal wiring |
| Application Environment | Industrial control cabinets |
FAQ
Q1: Is the STB4D-00 terminal block original and new?
A1: Yes, STB4D-00 is 100% brand new and original from Yokogawa Electric Corporation.
Q2: Do you have STB4D-00 in stock?
A2: Yes, we keep STB4D-00 in stock and ready for immediate shipment.
Q3: How fast can you ship after placing an order?
A3: We ship STB4D-00 within 3 days to 2 weeks depending on order quantity.
Q4: Which logistics services do you use?
A4: We commonly use DHL, FedEx, and UPS for reliable and fast delivery.
Q5: What wire sizes does STB4D-00 support?
A5: STB4D-00 supports wire sizes from 0.2 mm² to 2.5 mm² for flexible wiring options.
Q6: What should I do if the product has a quality issue?
A6: We support returns within 30 days if STB4D-00 shows any quality problems.
