Overview

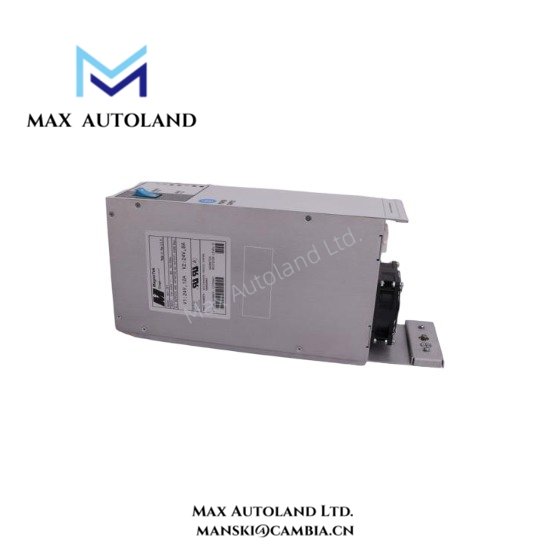

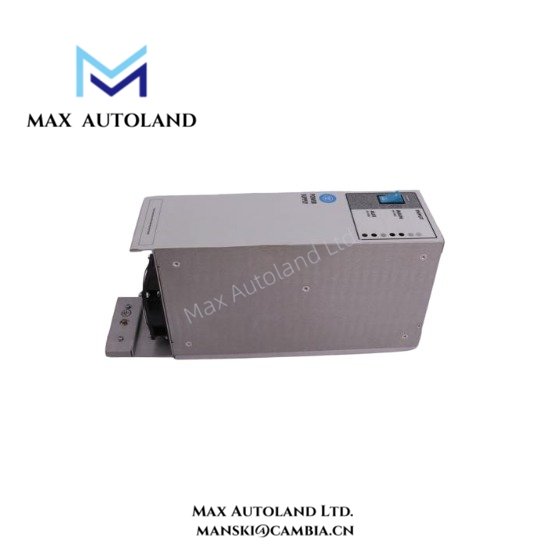

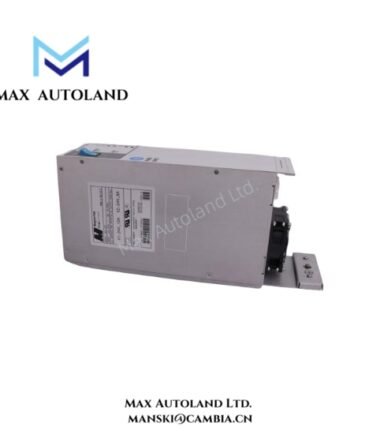

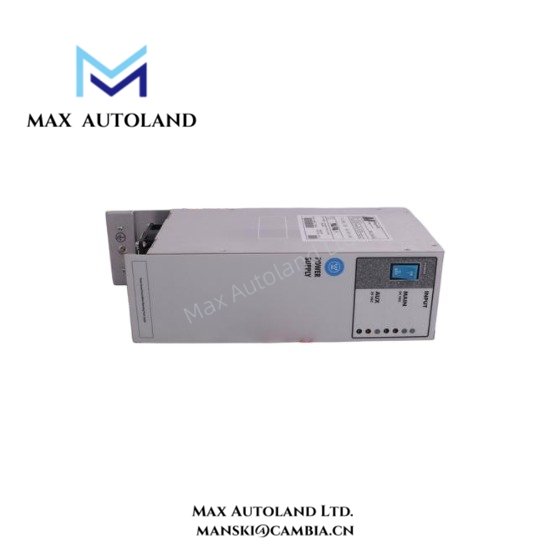

The 1X00024H01 from Emerson provides stable and efficient power delivery for Ovation distributed control systems.
Moreover, this module regulates input voltage precisely and ensures continuous operation across demanding industrial environments.
As a result, it supports critical automation processes while maintaining consistent electrical performance under varying load conditions.
In addition, Emerson engineers design the Ovation series to simplify installation and improve long-term operational reliability.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | 1X00024H01 |
| Manufacturer | Emerson |
| Series | Ovation DCS |
| Module Type | Power Supply Module |
| Input Voltage Range | 85–264 VAC or 120–300 VDC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 VDC regulated output |
| Output Current | Up to 10 A (typical configuration) |
| Output Power | Approx. 240 W |
| Efficiency | ≥90% under nominal load |
| Voltage Regulation | ±1% output stability |
| Ripple and Noise | ≤50 mV peak-to-peak |
| Energy Storage | Internal capacitors for short-term hold-up |
| Hold-up Time | ≥20 ms at full load |
| Protection Features | Overvoltage, overcurrent, and short-circuit protection |
| Cooling Method | Natural convection cooling |
| Interface Type | Backplane connection for Ovation rack |
| Redundancy Support | Supports parallel operation for redundancy |
| Status Indicators | LED indicators for power and fault status |
| Mounting Type | Rack-mounted module |
| Dimensions | 160 mm × 120 mm × 80 mm |
| Weight | Approximately 1.2 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Insulation Rating | Industrial-grade insulation design |
| EMC Compliance | IEC 61000 standards |
| Protection Level | IP20 (cabinet installation) |
FAQ
Q1: Is the product new and original?
Yes, the 1X00024H01 is 100% brand new and original from Emerson.
Q2: Do you have stock available?
Yes, we keep stock for the 1X00024H01, and availability depends on order quantity.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks, depending on order size and logistics arrangements.
Q4: Which courier services do you use?
We commonly use DHL and other major logistics providers for fast and reliable delivery worldwide.
Q5: What output voltage does this module provide?
The 1X00024H01 provides a stable 24 VDC regulated output for Ovation system components.
