Overview

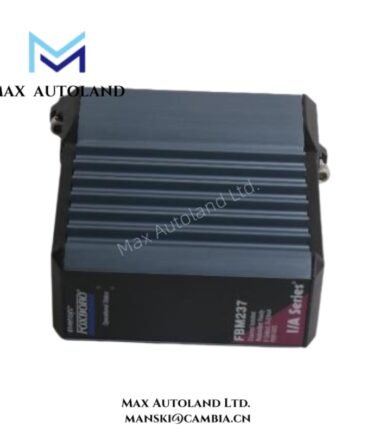

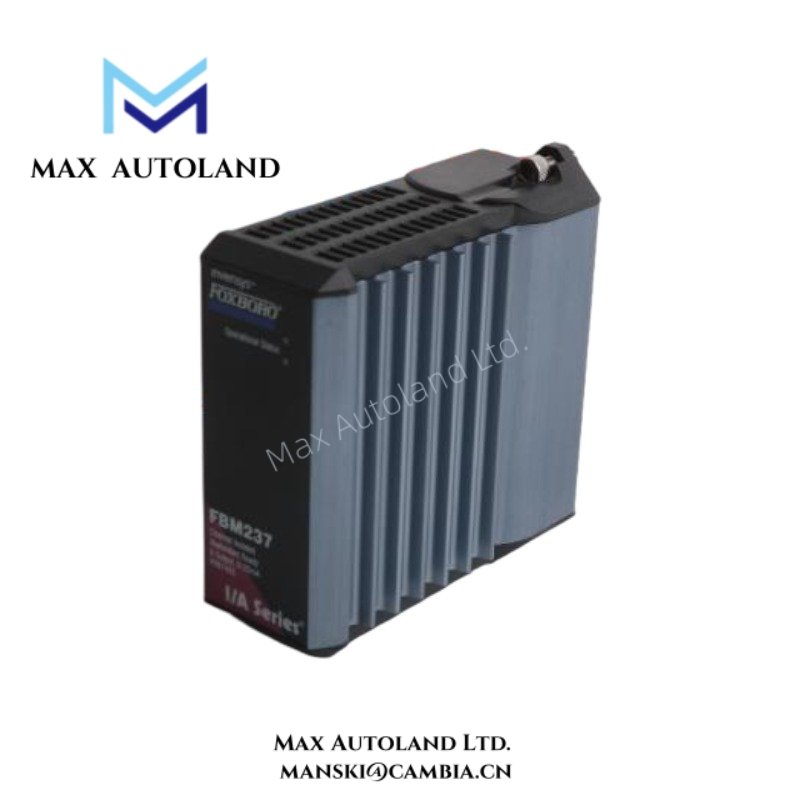

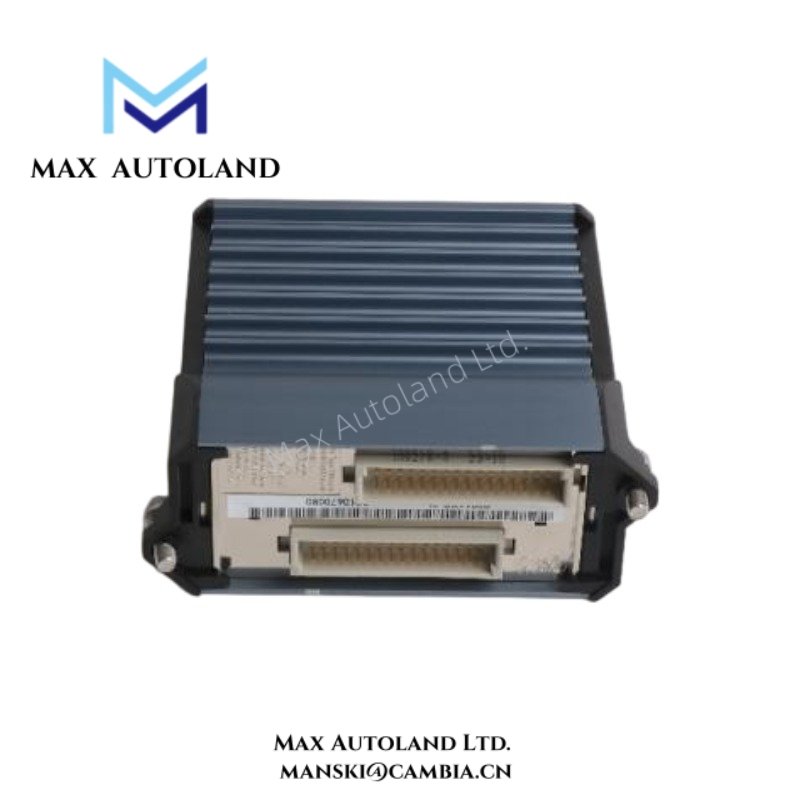

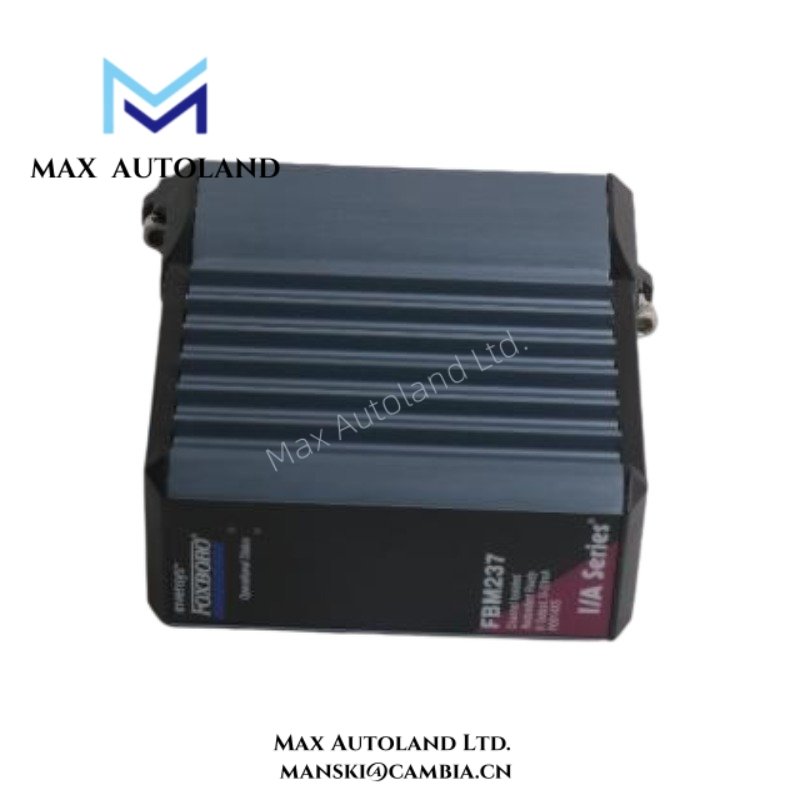

The FBM237 output interface module delivers precise analog output control for Foxboro I/A Series automation systems.
It generates stable 0 to 20 mA signals while maintaining accurate and consistent performance in industrial environments.
Moreover, FBM237 integrates with Foxboro modular baseplates, which simplifies installation and supports flexible system expansion.
Its compact structure improves cabinet efficiency while ensuring reliable operation in continuous process control applications.
Specification
| Parameter | Specification |
|---|---|
| Model | FBM237 |
| Manufacturer | Foxboro (Schneider Electric) |
| Series | I/A Series 200 |
| Module Type | Analog Output Interface Module |
| Output Channels | 8 channels |
| Output Signal Range | 0 to 20 mA |
| Output Type | Current output |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply | Baseplate powered |
| Mounting (Module) | Modular baseplate (DIN rail or 19-inch rack) |
| Mounting (TA) | DIN rail (32 mm and 35 mm supported) |
| Redundancy Support | Adjacent slot redundancy with adapter |
| Weight (Module) | Approx. 284 g (10 oz) |
| Weight (TA Compression) | Approx. 181 g (0.40 lb) |
| Weight (TA Ring Lug) | Approx. 249 g (0.55 lb) |
| Dimensions (Height) | 102 mm (4 in), 114 mm (4.5 in with lugs) |
| Dimensions (Width) | 45 mm (1.75 in) |
| Dimensions (Depth) | 104 mm (4.11 in) |
| Cable Length | Up to 30 m (98 ft) |
| Cable Material | Polyurethane or LSZH |
| Cable Type | Type 1 termination cable |
| Cable Connector | 25-pin male D-subminiature |
| TA Construction Material | Polyamide (PA), compression |
| Terminal Blocks | 3 tiers, 8 output positions |
| Output Bypass Jacks | 8 positions |
| Wiring Type | Compression terminal |
| Wiring Size (Solid/Stranded) | 0.2 to 4 mm² / 24 to 12 AWG |
| Wiring Size (Ferrules) | 0.2 to 2.5 mm² with or without collar |
| Module Part Number | RH914XS |
| Redundancy Adapter | RH916QD |
FAQ
The FBM237 supports 0 to 20 mA analog output signals for industrial control devices.
Q2: How many output channels are available?
The FBM237 provides eight independent output channels for multi-device control applications.
Q3: Does FBM237 support redundancy?
Yes, the FBM237 supports redundant configuration using adjacent slots and a redundancy adapter.
Q4: What is the delivery and stock status?
This product is brand new and original, and we keep stock available for immediate shipment.
Q5: How fast can shipping be arranged?
We usually ship within 3 days to 2 weeks, depending on order size and logistics such as DHL.
Q6: What happens if there is a quality issue?
We support returns within 30 days if any quality issue appears after delivery.
