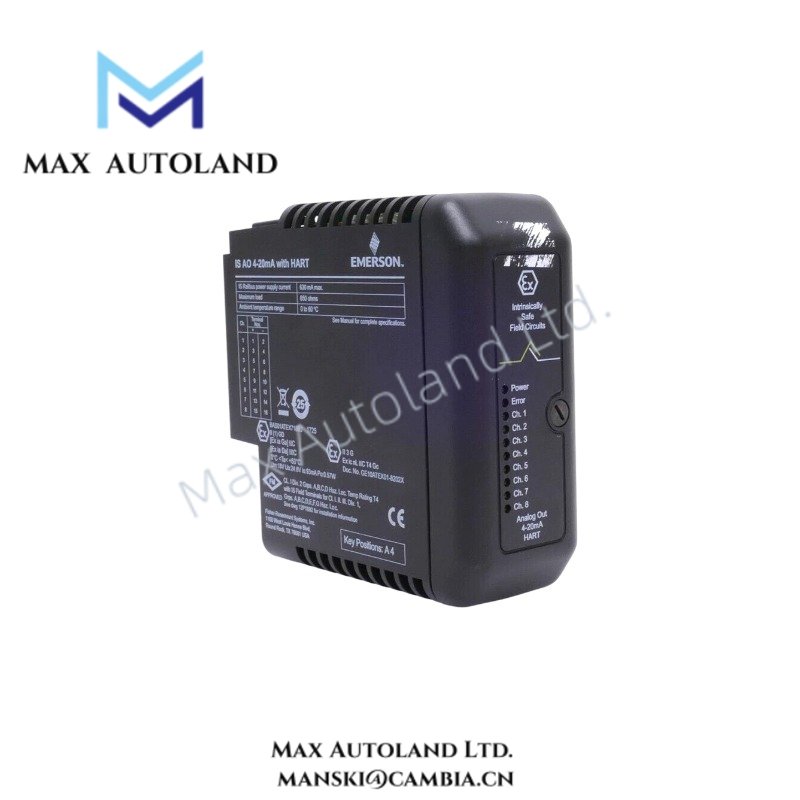

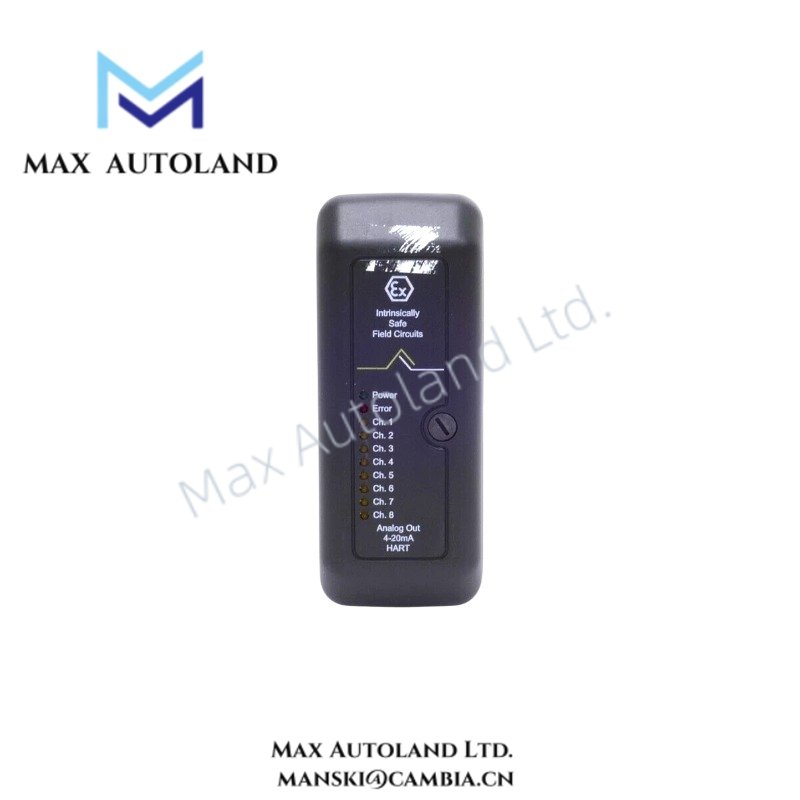

KJ3102X1-BE1 Emerson VE4013S2B1 Analog Output Module

Hardware Specifications

The supplied specifications identify four analog output channels and a 0-20 mA current range. A separate technical listing reports approximately 4.8 W power consumption. (Xiongba Automation)

Emerson DeltaV Analog Signal Characteristics

The module generates analog current signals for downstream process-control equipment. Each output channel provides a continuous current value within the specified 0-20 mA range.

For loop integration, engineers should verify the connected actuator or final control element requirements before commissioning. In particular, check loop polarity, field wiring, load characteristics, and the configured output range.

The supplied operating-temperature information gives -20 deg C to +60 deg C. However, another published listing for the KJ3102X1-BE1 identifies a broader -40 deg C to +70 deg C ambient range. Therefore, the applicable temperature limit should be verified against the exact hardware revision and Emerson documentation before installation. (Spare Center)

Frequently Asked Questions

Q: How many analog output channels does the KJ3102X1-BE1 provide?
A: The supplied specification identifies 4 analog output channels.

Q: What output signal range is specified for this module?
A: The supplied data specifies a 0-20 mA analog current output range.

Q: Can the module be removed while system power remains energized?
A: A published KJ3102X1-BE1 specification states that removal and insertion require system power to be de-energized. Field power must also be removed before disconnecting or connecting the device. (Spare Center)

Field Installation Guidelines

1. Confirm the module identification and installed DeltaV carrier position before wiring.
2. De-energize the applicable system and field power before removing or installing the module.
3. Verify analog loop polarity before connecting field conductors.
4. Route analog signal wiring separately from high-voltage and high-current conductors where practical.
5. Use appropriate shielded instrumentation cable where the installation requires additional noise control.
6. Terminate cable shields according to the plant grounding standard and the applicable DeltaV installation documentation.
7. Verify the configured output range against the connected field device before placing the loop into service.
8. Perform an output loop check after installation and confirm the expected current response at the receiving device.
