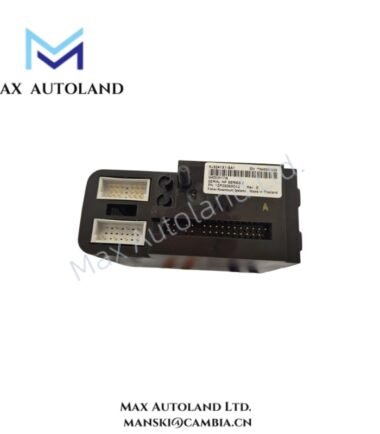

Emerson KJ3212X1-BK1 DeltaV S-Series Pulse Count Input Card

Suffix Breakdown & Model Matrix

The supplied documentation identifies KJ3212X1-BK1 as a fixed product designation. It does not provide a documented breakdown of the individual suffix characters; therefore, no suffix interpretation is assigned here.

Hardware Specifications

DeltaV Pulse Signal Interface

The KJ3212X1-BK1 processes pulse signals from field instruments that represent discrete events or measured process quantities. For example, flow meters and turbine meters can generate pulse trains proportional to process flow.

The card uses 12 VDC at 150 mA from the local bus and provides 24 VDC at 150 mA through bussed field power. Each field circuit specifies 24 VDC at 25 mA per channel. Therefore, installation personnel should verify the field-device electrical interface and channel loading before commissioning.

The specified environmental ratings support operation from -40 deg C to +70 deg C. In addition, the module tolerates 5% to 95% non-condensing relative humidity and airborne contaminants corresponding to ISA-S71.04-1985 Class G3.

Frequently Asked Questions

Q: What type of field signal does the KJ3212X1-BK1 process?
A: It processes pulse signals and counts discrete pulse events from compatible field devices such as flow meters and turbine meters.

Q: What power does the card require from the local bus?
A: The specified local bus requirement is 12 VDC at 150 mA.

Q: What environmental temperature range does the card support?
A: The specified operating temperature range is -40 deg C to +70 deg C.

Field Installation Guidelines

• Install the card in the designated DeltaV S-Series I/O carrier or compatible mounting position.
• Confirm that the field device provides an electrically compatible pulse signal before wiring.
• Verify field polarity and supply requirements against the approved system wiring documentation.
• Route pulse signal wiring separately from high-voltage power conductors and high-current switching circuits.
• Use shielded signal cable where the installation environment presents significant electrical noise.
• Terminate cable shields according to the plant grounding and DeltaV installation standards. Avoid creating unintended ground loops.
• Confirm the 24 VDC field circuit loading before connecting multiple field devices.
• Check the local bus power budget before commissioning the I/O assembly.
• Inspect terminal connections for correct conductor placement and secure mechanical termination.
• After installation, verify pulse detection and counting behavior using the approved DeltaV commissioning procedure.
