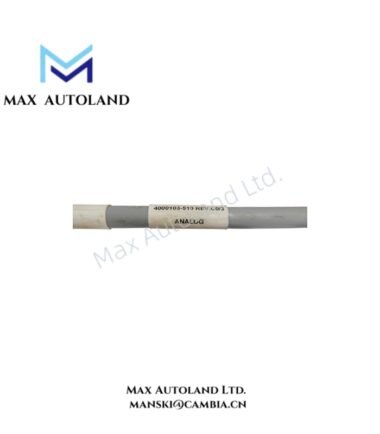

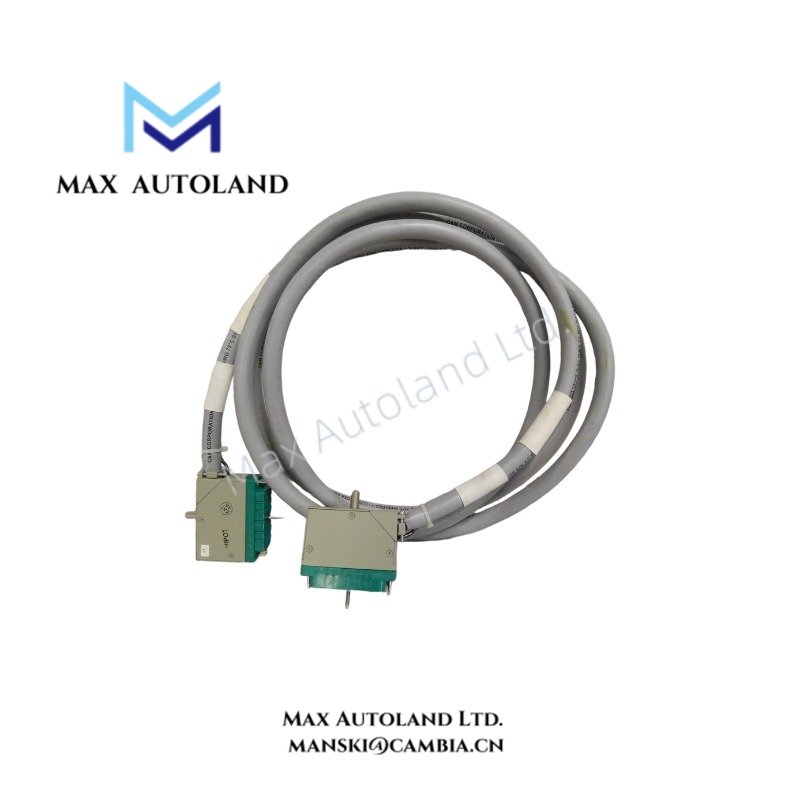

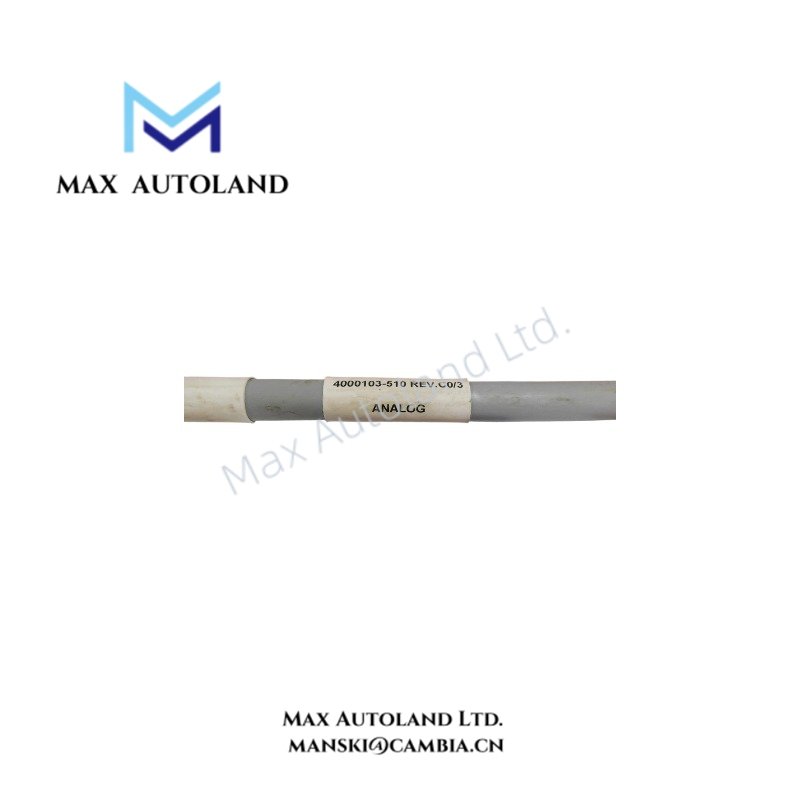

Invensys 4000103-510 Analog Input Cable Assembly

Overview

Configured for connecting analog input termination hardware in the Triconex safety control system, the Invensys 4000103-510 (4000103-510 analog input cable assembly) provides a physical cable path between compatible termination panels and the associated Tricon interface hardware. The assembly uses a keyed multi-channel connection and supports the documented FT1 analog input cable configuration.

Hardware Specifications

Triconex TMR and Signal Path Considerations

The 4000103-510 forms part of the physical analog input signal path between termination hardware and the Triconex control system. The keyed multi-channel interface controls connector orientation and helps maintain the intended conductor assignment during installation.

For Triconex SIS applications, verify the complete signal path before commissioning. The cable itself does not define the TMR voting function; instead, it provides the documented interconnection between compatible termination hardware and the controller interface.

The supplied data specifies end-to-end conductor verification as the applicable diagnostic coverage. Therefore, technicians should verify conductor continuity and channel assignment against the project wiring documentation before placing the affected safety path into service.

Frequently Asked Questions

Q: Which termination panels are specified for the 4000103-510?
A: The supplied data identifies the 9753-110 and 9771-210 panels as compatible hardware.

Q: Does the 4000103-510 consume electrical power?
A: No power consumption value is specified. The supplied information identifies it as a cable assembly rather than an active electronic module.

Q: What should technicians verify before commissioning?
A: Verify the connector orientation, conductor continuity, channel assignment, termination hardware, and complete safety signal path against the applicable project documentation.

Field Installation Guidelines

Route the 4000103-510 through the designated cabinet cable path and maintain the documented connection between the termination panel and Tricon interface hardware.

Before connection, verify the order reference, connector keying, panel designation, and cable identification. Then check conductor continuity and channel assignment against the wiring documentation.

Keep the cable separated from sources of electrical interference where the cabinet installation requires signal segregation. Follow the specified cabinet grounding and shielding practices for the associated analog input circuit. Do not alter the cable termination or conductor assignment without approved system documentation.

After installation, perform end-to-end verification for every affected safety path before commissioning. Confirm that the installed cable matches the required FT1 analog input configuration and that all associated termination connections are secure.
