Overview

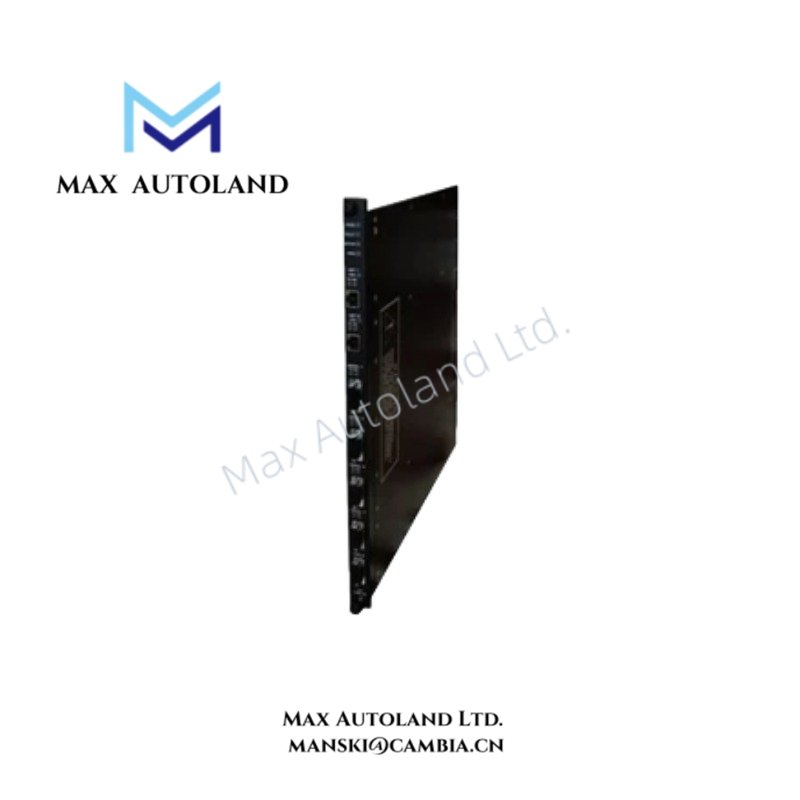

The Rockwell Automation T9100 Processor Base Unit, also cataloged as the T9100 safety controller base unit, operates as a dedicated hardware component for high-integrity safety applications within ICS Triplex AADvance safety controller systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | T9100 |
| Brand | Rockwell Automation / ICS Triplex |
| Origin | Standard Industrial Manufacturing |
| Weight | 460 g |
| Dimensions | 235 mm x 126 mm |
| Operating Temp | -10 deg C to +50 deg C |
| Power Consumption | Redundant +24 VDC nominal (18 VDC to 32 VDC) |
| Processor Support | 1, 2, or 3 processor modules |
| I/O Capacity | Up to 16 total I/O base units |
| Ethernet Connectivity | 2 shielded RJ45 sockets per processor |
Triple Modular Redundancy And Fail-Safe State Execution
Operating within high-integrity safety loops such as Emergency Shutdown Systems and Fire and Gas monitoring, the unit employs a scalable fault-tolerant architecture. Furthermore, it supports up to three processor modules concurrently to execute voting logic across redundant pathways. Therefore, when a single channel experiences a fault, the system maintains continuous operation while transitioning securely toward a fail-safe state if multiple discrepancies occur. Galvanic isolation across internal buses subsequently prevents transient voltage propagation, ensuring robust safety integrity level compliance.
Frequently Asked Questions
Q: What are the hot-swap limitations for the processor modules within this base unit?
A: Modules can be replaced live under specific redundant configurations, provided that the remaining processors maintain active control and the system safety authorization permits online maintenance.
Q: How does the base unit distribute power across connected I/O buses?
A: The dual redundant +24 VDC power feeds supply power through dedicated 3-way connectors, internally distributing current across up to 16 connected I/O base units partitioned evenly across two distinct buses.
Field Installation Guidelines
Mount the processor base unit securely onto a standard industrial enclosure backplate, ensuring proper clearance for airflow within the -10 deg C to +50 deg C operating threshold. Connect the redundant +24 VDC power feeds to the designated 3-way power connectors while verifying that supply voltages remain strictly within the 18 VDC to 32 VDC range. Additionally, terminate shielded RJ45 Ethernet cables properly to maintain electromagnetic compatibility and prevent data packet loss across the industrial network.
