Overview

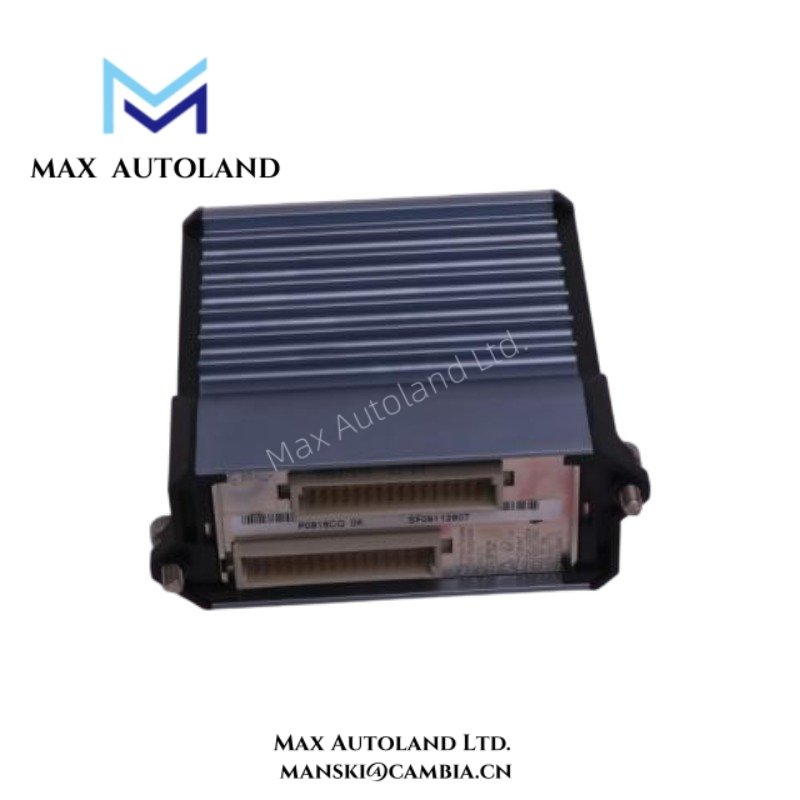

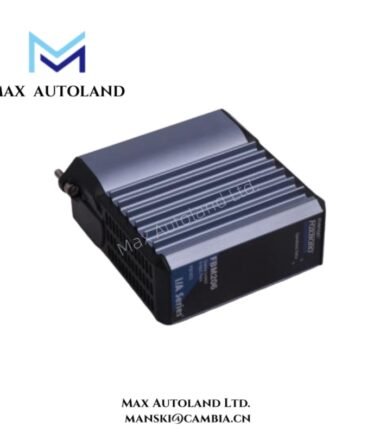

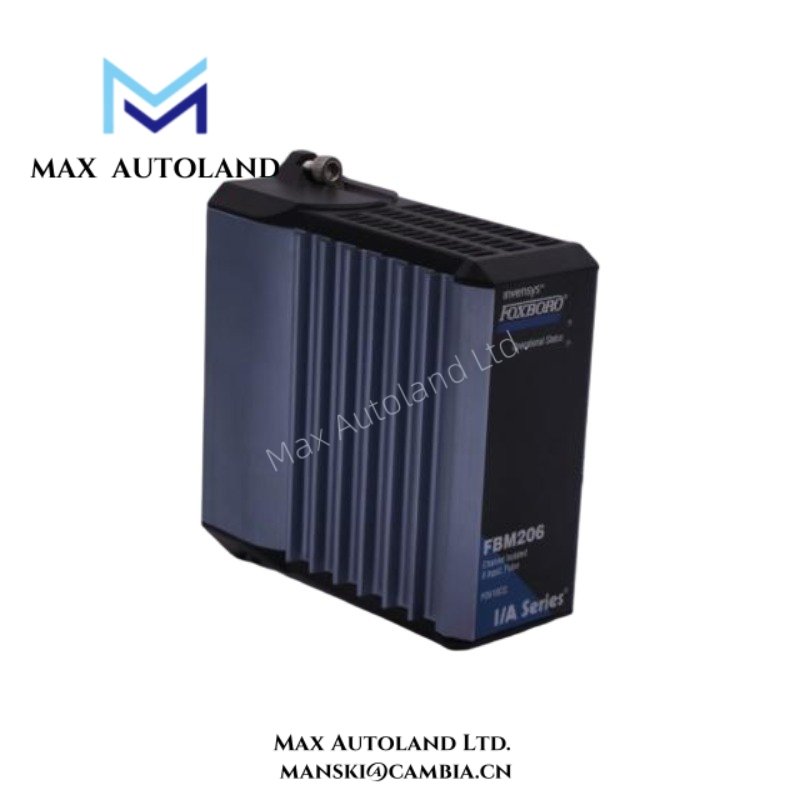

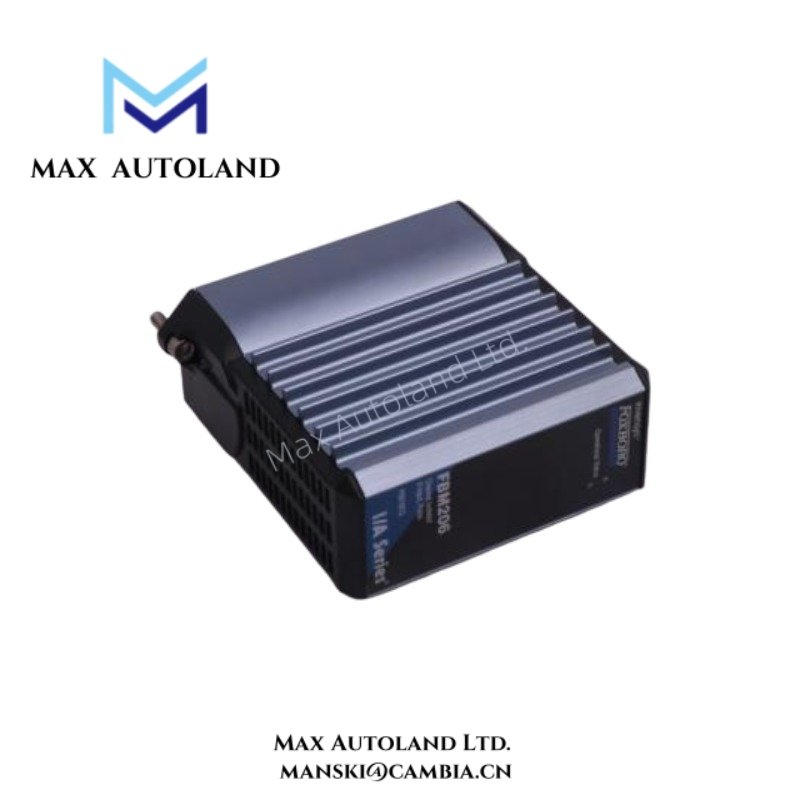

Foxboro designed FBM206 P0916CQ to provide accurate pulse signal acquisition within I/A Series distributed control systems.
It supports eight isolated input channels while ensuring precise counting and stable signal processing performance.
Additionally, FBM206 P0916CQ enhances measurement reliability through advanced isolation and high-speed pulse detection capability.
Engineers rely on this module to monitor frequency, flow, and event signals in industrial environments.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM206 P0916CQ |
| Manufacturer | Foxboro |
| Product Type | Pulse Input Module |
| Series | I/A Series Distributed Control System |
| Input Channels | 8 isolated channels |
| Input Signal Type | Pulse / frequency input |
| Input Voltage Range | 0–30 VDC |
| Pulse Frequency Range | Up to 10 kHz |
| Input Impedance | High impedance design |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Signal Processing | High-speed digital counting circuitry |
| Power Supply | Provided via baseplate |
| Power Consumption | Approximately 5 W |
| Heat Dissipation | Efficient thermal management design |
| Connection Interface | Baseplate connection to system |
| Field Wiring | External termination assembly required |
| Dimensions (W × H × D) | Approximately 45 mm × 130 mm × 105 mm |
| Weight | Approximately 0.25 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Compliance | Meets industrial automation standards |
| Mounting Method | Modular baseplate mounting |
FAQ
Q1: Is this product original and new?
Yes, we supply FBM206 P0916CQ as brand-new and original from Foxboro.
Q2: Do you have stock available?
Yes, we keep FBM206 P0916CQ in stock for immediate shipment.
Q3: How fast can you ship the order?
We ship within 3 days to 2 weeks depending on order size.
Q4: Which logistics services do you use?
We typically use DHL and other major international logistics providers.
Q5: What is the return policy?
We support returns within 30 days if any quality issue occurs.
Q6: What type of signals does this module support?
The FBM206 P0916CQ supports pulse and frequency input signals up to 10 kHz.
Reviews
There are no reviews yet.
