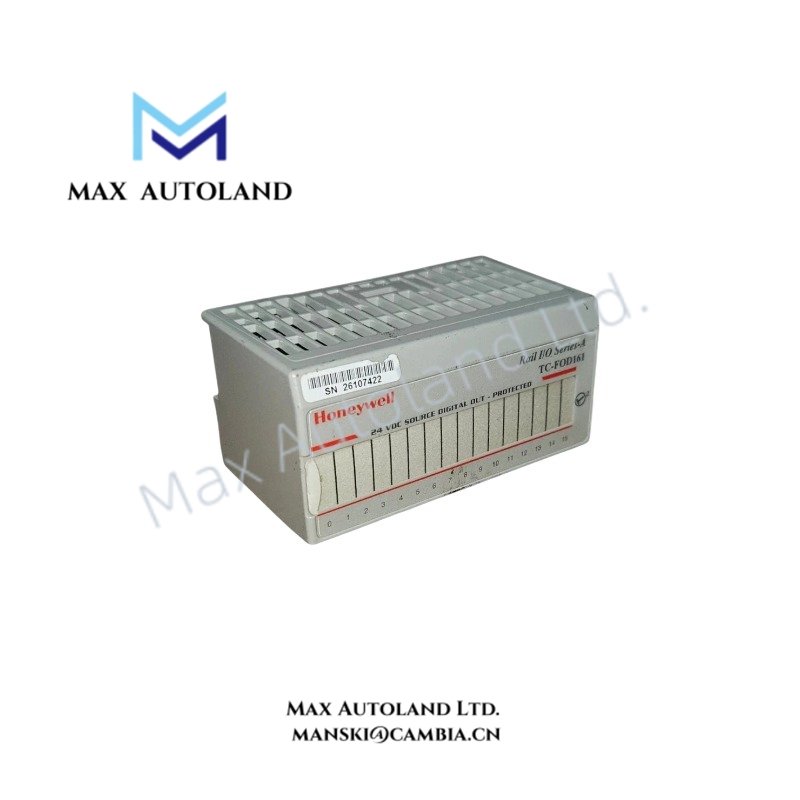

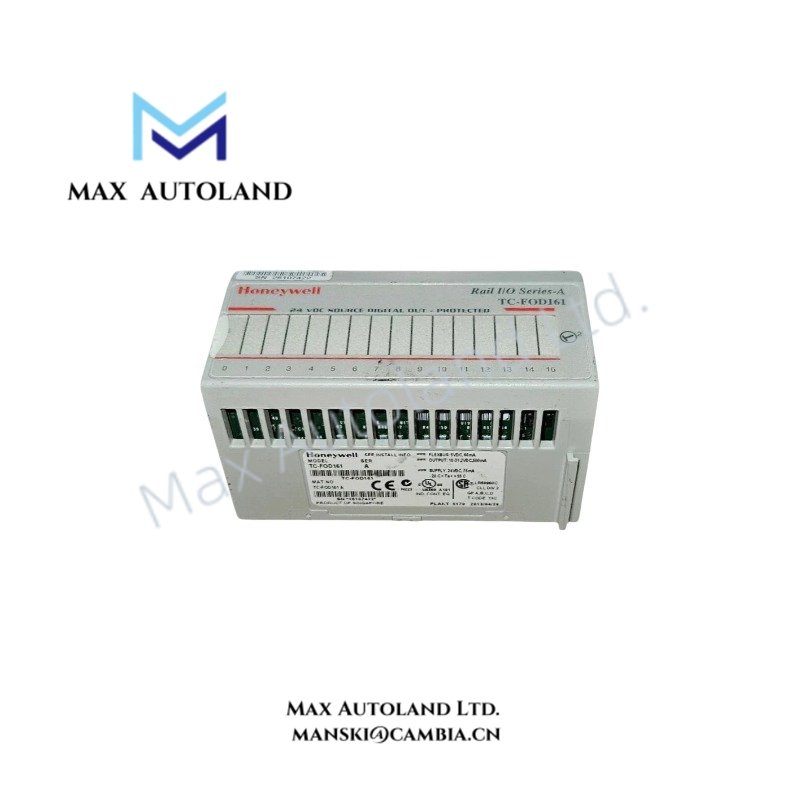

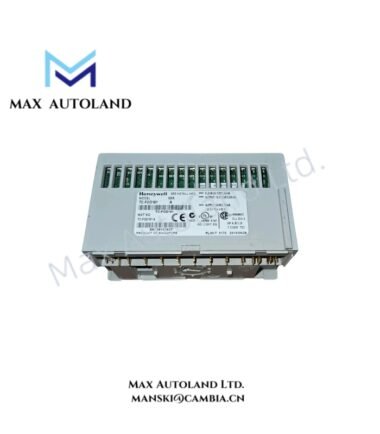

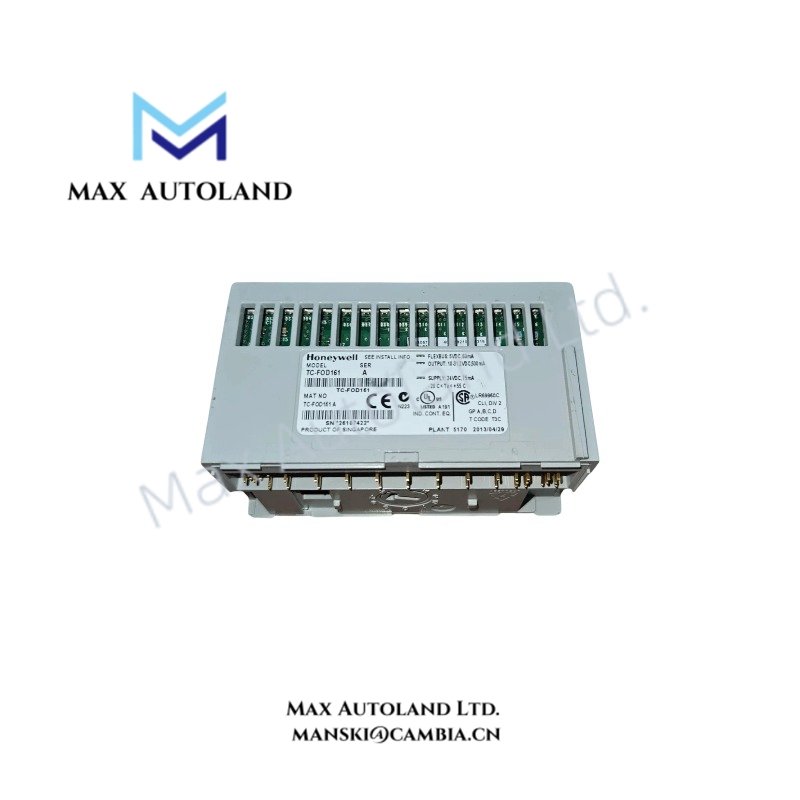

Honeywell TC-FOD161 Digital Output Module

Overview

The Honeywell TC-FOD161, also cataloged as the TC-FOD161 Digital Output Module, operates as a dedicated hardware component for 24 VDC discrete signal execution within Honeywell Experion PKS C200 Series A I/O systems.

Hardware Specifications

Experion PKS Discrete Output Signal Handling

The TC-FOD161 provides sixteen protected sourcing output channels for direct control of external field devices. It switches 24 VDC signals to operate discrete loads including solenoid valves, relays, indicator lamps, and motor starter interfaces.

Furthermore, the module incorporates output circuit protection to limit damage caused by field wiring faults. The optical isolation design separates the field voltage domain from the controller logic domain, reducing electrical interference transfer between external devices and the control system.

Frequently Asked Questions

Q: What type of field signals does the TC-FOD161 process?
A: The TC-FOD161 processes 24 VDC discrete output signals and provides sourcing outputs for external field actuators and switching devices.

Q: Does the TC-FOD161 provide electrical isolation between field wiring and control electronics?
A: Yes. The module uses optical isolation between the field output circuits and the internal control logic interface.

Q: What protection functions are integrated into the TC-FOD161 output channels?
A: Each output channel includes protection functions designed for overload and short-circuit conditions in industrial field wiring applications.

Field Installation Guidelines

Install the TC-FOD161 module in the designated Honeywell C200 Series A I/O chassis position according to the system hardware configuration requirements.

Verify that the terminal block assembly matches the selected Series A I/O wiring interface before connecting field conductors. Maintain proper separation between signal wiring and high-voltage power cables to reduce electrical noise coupling.

Connect field wiring with correct polarity for the 24 VDC sourcing output configuration. Ensure cable shielding practices follow the plant grounding standard when the module operates near high-noise electrical equipment.

Before commissioning, check channel LED indicators and confirm output activation states through the Experion PKS engineering tools. Verify that connected field devices respond correctly to controller output commands.
