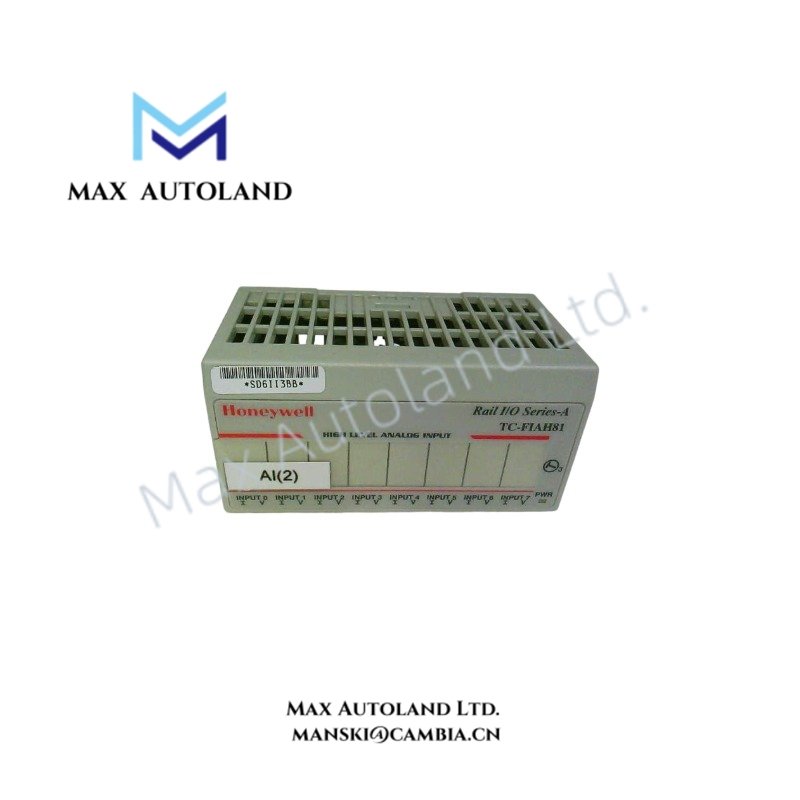

Honeywell TC-FIAH81 HART Analog Input Module

Overview

The Honeywell TC-FIAH81, also cataloged as the TC-FIAH81 HART Analog Input Module, operates as a dedicated hardware component for converting 4-20 mA field transmitter signals and HART diagnostic data within Honeywell Experion PKS C200/C300 control system platforms.

Hardware Specifications

4-20 mA HART Process Interface and Channel Isolation

The TC-FIAH81 module processes analog current inputs from field transmitters and transfers measured process variables to Experion PKS controllers. Furthermore, the module supports the 4-20 mA HART loop protocol, allowing digital configuration and diagnostic information to pass through the same field wiring.

The module provides channel-to-channel and channel-to-system electrical isolation to reduce ground loop effects and field signal interference. Therefore, it supports connection to pressure, temperature, flow, and level transmitters requiring separated analog measurement paths.

The HART interface allows controller-side access to transmitter status information without external multiplexers. Additionally, built-in diagnostics monitor input conditions, including open circuits, short circuits, signal range errors, and module hardware conditions.

Frequently Asked Questions

Q: Does the TC-FIAH81 support HART communication through the analog input loop?
A: Yes. The module supports HART protocol pass-through and monitoring through compatible 4-20 mA input channels without requiring an external HART multiplexer.

Q: Can the TC-FIAH81 be removed while the control system remains powered?
A: The module supports hot-swappable operation within compatible Honeywell chassis configurations. Installation procedures must follow the applicable Experion PKS hardware maintenance guidelines.

Q: What installation considerations apply to the analog input wiring?
A: Field wiring should use appropriate shielded instrumentation cable. The shield termination and grounding method should follow the site electrical standard to minimize noise coupling.

Field Installation Guidelines

• Install the TC-FIAH81 module in the designated Honeywell Experion PKS I/O chassis slot according to system configuration documents.
• Verify that the backplane connector is clean and fully seated before operation.
• Separate analog signal wiring from high-voltage power cables and switching circuits to reduce electromagnetic interference.
• Connect cable shields according to the plant grounding design and avoid multiple ground points on signal shields.
• Confirm transmitter loop polarity before applying 24 VDC field power.
• Verify HART communication settings after installation through the Experion engineering interface.
• Check channel diagnostics before placing connected field devices into normal control service.
