Honeywell 51308092-200 AC Power Cable Assembly

Overview

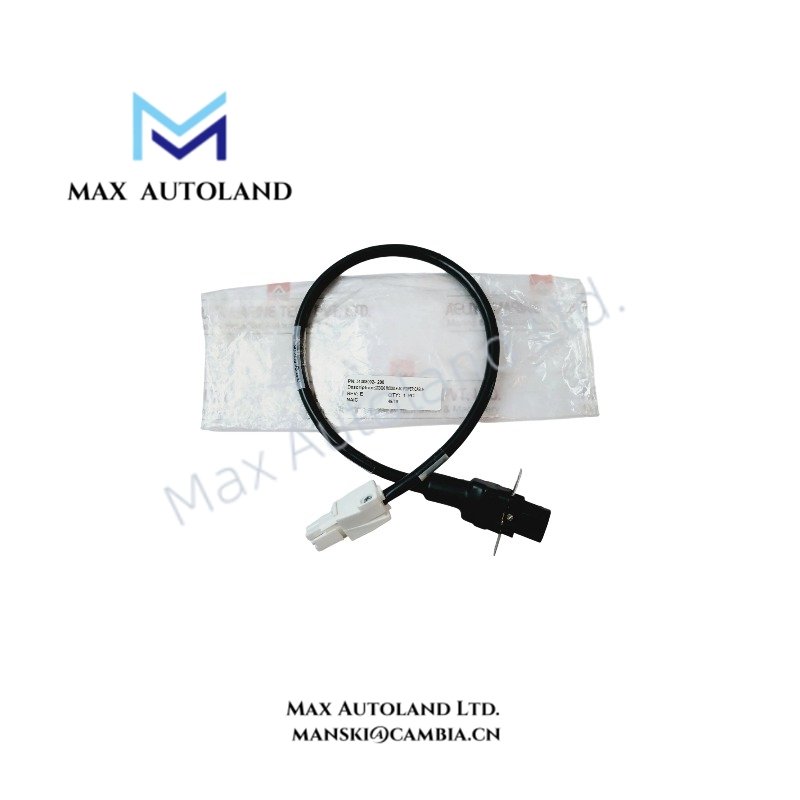

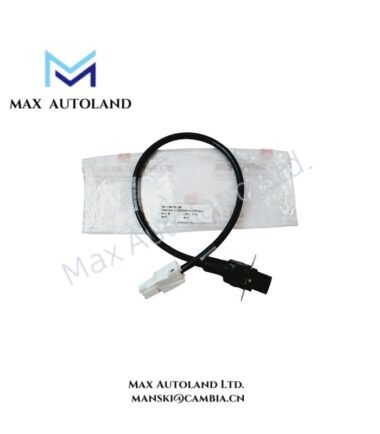

Configured for AC power distribution in Honeywell control system racks, the Honeywell 51308092-200 (51308092 AC Power Cable Assembly) provides direct physical electrical connection between power sources and compatible XC3000 / Experion PKS hardware platforms.

Hardware Specifications

DCS Power Distribution and Electrical Connection Characteristics

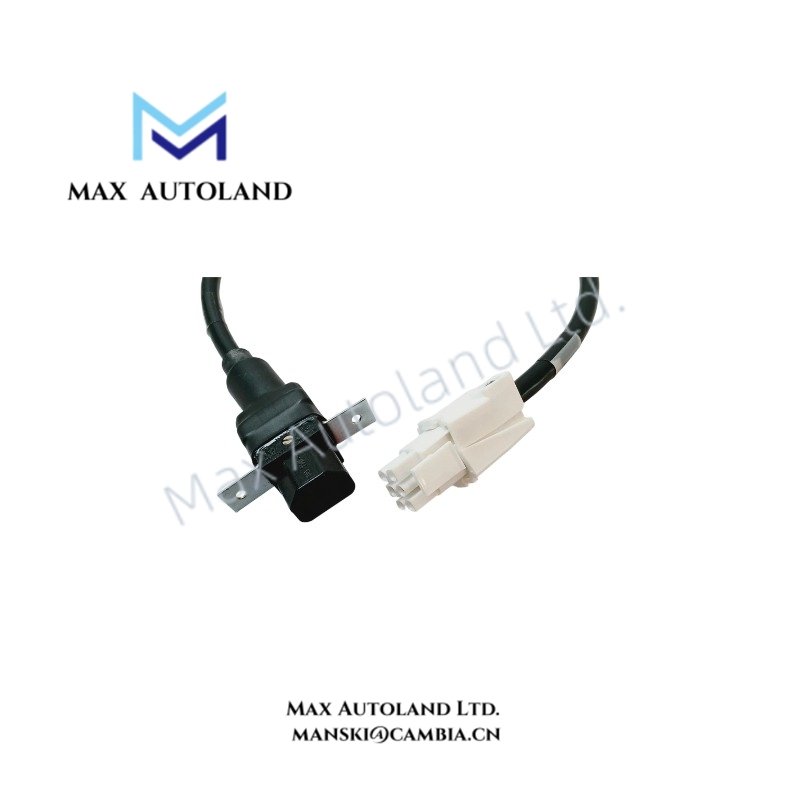

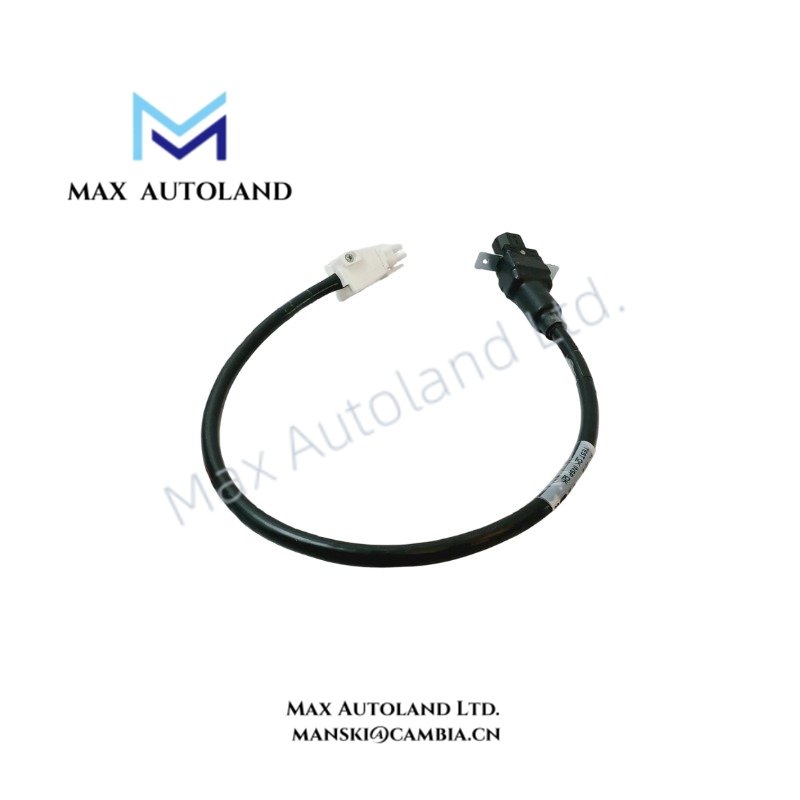

The Honeywell 51308092-200 AC Power Cable Assembly supports direct AC power routing within Honeywell control system hardware configurations. The assembly provides conductor insulation, connector interfaces, and mechanical cable protection for rack-level power connections.

For Honeywell DCS environments, power assemblies must maintain proper electrical separation from field signal wiring. Therefore, installation practices should consider grounding paths, cable routing distance, and protection against electrical interference.

The assembly does not perform signal processing, communication conversion, or control logic execution. Instead, it provides a passive electrical path for AC power delivery between designated system components.

Frequently Asked Questions

Q: Does the Honeywell 51308092-200 perform any control or communication functions?
A: No. The 51308092-200 is a passive AC power cable assembly and does not contain control electronics, firmware, or communication interfaces.

Q: Can the 51308092-200 be installed while the control rack is energized?
A: No. Power cables should be installed or replaced only after system shutdown and electrical isolation procedures are completed.

Q: What installation factors affect cable performance in a DCS cabinet?
A: Proper connector engagement, cable routing separation, grounding practices, and avoidance of mechanical stress on the cable assembly affect electrical performance.

Field Installation Guidelines

1. Verify the Honeywell system hardware configuration and confirm the required cable connection points before installation.
2. Remove AC power from the associated rack or module assembly before disconnecting or installing the cable.
3. Inspect connector contacts and cable insulation for physical damage before installation.
4. Route the cable according to cabinet wiring standards. Keep AC power cables separated from low-level analog signal cables and communication wiring where applicable.
5. Confirm that connectors are fully seated and mechanically secured after installation.
6. Restore power only after completing wiring inspection and electrical safety verification procedures.
