51308093-300 Honeywell AC Power Entry Panel Assembly

Overview

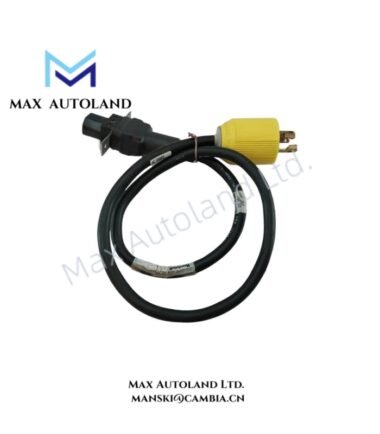

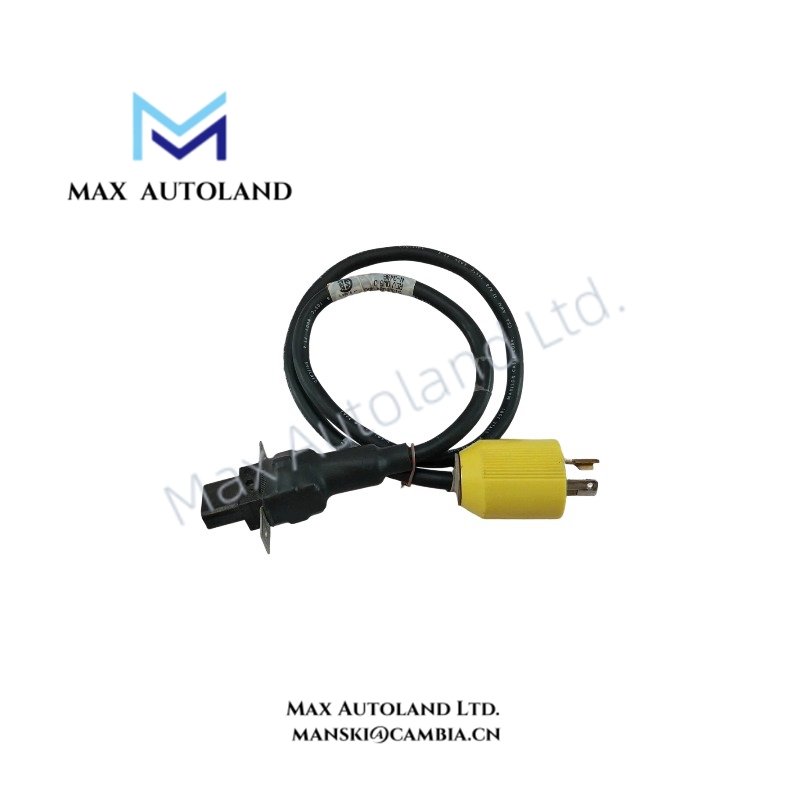

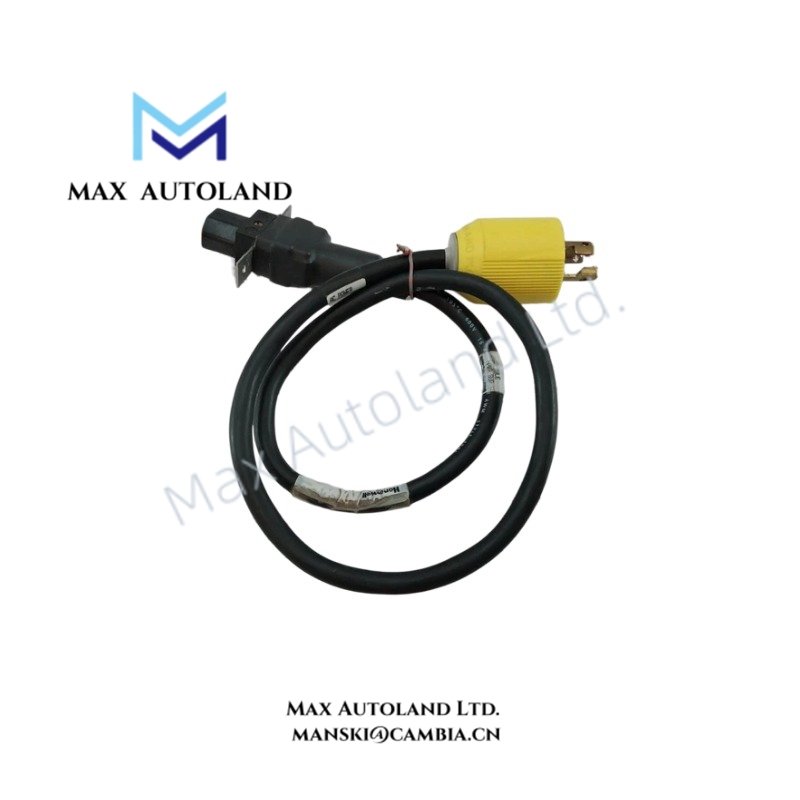

Configured for AC power entry and cabinet power distribution in Honeywell control system infrastructure, the Honeywell 51308093-300 (51308093-300 AC Power Entry Panel Assembly) provides direct physical electrical connection for incoming AC supply routing within TDC 3000 and Experion PKS platforms.

Hardware Specifications

Process Control Power Interface Characteristics

The Honeywell 51308093-300 operates as a passive AC interface assembly within Honeywell process control cabinets. It routes incoming AC power to designated cabinet power circuits while maintaining electrical separation between external supply wiring and internal system components.

In addition, the assembly supports Honeywell cabinet architectures where controlled power distribution is required for controller racks, I/O assemblies, and related system hardware. The component does not provide signal processing, data communication, or field instrumentation functions.

The design follows industrial DCS installation practices, including structured cable routing, protective insulation requirements, and defined grounding arrangements. Therefore, installation procedures must follow the applicable Honeywell cabinet documentation for the target system configuration.

Frequently Asked Questions

Q: Does the 51308093-300 provide communication functions or control logic processing?
A: No. The 51308093-300 is an AC power entry and distribution assembly. It does not contain communication interfaces, firmware, or control processing circuits.

Q: Can the 51308093-300 be installed without verifying cabinet wiring requirements?
A: No. The installer should confirm cabinet drawings, AC input wiring paths, grounding points, and connector assignments before installation.

Q: Does this assembly support hot-swap replacement during system operation?
A: No hot-swap capability is specified. Replacement requires following standard electrical isolation procedures before disconnecting cabinet power wiring.

Field Installation Guidelines

• Verify that the incoming AC supply is isolated before removing or installing the power entry assembly.
• Confirm the cabinet wiring diagram and connector identification before connecting field power conductors.
• Maintain proper separation between AC power cables and low-level signal wiring to reduce electrical interference.
• Connect protective grounding conductors according to the Honeywell cabinet installation manual requirements.
• Inspect insulation surfaces, terminals, and cable routing paths before energizing the system.
• Secure all cable paths to prevent mechanical stress on connectors and termination points.
