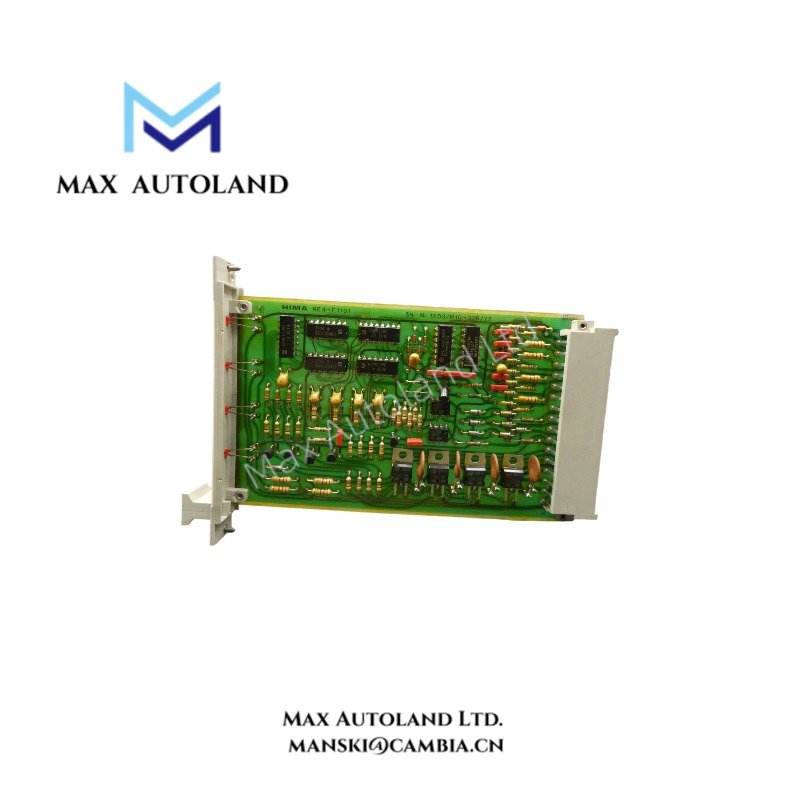

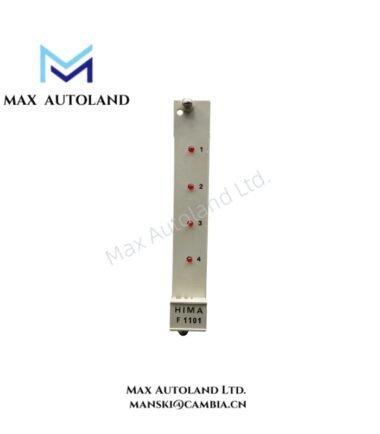

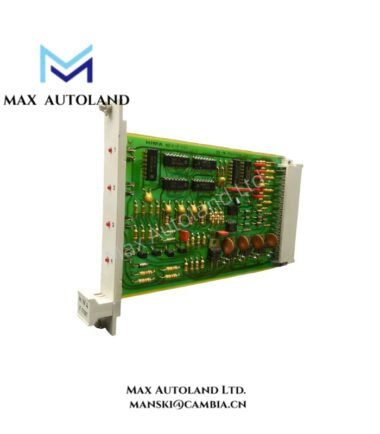

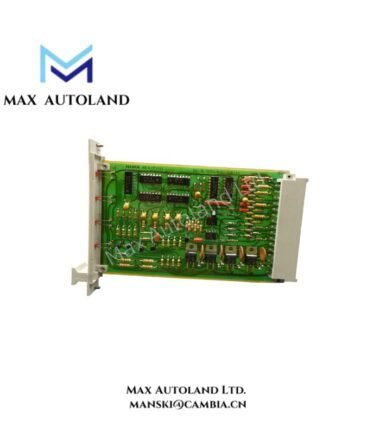

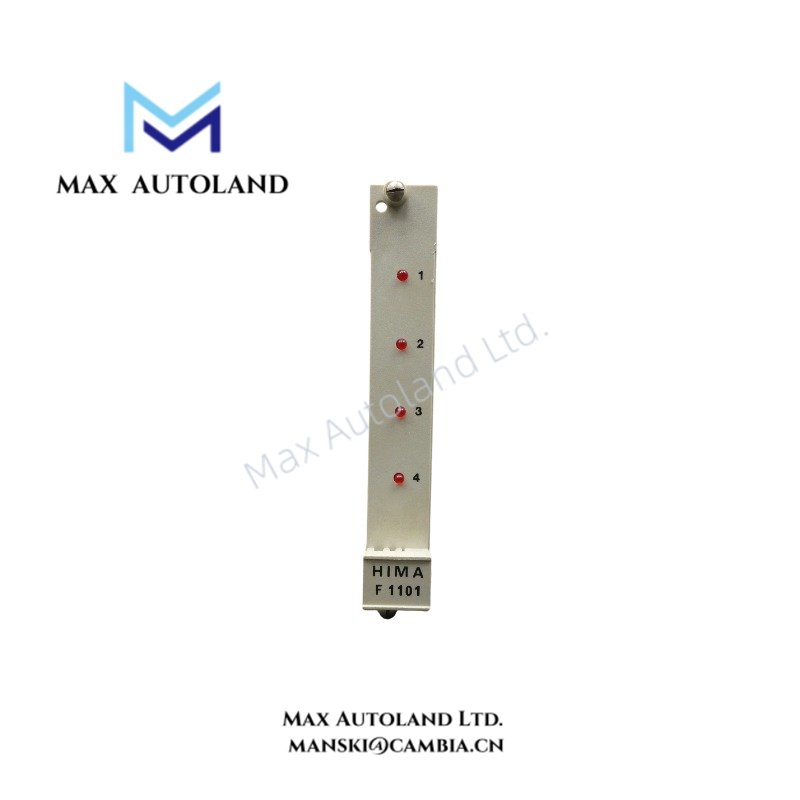

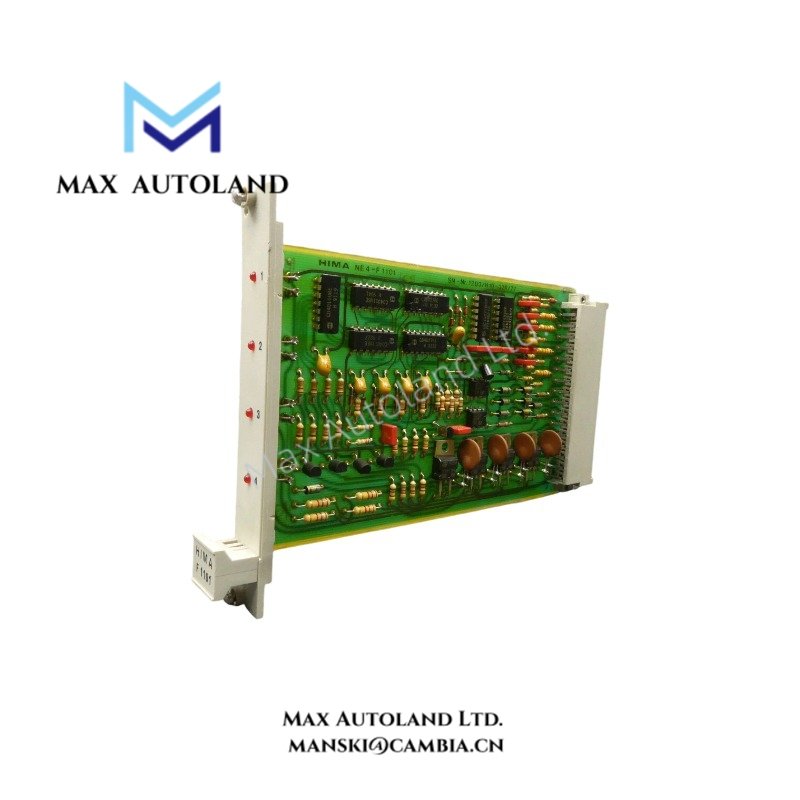

HIMA F1101 Switching Amplifier Module

Technical Specifications

Signal Processing and Application

The supplied description identifies the F1101 as a module for processing discrete signals from field contacts and two-wire proximity switches. In a safety-related control system, the signal-processing stage helps the controller determine the state of a monitored device. The exact input circuit, switching thresholds, and output behavior must match the installed hardware configuration.

System Identification and Selection

The F1101 is associated with the Planar F product family in available product references. Do not assume compatibility with HIMatrix systems solely from the model number; verify the module’s hardware generation, rack or baseplate requirements, and controller interface before replacement or installation.

Frequently Asked Questions

Q: What is the primary function of the HIMA F1101?

A: The supplied description identifies it as a switching amplifier for safety-related signals. Confirm the precise function against the installed module’s nameplate and applicable technical documentation.

Q: Is the F1101 certified for SIL 3 applications?

A: The supplied description claims SIL 3 capability, but this claim has not been verified against model-specific manufacturer documentation. Confirm the applicable safety certificate and system-level requirements before using the module in a safety instrumented function.

Q: Can the F1101 accept both 24 VDC and 230 VAC signals?

A: The supplied material lists both voltage types as configuration-dependent. It does not establish that one F1101 unit accepts both. Verify the rated input voltage and wiring diagram for the exact hardware version before connecting field signals.
