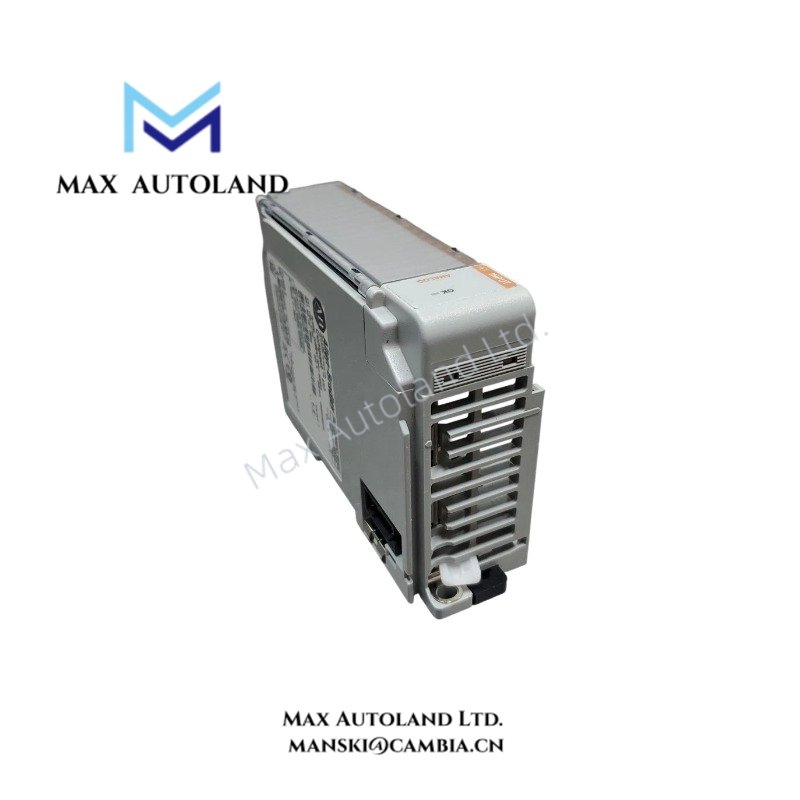

Overview

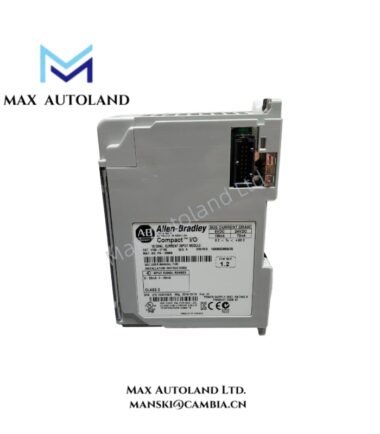

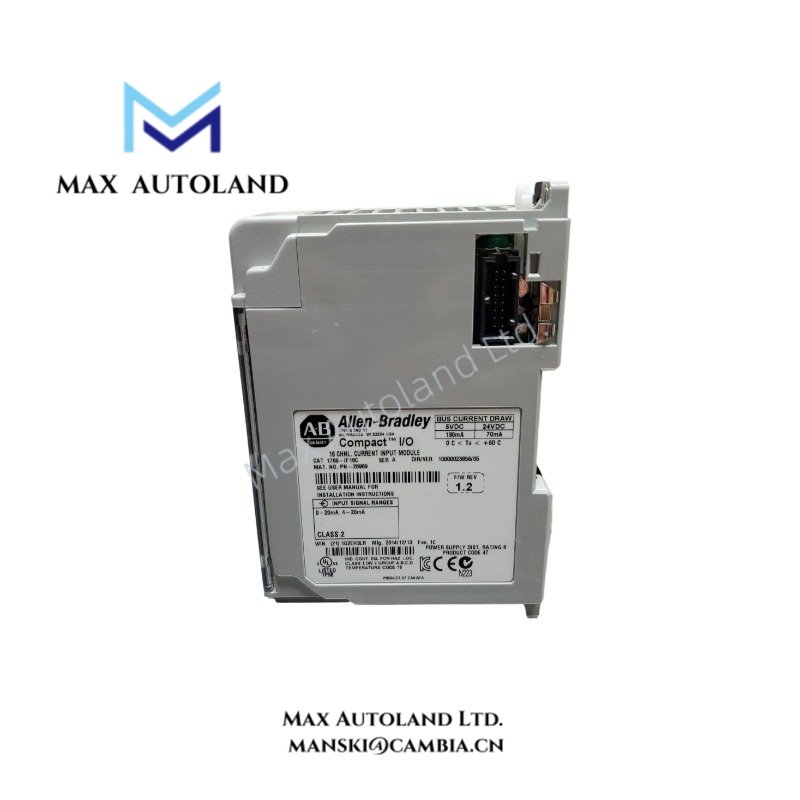

Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1769-IF16C |
| Brand | Allen-Bradley |
| Product Line | CompactLogix |
| Product Type | Analog Current Input Module |
| Number of Inputs | 16 single-ended inputs |
| Nominal Operating Input Current Range | 0-20 mA |
| Full Module Current Range | 0-21 mA |
| Input Impedance | 249 Ohms |
| Converter Type | Sigma-Delta |
| Rated Working Voltage | 30 V AC/DC |
| Heat Dissipation | 4 W |
| Status LEDs | Included |
| Panel Mounting Tabs | Included |
| DIN Rail Latches | Included |
| Bus Lever | Locking function included |
| UPC | 612598626786 |
| Estimated Shipping Dimensions | 16 x 13 x 5.3 cm |
Current Input and Signal Processing
The 1769-IF16C reads current signals from connected field devices through 16 single-ended input channels. The nominal input range is 0-20 mA, while the full module range extends to 0-21 mA. Therefore, engineers should check the required measurement range when selecting the module for an application.
The 249 Ohm input impedance also affects the voltage that a transmitter needs to drive the signal. For this reason, check the transmitter’s output capacity along with the resistance of the module and field wiring. This helps confirm that the current signal can reach the input within the required operating limits.

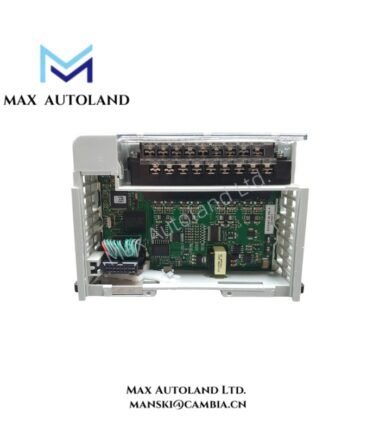

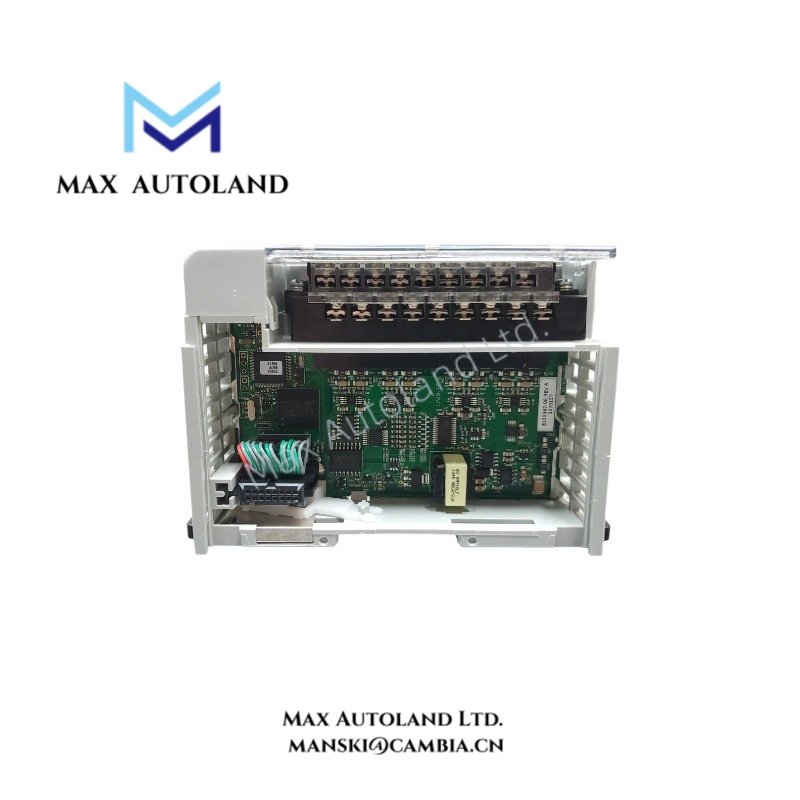

Installation and Hardware Features
The module includes panel mounting tabs and DIN rail latches for supported mounting arrangements. It also has a locking bus lever and status LEDs for local indication. In addition, its 4 W heat dissipation value helps engineers assess the thermal load within the I/O assembly.
Before installation, verify the terminal assignments, field wiring, channel settings, and operating limits against the technical documentation for the 1769-IF16C. Note that the specified 30 V AC/DC working voltage does not represent the analog current input range. Instead, check the current range and working voltage as separate electrical specifications.
Frequently Asked Questions
Q: What signals can the 1769-IF16C measure?
A: The module measures analog current signals through 16 single-ended inputs. Its nominal operating range is 0-20 mA, with a full module range of 0-21 mA.
Q: How does the Sigma-Delta converter work?
A: The Sigma-Delta converter changes analog input measurements into digital values for controller processing. As a result, the controller can use the acquired current signals in its control logic.
Q: What should I check before replacing this module?
A: First, confirm the complete model number and the required input configuration. Then, check the current range, terminal assignments, and controller hardware documentation. Do not assume that another CompactLogix analog input module provides the same functions simply because it belongs to the same product line.
