Overview

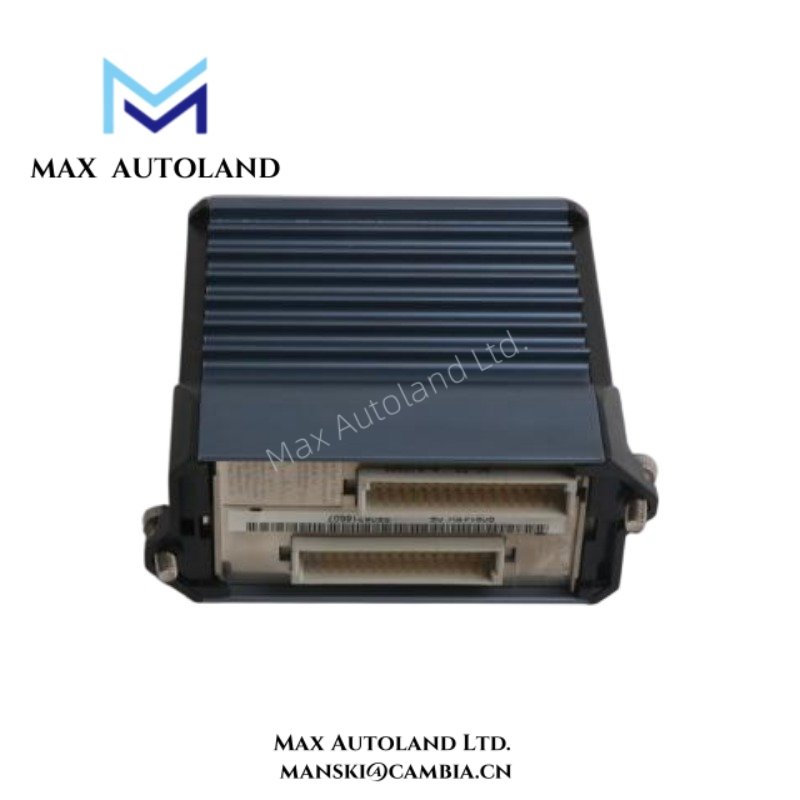

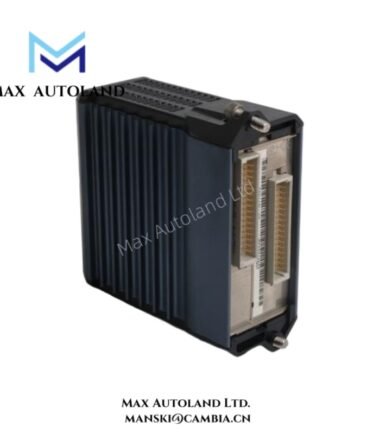

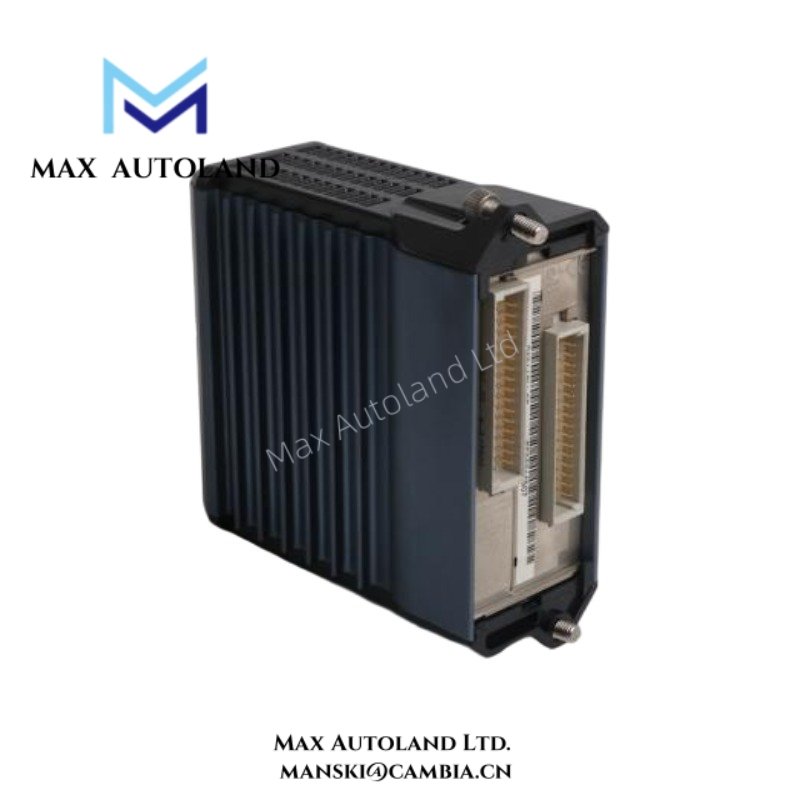

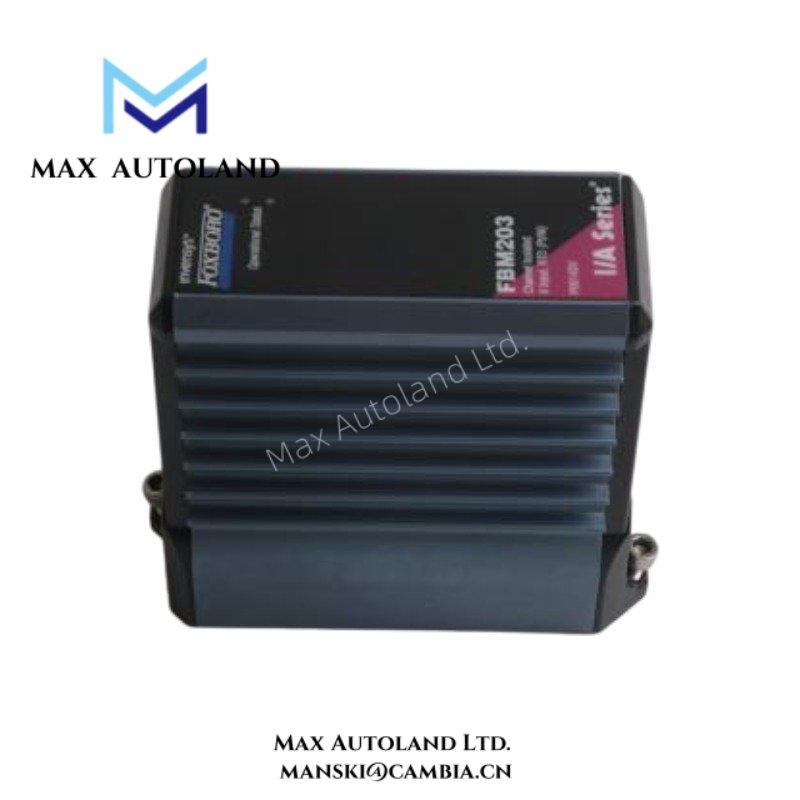

The Foxboro FBM203 P0914SV module delivers precise RTD signal acquisition for demanding industrial automation environments.
Moreover, this module belongs to the trusted Foxboro I/A Series, ensuring seamless integration with distributed control systems.
Engineers rely on FBM203 P0914SV for stable temperature measurement across multiple channels in harsh operating conditions.
Additionally, the design supports electrical isolation, which improves signal integrity and reduces interference risks significantly.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM203 P0914SV |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Series | I/A Series Distributed Control System |
| Module Type | Channel Isolated RTD Input Module |
| Input Channels | 8 independent RTD input channels |
| Input Signal Type | Resistance Temperature Detector (RTD) |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000 (DIN standard) |
| Measurement Range | -200°C to +850°C (depends on RTD type) |
| Input Resolution | High-resolution A/D conversion for precise measurement |
| Accuracy | ±0.1% of span (typical, depends on configuration) |
| Input Configuration | 2-wire, 3-wire, and 4-wire RTD supported |
| Channel Isolation | Fully isolated channels (channel-to-channel and channel-to-ground) |
| Isolation Voltage | 1500 V AC isolation (typical industrial standard) |
| Input Impedance | Optimized for RTD signal accuracy and stability |
| Scan Update Rate | Fast sampling for real-time process monitoring |
| Signal Linearization | Built-in RTD linearization and temperature conversion |
| Cold Junction Compensation | Not required for RTD inputs |
| Power Supply | Powered via I/A Series baseplate |
| Power Consumption | Low power consumption design (<5 W typical) |
| Heat Dissipation | Efficient thermal design with minimal heat generation |
| Communication Interface | Backplane communication with control processor |
| Mounting Method | DIN rail / baseplate mounting (system dependent) |
| Dimensions | Approx. 45 mm (W) × 200 mm (H) × 150 mm (D) |
| Weight | Approx. 1.0–1.2 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Designed for industrial vibration environments |
| EMC Compliance | Meets industrial EMC standards for noise immunity |
| Protection Features | Overvoltage protection and input fault detection |
| Diagnostic Functions | Channel status monitoring and fault diagnostics |
| Redundancy Support | Compatible with redundant system architectures |
| Terminal Connection | Field wiring via termination assembly |
| Certification | Industrial automation compliance standards (varies by region) |
FAQ
Q1: What type of sensors does the FBM203 P0914SV support?
The FBM203 P0914SV supports RTD sensors, ensuring accurate and stable temperature measurement in industrial applications.
Q2: How many input channels does this module provide?
The FBM203 P0914SV provides eight fully isolated RTD input channels for reliable multi-point monitoring.
Q3: Is the product new and original?
Yes, we supply FBM203 P0914SV as brand new original units with guaranteed authenticity and performance.
Q4: Do you have stock and how fast can you ship?
We keep FBM203 P0914SV in stock, and we ship within 3 days to 2 weeks depending on order size.
Q5: What logistics services do you use?
We usually ship FBM203 P0914SV using reliable carriers such as DHL for fast global delivery.
