Overview

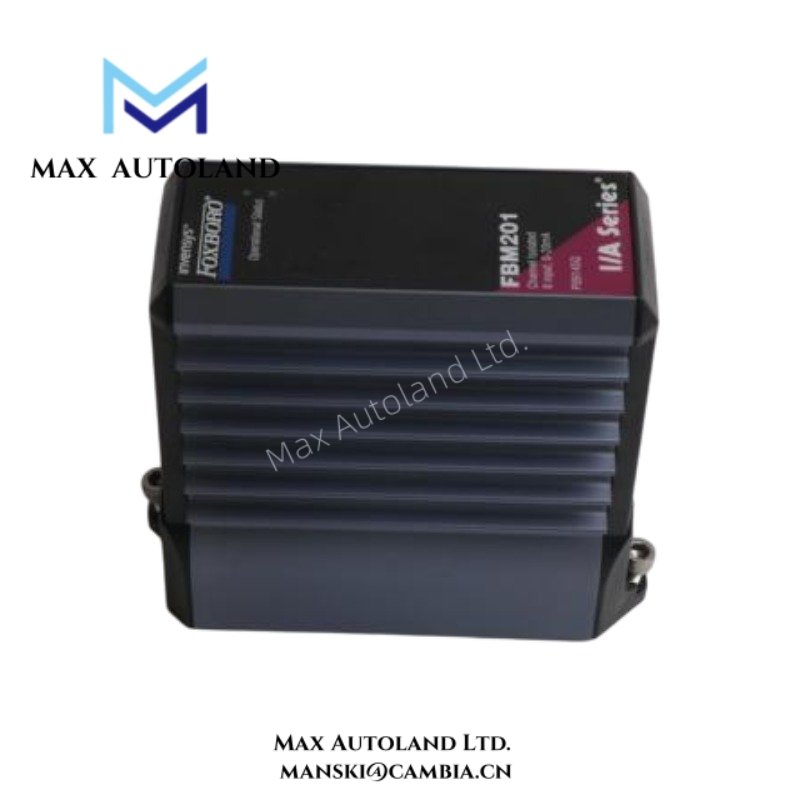

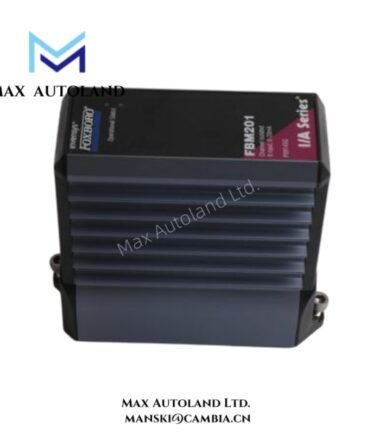

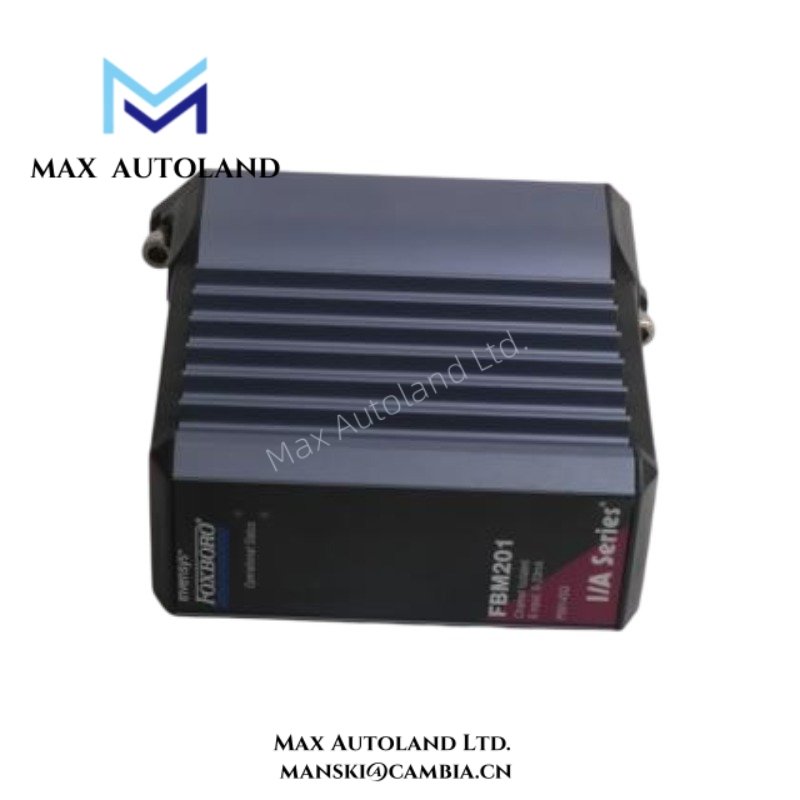

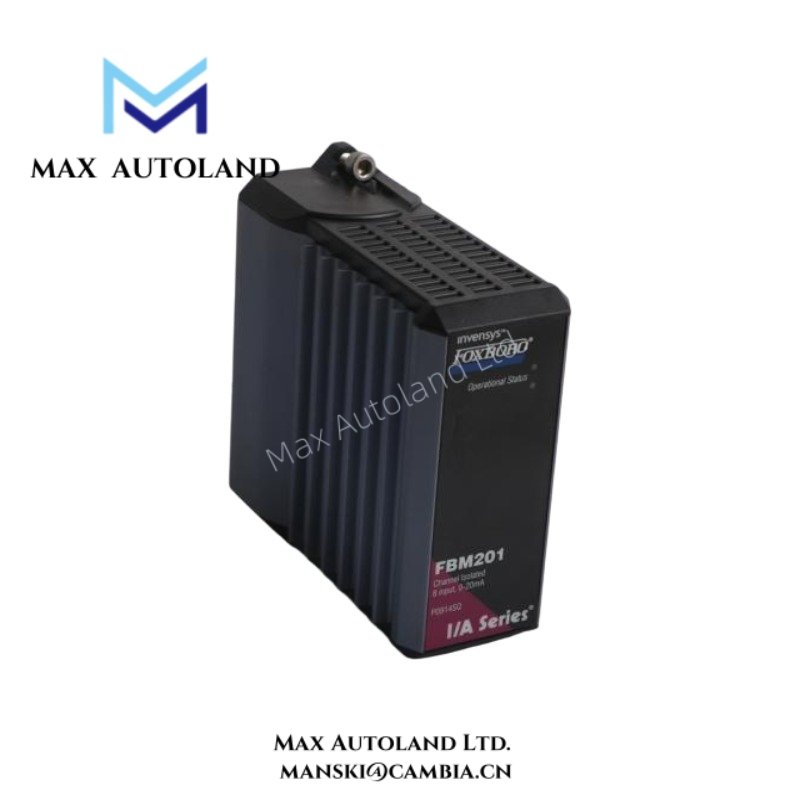

The FBM201 analog input module provides precise current signal acquisition for Foxboro I/A Series control systems.
It processes multiple analog inputs simultaneously while maintaining stable and reliable measurement performance in industrial environments.
Moreover, FBM201 integrates seamlessly with the Foxboro distributed control architecture, which simplifies system configuration and expansion.
Its compact and modular design improves cabinet space utilization while supporting high-density signal acquisition requirements.
Specification
| Parameter | Specification |
|---|---|
| Module Type | Compact FBM201 Analog Input Module |
| Mounting (Module) | Compact 200 Series 16-slot horizontal baseplate |
| Baseplate Mounting | Horizontal DIN rail or 19-inch rack with mounting kit |
| TA Mounting | DIN rail mounting (32 mm and 35 mm supported) |
| Weight (Module) | Approx. 185 g (6.5 oz) |
| Weight (TA – Compression) | Approx. 181 g (0.40 lb) |
| Weight (TA – Ring Lug) | Approx. 249 g (0.55 lb) |
| Dimensions (Module Height) | 130 mm (5.12 in) |
| Dimensions (Module Width) | 25 mm (0.98 in) |
| Dimensions (Module Depth) | 150 mm (5.9 in) including connectors; 139 mm (5.46 in) without connectors |
| Termination Assembly Dimensions | Refer to nominal dimension specifications |
| Module Part Number | RH101DA |
| Termination Assembly Part No. | Refer to functional specification |
| Cable Length | Up to 30 m (98 ft) |
| Cable Material | Polyurethane or Low Smoke Zero Halogen (LSZH) |
| Cable Type | Type 1 termination cable |
| Baseplate Connector | 37-pin D-subminiature |
| TA Connector | 25-pin D-subminiature |
| TA Construction Material | Polyamide (PA), compression or ring lug |
| Field Wiring Type | Compression or ring lug connection |
| Wiring Size (Compression) | 0.2 to 4 mm² / 24 to 12 AWG |
| Wiring Size (Ferrules) | 0.2 to 2.5 mm² with or without collar |
| Wiring Size (Ring Lug) | 0.5 to 4 mm² / 22 to 12 AWG |
| Ring Lug Size | #6 (0.375 in / 9.5 mm) |
| Installation Orientation | Horizontal mounting supported |
| Expansion Capability | Supports connection to termination assemblies via Type 1 cable |
FAQ
Q1: What signal range does FBM201 support?
The FBM201 supports 0 to 20 mA analog input signals for industrial transmitters and sensors.
Q2: How many channels are available on FBM201?
The FBM201 provides eight input channels for efficient multi-signal acquisition within one module.
Q3: Does FBM201 provide isolation?
Yes, the FBM201 includes channel isolation, which improves noise immunity and protects system components.
Q4: What is the delivery and stock status?
This product is brand new and original, and we keep stock available for immediate shipment.
Q5: How fast can shipping be arranged?
We usually ship within 3 days to 2 weeks, depending on order size and logistics such as DHL.
Q6: What happens if there is a quality issue?
We support returns within 30 days if any quality issue appears after delivery.
