Overview

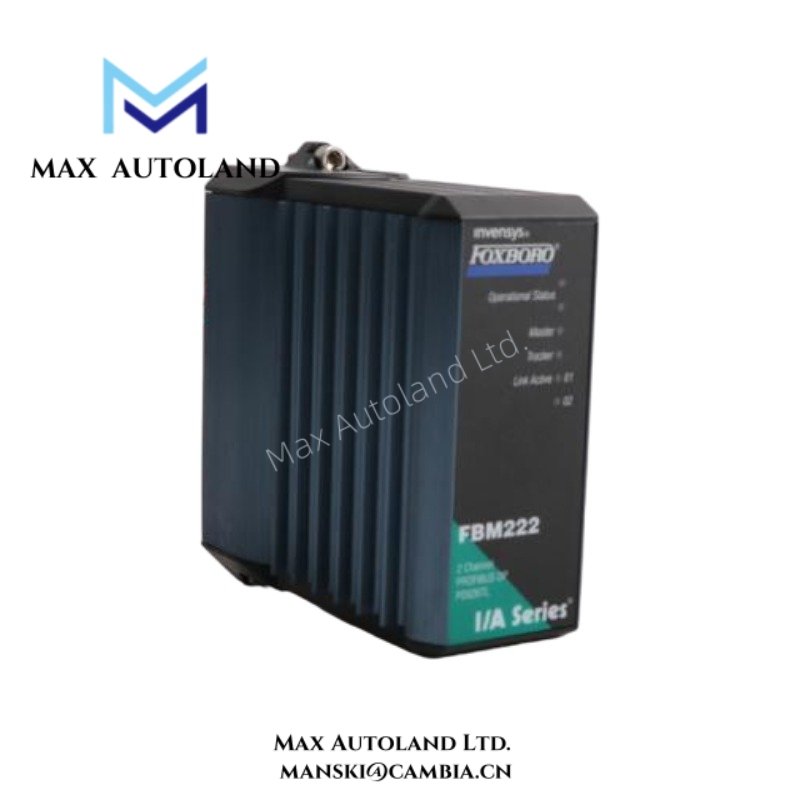

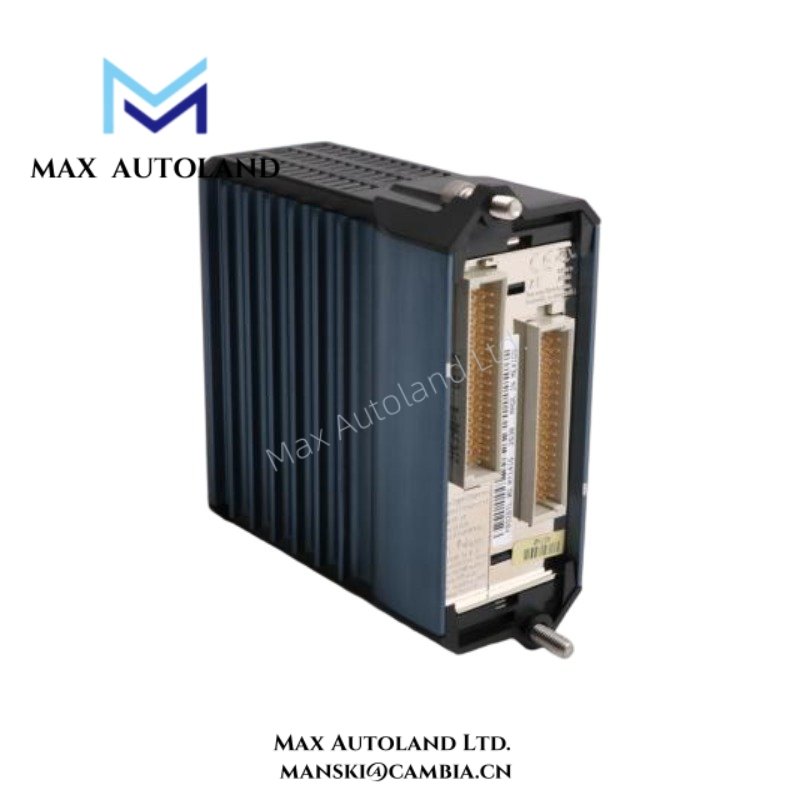

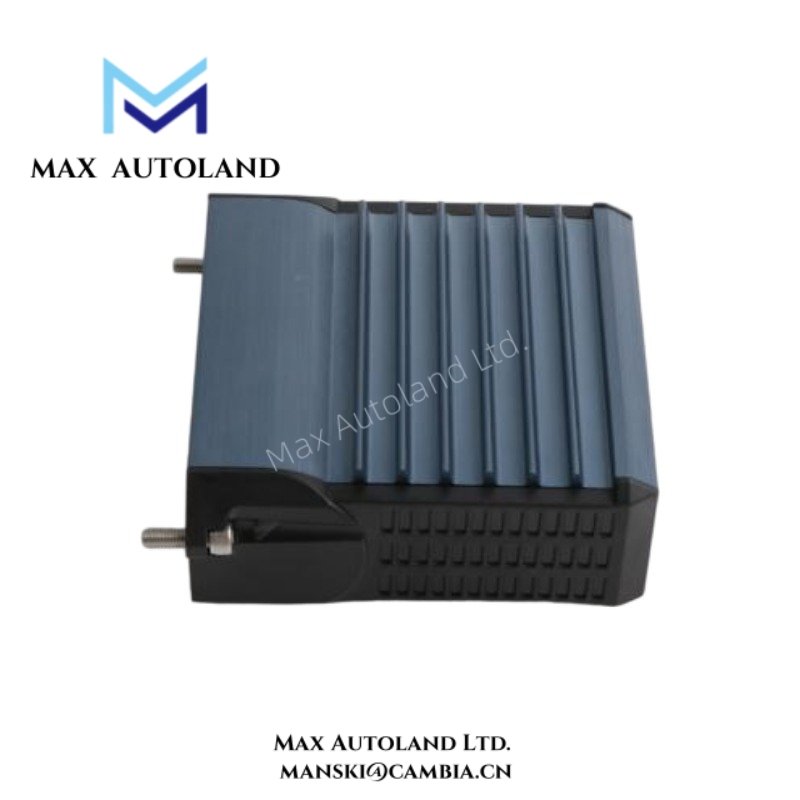

The FBM222 P0926TL from Foxboro provides high-capacity PROFIBUS communication for advanced industrial automation systems. It connects PROFIBUS-DP and PA devices directly to Foxboro I/A Series control platforms. Moreover, it supports redundant configurations, ensuring continuous communication during network interruptions.
Specification
| Specification | Details |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM222 P0926TL |
| Module Type | Redundant PROFIBUS Communication Module |
| Series | I/A Series / Foxboro Evo |
| Communication Protocol | PROFIBUS-DP / PROFIBUS-PA |
| PROFIBUS Ports | 2 independent isolated ports |
| Device Capacity | Up to 125 slave devices per port (with repeaters) |
| Data Transfer | Up to 244 bytes per device |
| Network Configuration | Single or redundant operation |
| Interface Type | RS-485 PROFIBUS |
| Isolation | Galvanic isolation between communication channels |
| Mounting | Baseplate mounting compatible with I/A Series |
| Dimensions (H × W × D) | 102 mm × 45 mm × 104 mm |
| Weight | Approx. 0.5 kg |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5–95% RH non-condensing |
| Altitude | -300 to 3000 m |
| Indicators | LED status indicators for module and communication |
| Redundancy Support | Dual redundant communication paths |
| Compliance | IEC 61158 PROFIBUS standard |
FAQ
Q1: Is this product brand new and original?
A1: Yes, the FBM222 P0926TL is 100% brand new and original.
Q2: Do you have stock available?
A2: Yes, we have stock, and shipping takes 3 days to 2 weeks depending on order size.
Q3: Which logistics carriers do you use?
A3: We commonly use DHL, FedEx, and UPS for fast and secure delivery.
Q4: Can I return the product if there is a quality issue?
A4: Yes, we support returns within 30 days if any quality issue occurs.
Q5: How many devices can this module support?
A5: The FBM222 P0926TL supports up to 125 PROFIBUS slave devices per port.
Q6: Does the module support redundant communication?
A6: Yes, it provides dual-port redundancy, ensuring continuous operation during network faults.
