Overview

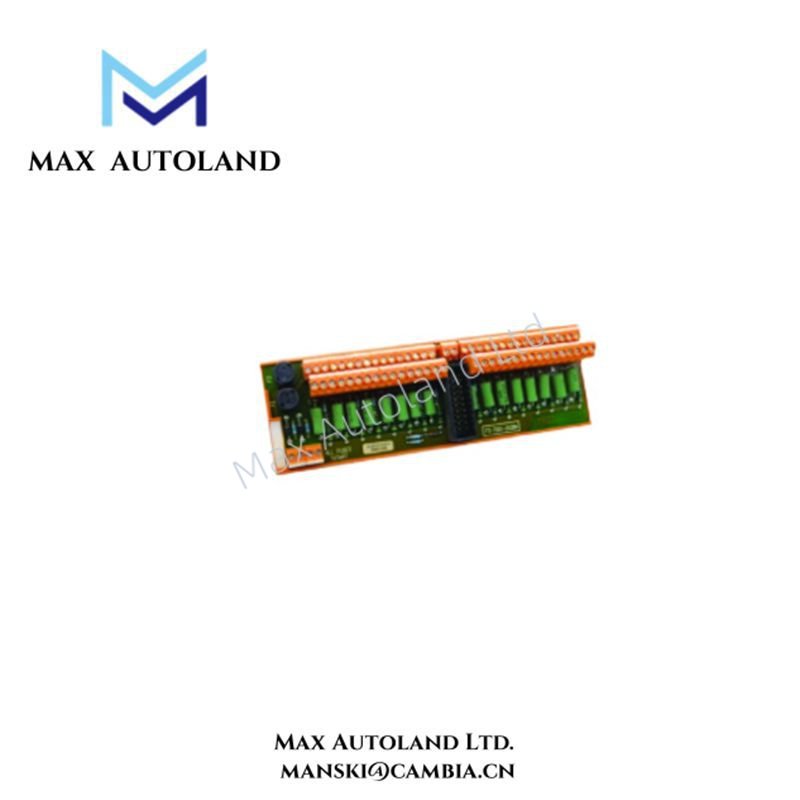

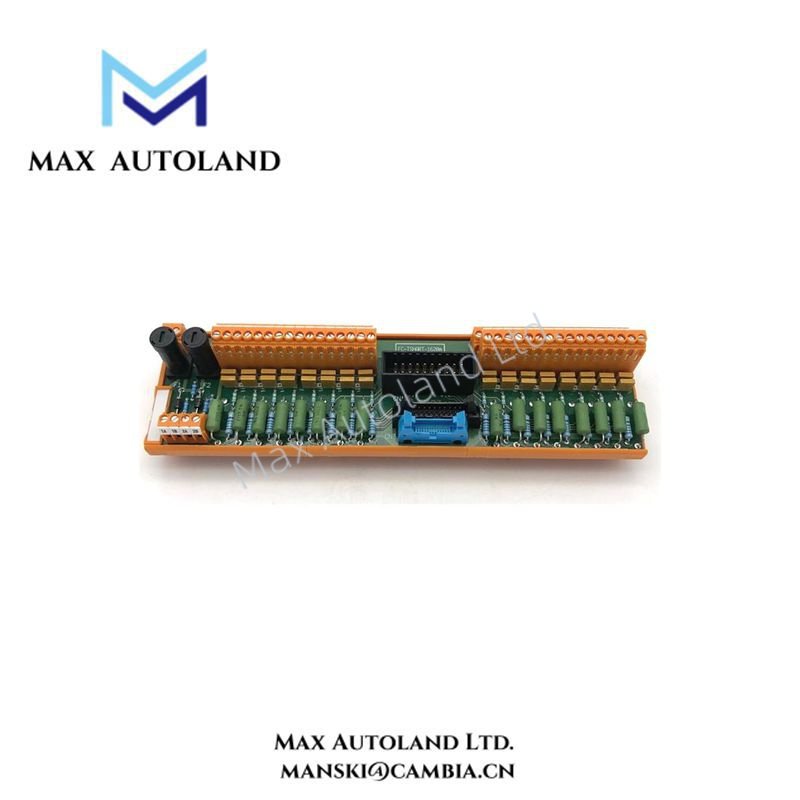

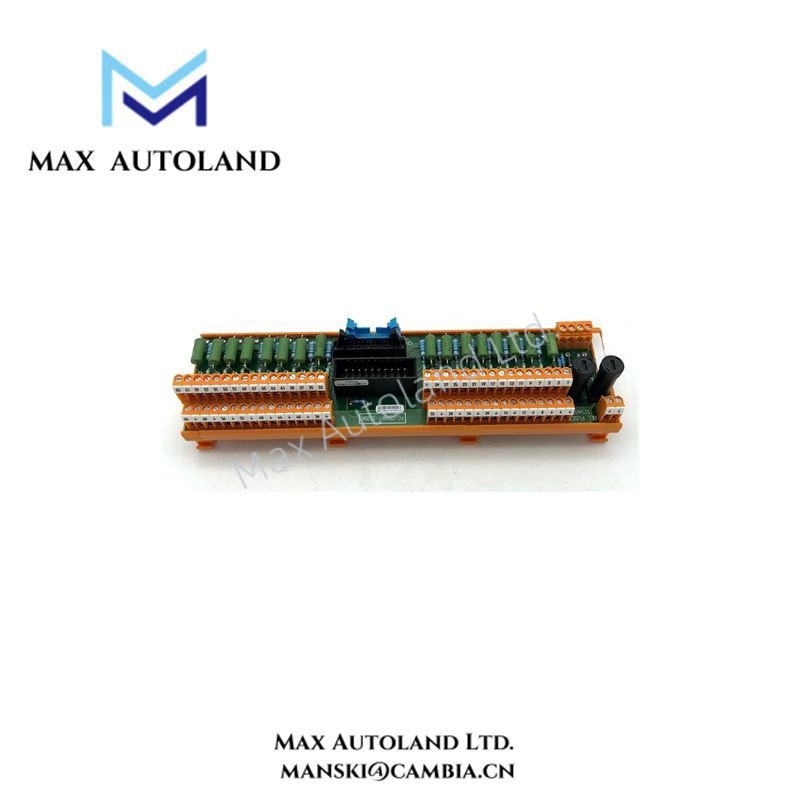

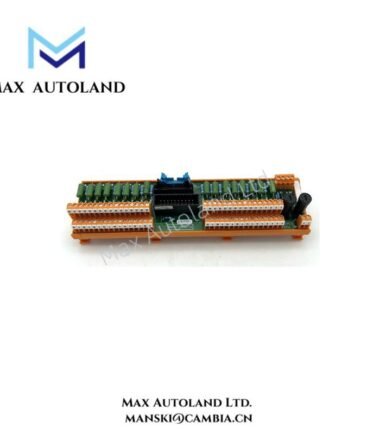

The Honeywell FC-TSHART-1620M belongs to the FSC / Safety Manager series and delivers precise analog input processing for safety-critical applications. It offers 16 channels supporting 0(4)–20 mA signals and operates on a 24 VDC power supply. Honeywell designs this module for robust industrial performance, ensuring reliable data acquisition while integrating seamlessly with Safety Manager systems.
The TSHART-1620M module includes sixteen analog input channels, which serve both safety-related and non-safety-related applications. These channels are organized into two groups of eight, each with a common 0 V reference. Furthermore, they connect via a system interconnection cable (SICC-0001/Lx) that plugs into the SIC connector on the FTA module, linking to a redundant pair of SAI-1620M modules for high-integrity signal processing.
Specification
| General | Type numbers: | FS-TSHART-1620m |
| FC-TSHART-1620m | ||
| Approvals: | CE,TUV,UL,CSA,FM | |
| Input | Number of input channels: | 16(2 groups of 8 with common OV) |
| Power requirements: | 30V DC external,3 mA(without input loop Loads) | |
| Input current: | 0-25 mA | |
| Input resistance: | 250Ω(±1%) | |
| Output | To passive transmitters (Vext): | |
| ·Output resistance: | 270Ω(±5%) | |
| ·Igniting current per channel: | <120 mA at 30VDC | |
| To SAl-1620m module: | ||
| ·Output voltage | 0-4VDC | |
| ·Accuracy | 0.10% | |
| To HART multiplex unit: | ||
| ·Output voltage | Max.5V peak-peak | |
| ·Series impedance | >100 nF | |
Manual/Datasheet PDF
