Overview

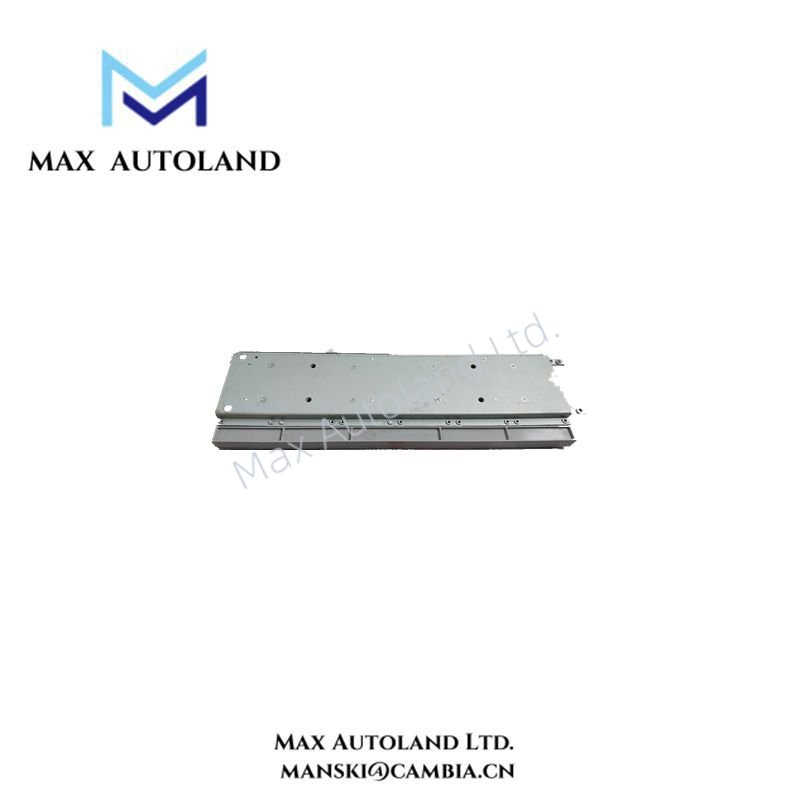

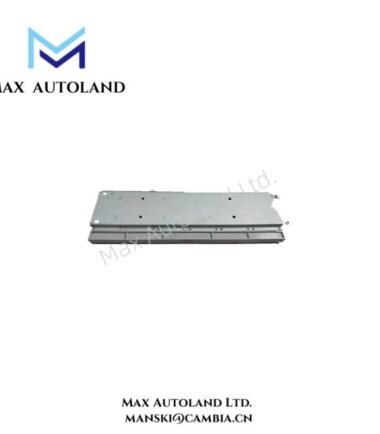

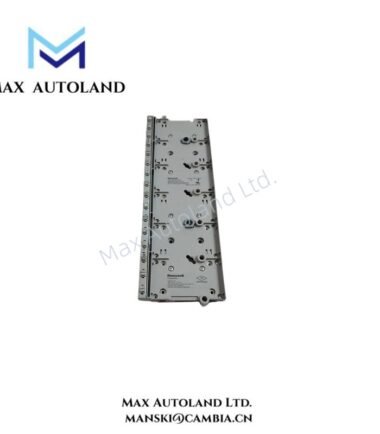

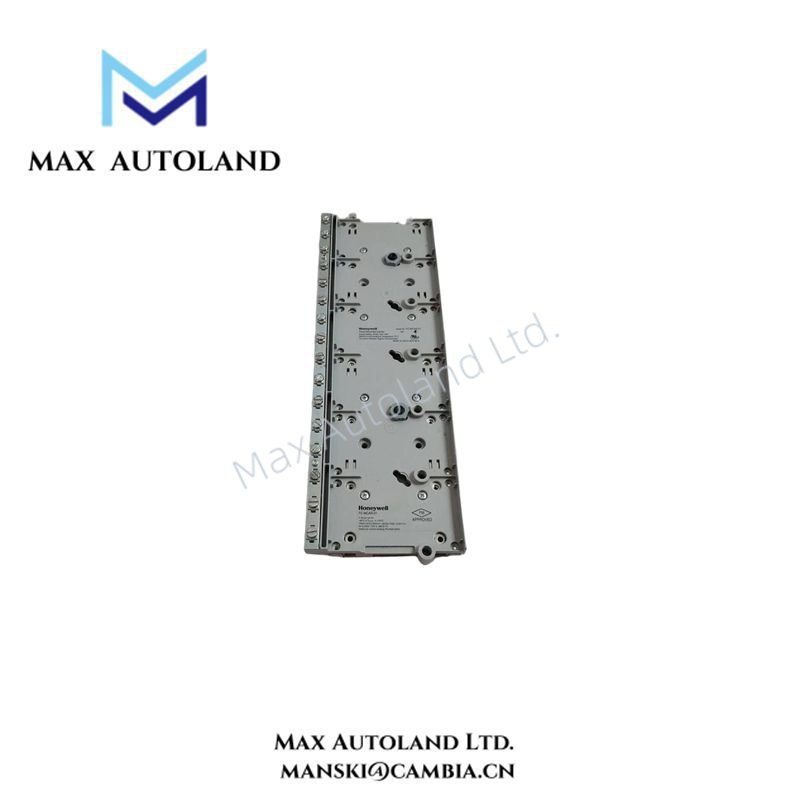

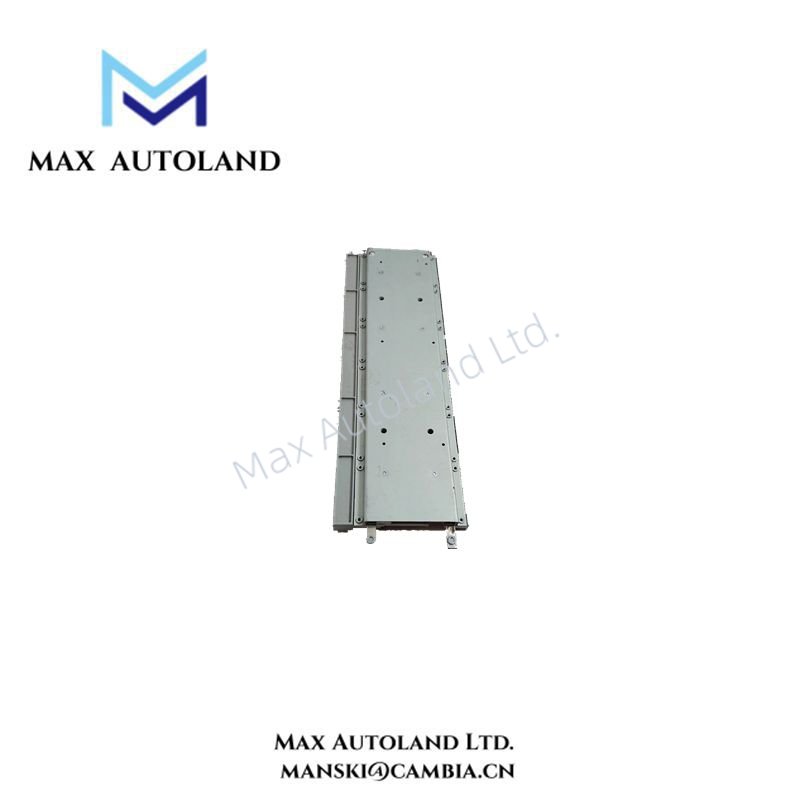

The Honeywell FC-MCAR-01 is a robust mounting carrier designed to securely support IOTA-R24 assemblies in industrial automation systems. Engineered for durability and ease of installation, it provides a stable platform for your components, ensuring reliable performance in demanding environments.
The MCAR-01 is a carrier that can be screwed on any flat surface.
The MCAR-01 can carry one IOTA-R24 assembly. The below figure shows the physical appearance and the
coordinates of the four mounting holes.
The MCAR-01 consists of:
A metal profile
A plastic cover plate
A ground rail with 16 ground connection screws
Two power rails with M5 holes (+24V and 0V)
Four mounting holes (6.35 mm diameter)
Specification
| General | Type number: | FC-MCAR-01 |
| Operating temperature: | -40..+70℃(-40..+158°F) | |
| Storage temperature: | -40..+85℃(-40..+185°F) | |
| Relative humidity: | 10..95%(non condensing) | |
| Pollution: | Pollution degree 2 or better | |
| Approvals: | CE;UL | |
| Power | Supply voltage: | 24VDC-15%.+30% |
| Supply current: | none | |
| Supply rail current: | max.40A | |
| Connections | 24V supply: | 2×M5 |
| Ground: | 16×M5 | |
| Physical Data | Dimensions(HxW×D): | 32×145.6×478 mm 2.52×5.73×18.8 in |
| Weight | 1.1kg 2.4Lbs |
