Overview

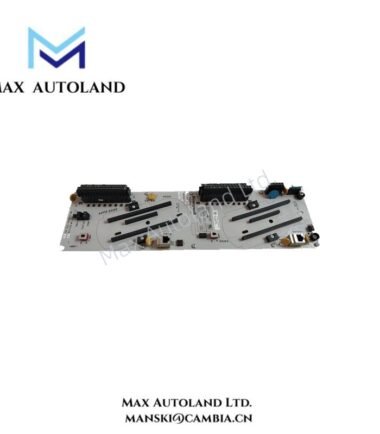

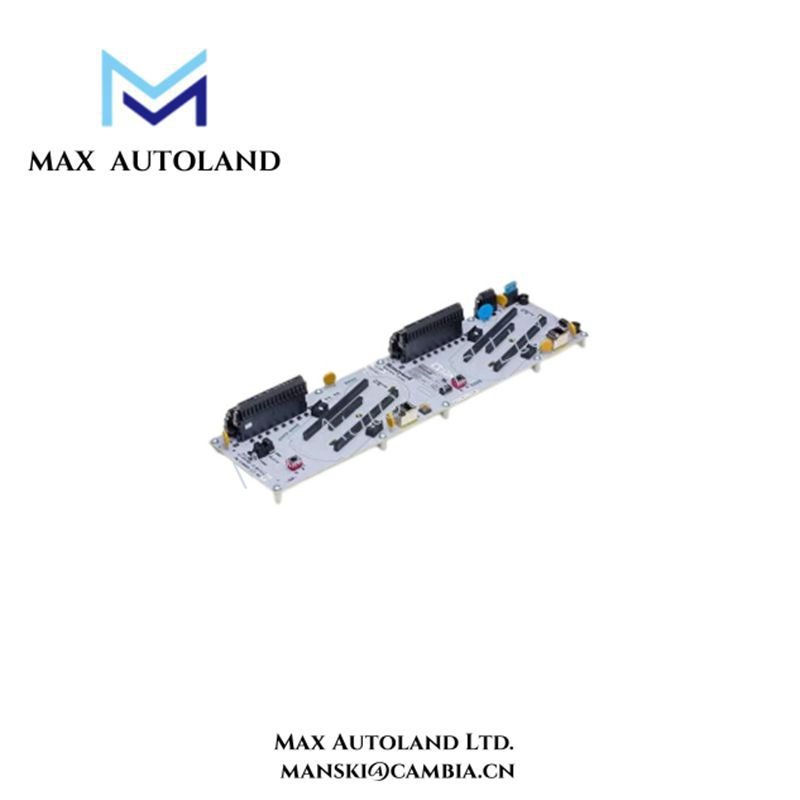

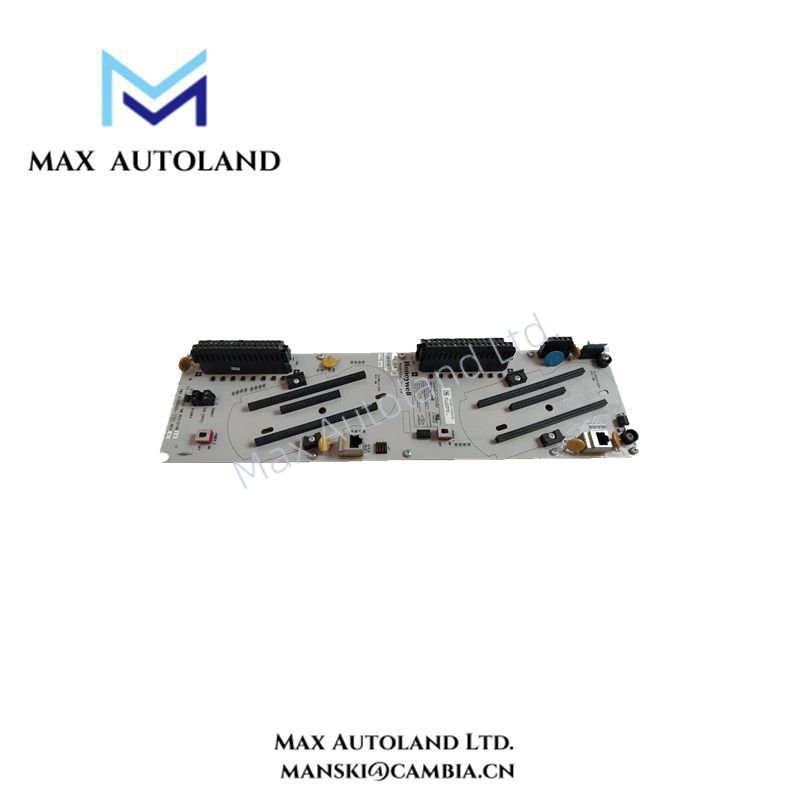

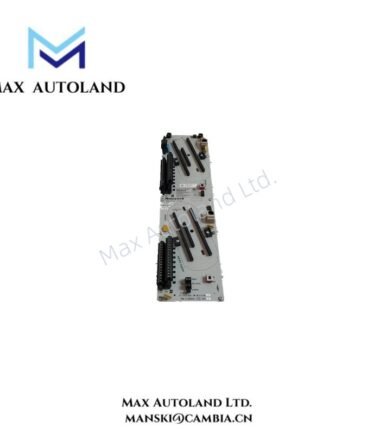

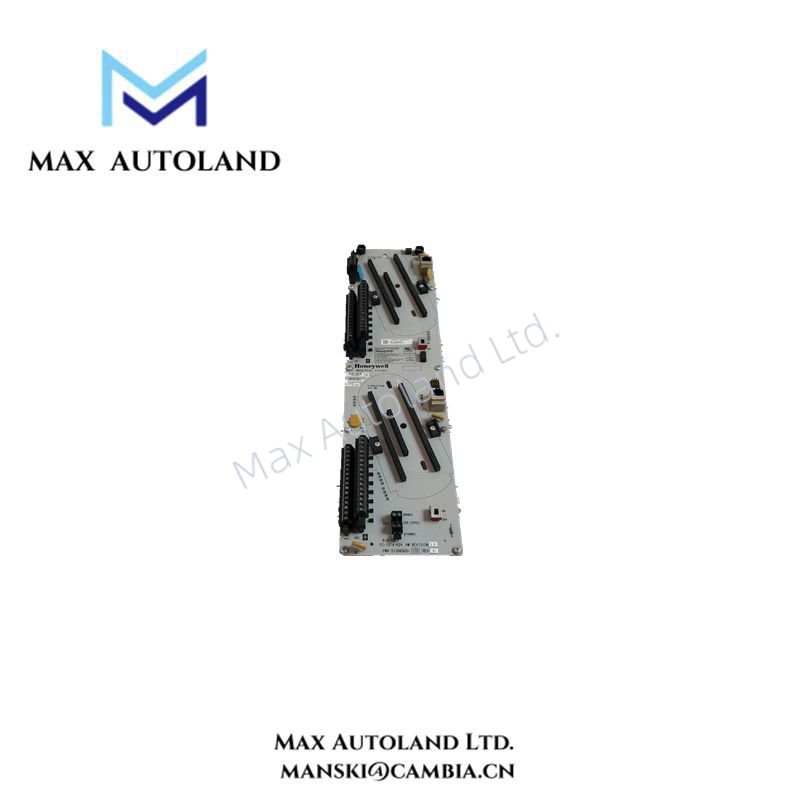

The Honeywell FC-IOTA-R24 is a robust Redundant I/O Termination Assembly designed to interface field devices with the Safety Manager system. It ensures secure and efficient connections, supporting reliable data acquisition and control in industrial automation applications.
Specification
| General | Type number: | FC-IOTA-R24 |
| Operating temperature: | -40..+70℃(-40..+158°F) | |
| Storage temperature: | -40..+85℃(-40.+185°F) | |
| Relative humidity: | 10..95%(non condensing) | |
| Pollution: | Pollution degree 2 or better | |
| Approvals: | CE,UL,TUV | |
| Power | Supply voltage: | 24VDC-15%.+30% |
| Supply load: | max.10A | |
| Reverse polarity protection: | parallel diode(blows the fuse) | |
| V+pins: | ||
| ·Max.current: | 1A(total of four CN3 pins) | |
| ·Max.voltage drop: | <1.5V(at 0.7A) | |
| ·Max.reverse voltage: | 36V | |
| Fuse | Fuse rating: | 15A |
| Fuse dimensions: | Blade 5×19 mm | |
| Voltage rating AC: | – | |
| Voltage rating DC: | 32V | |
| Manufacturer: | Littelfuse | |
| Manufacturer PN: | 0287015.PXS |
Manual/Datasheet PDF
