Overview

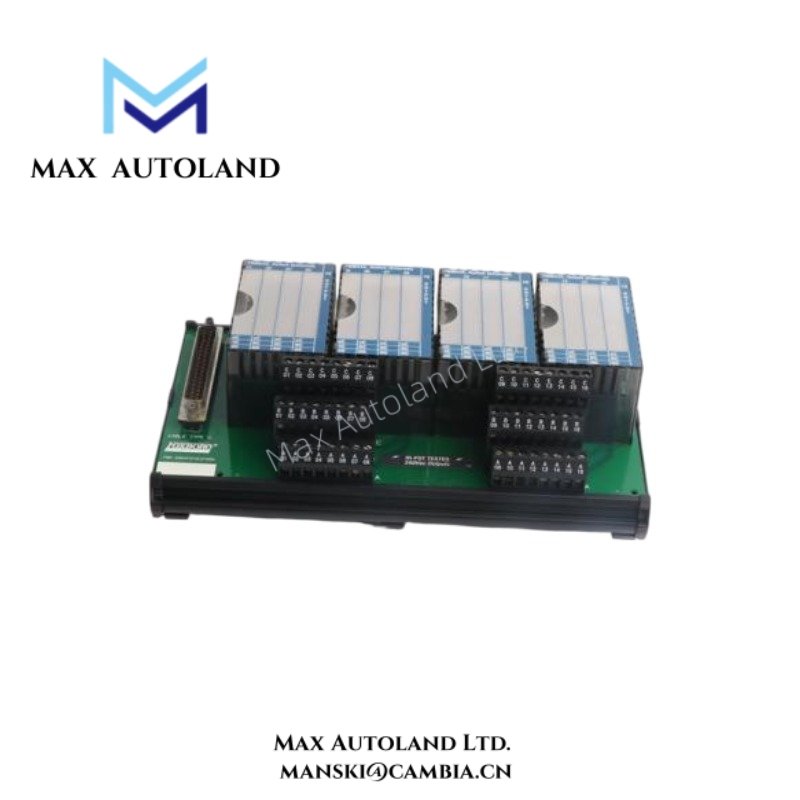

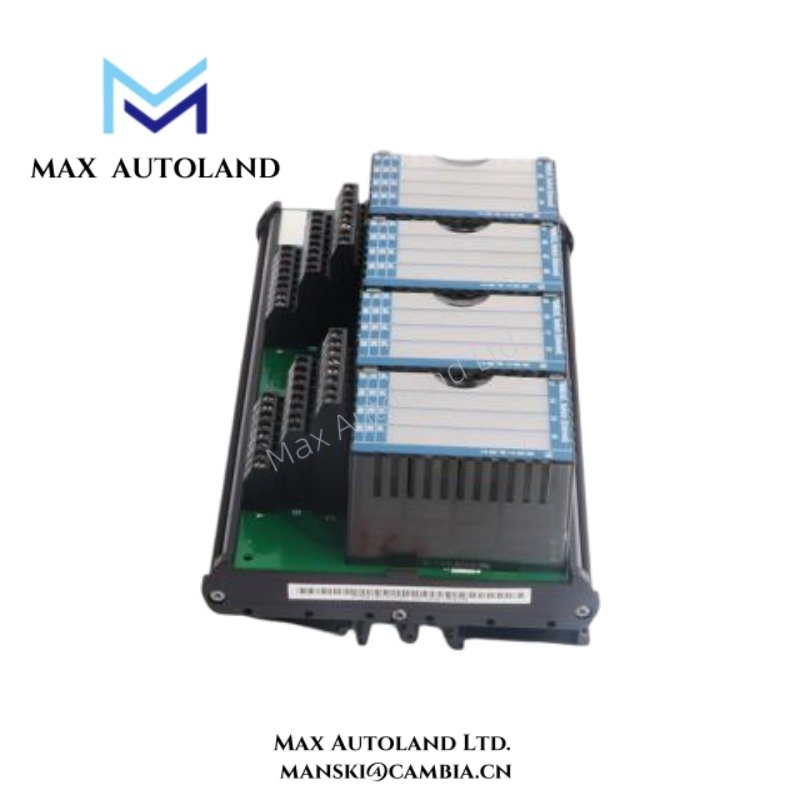

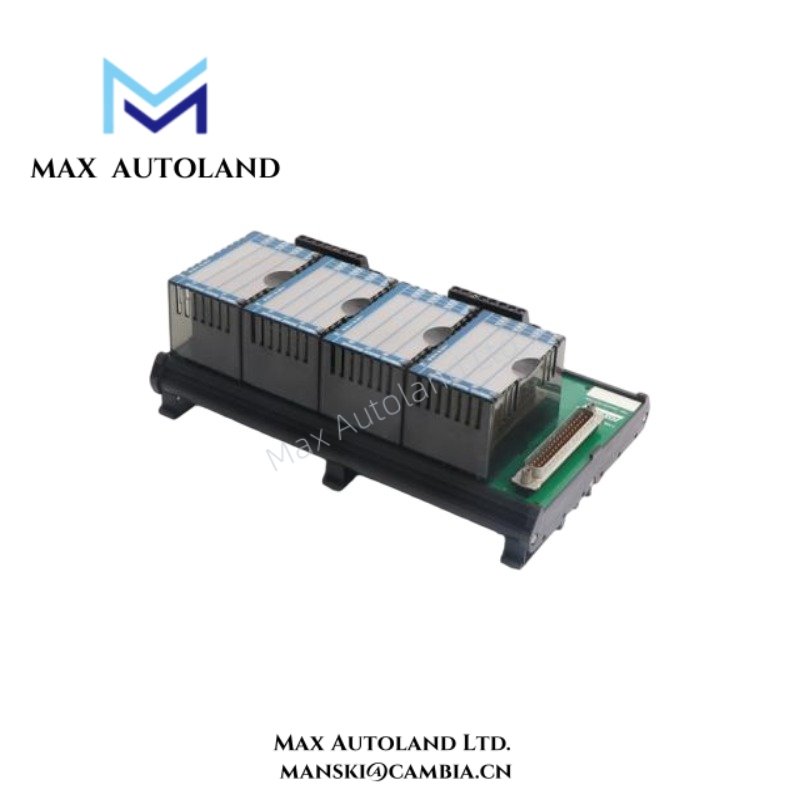

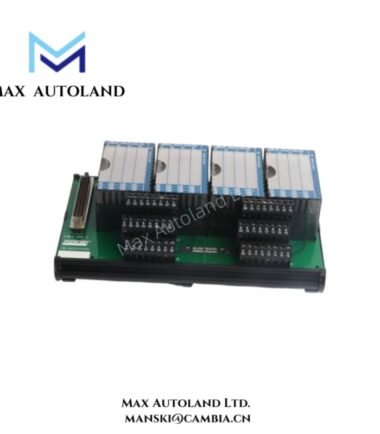

The FBM242 P0916NG serves as a high-performance termination assembly for Foxboro I/A Series systems, delivering reliable 16-channel switching through externally sourced SPDT (Form C) relays. Consequently, it ensures robust channel isolation while enabling flexible connectivity across multiple applications. Each relay actively handles diverse loads, including resistive, inductive, DC, and AC, which allows engineers to integrate it seamlessly into various process control systems.
In addition, this termination assembly connects directly with baseplates and system modules, providing a compact form factor that simplifies field installation. Furthermore, the FBM242 efficiently routes signals and consistently meets industrial safety and compliance standards. As a result, it offers both reliability and versatility, making it an ideal choice for demanding automation environments.
Specification
| Specification Category | Details |
|---|---|
| Model | FBM242 P0916NG |
| Manufacturer | Foxboro, I/A Series |
| Termination Assembly Type | 16-channel SPDT (Form C) relays, externally sourced |
| Channel Count | 16 digital channels (grouped for isolation) |
| DC Load Ratings | <30 V DC at 5 A maximum125 V DC at 600 mA resistive load125 V DC at 240 mA inductive load |
| AC Load Ratings | Up to 250 V AC at 5 A maximum |
| Electrical Life of Relays | 100,000 operations at rated resistive load5,000,000 operations at no load |
| Channel Isolation | Provided by termination assembly relays; ensures signal separation between channels |
| Termination Assembly Part Number | RH916YY (supersedes P0916YY, P0916NG) |
| Mounting | Compatible with modular baseplates of Foxboro I/A Series; supports horizontal/vertical DIN rail or 19-inch rack mounting |
| Field Wiring Connections | Screw-type terminals for easy installation |
| Cable Types | Polyurethane or Low Smoke Zero Halogen (LSZH) wiring recommended |
| Compliance & Certifications | UL listed for U.S. and Canada, ATEX certified Ex nA IIC T4 Gc, RoHS compliant |
| Physical Dimensions (Approx.) | Height: 102 mm (4 in), 114 mm (4.5 in) including mounting lugsWidth: 45 mm (1.75 in)Depth: 104 mm (4.11 in) |
| Weight | Approx. 0.9–1.0 kg (varies by configuration) |
| Environmental | Refer to Foxboro Standard and Compact 200 Series Subsystem User’s Guide for ambient temperature and enclosure guidance |
| Relay Type | Single-Pole, Double-Throw (SPDT), Form C |
| Switching Features | Supports resistive, inductive, DC, and AC loads; outputs may require protective diode or MOV for inductive loads |
| Communication Interface | Works with Foxboro I/A Series modules and system baseplates for integrated control |
| Warranty & Service | Factory original, full support; 30-day return policy for quality issues |
FAQ
Q1: Is this termination assembly new and genuine?
A1: Yes, the FBM242 P0916NG is 100% factory original and new.
Q2: How quickly can it be shipped?
A2: We ship within 3 days to 2 weeks depending on order size. Common logistics include DHL, UPS, and FedEx.
Q3: What is the return policy?
A3: If you encounter any quality issues, returns are supported within 30 days.
Q4: What load types can the relays handle?
A4: Relays can handle resistive, inductive, DC, and AC loads up to specified voltage and current ratings.
Q5: Is channel isolation guaranteed?
A5: Yes, each channel is isolated via the termination assembly relays for safe and reliable operation.
