Overview

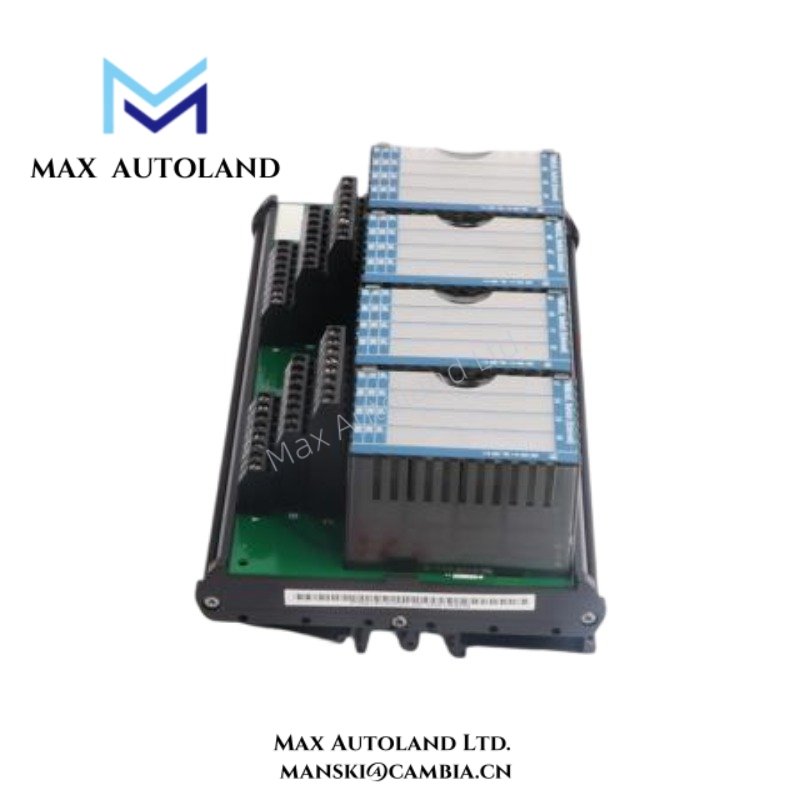

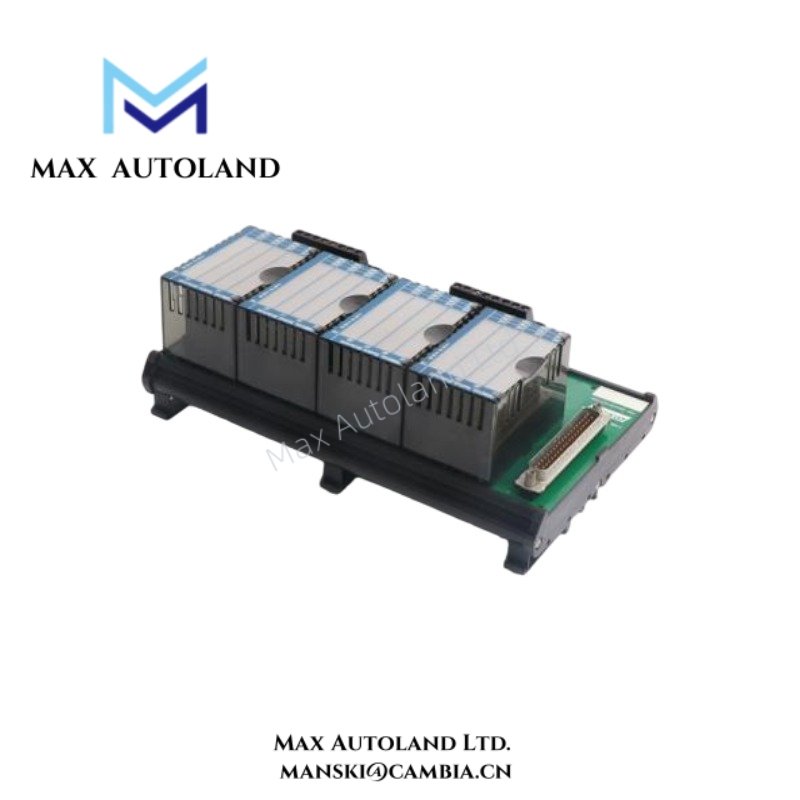

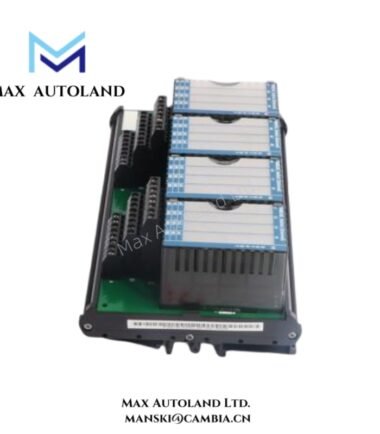

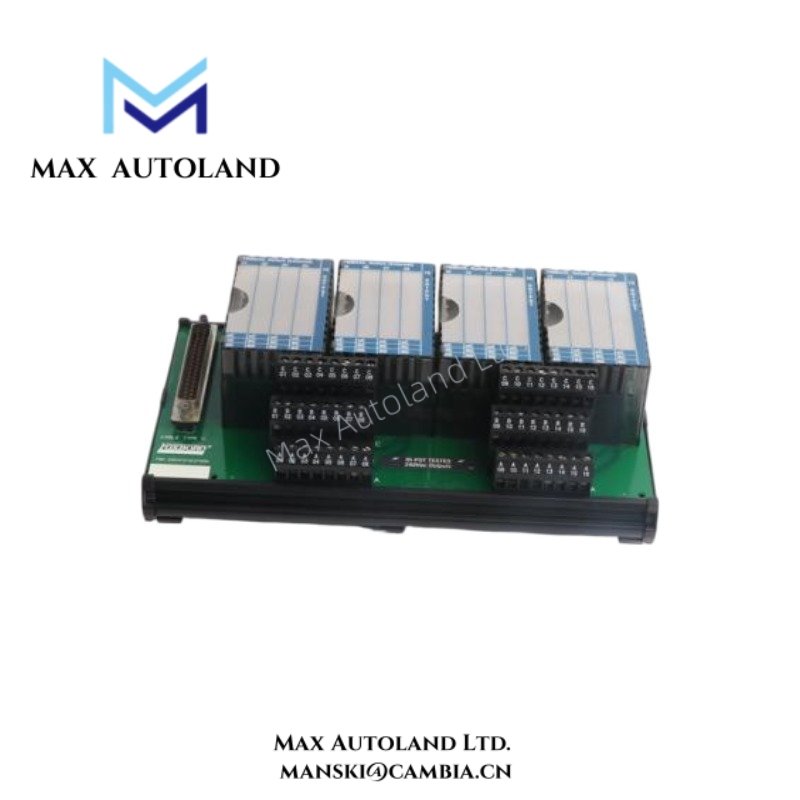

The Foxboro FBM242 P0916NG termination assembly provides stable field wiring connections for industrial automation systems.
Moreover, this assembly belongs to the Foxboro I/A Series, which ensures seamless compatibility with control modules.
Engineers use FBM242 P0916NG to simplify signal termination and improve wiring organization in control cabinets.
Additionally, the design enhances connection reliability and reduces installation complexity in demanding environments.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM242 P0916NG |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Series | I/A Series DCS |
| Product Type | Termination Assembly |
| Function | Field wiring termination and signal interface |
| Terminal Points | Multiple screw-type terminal connections |
| Connection Type | Screw clamp terminals |
| Supported Signals | Analog and discrete signal compatibility |
| Interface Compatibility | Works with corresponding FBM modules |
| Wiring Capacity | Supports standard industrial wire gauges |
| Insulation Material | High-grade industrial insulating materials |
| Mounting Method | DIN rail or panel mounting |
| Dimensions | Approx. 45 mm × 200 mm × 120 mm |
| Weight | Approx. 0.8–1.0 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Contact Resistance | Low resistance for stable signal transmission |
| Current Rating | Suitable for standard industrial signal levels |
| Voltage Rating | Designed for low-voltage industrial signals |
| Protection Features | Insulated terminals and secure connection design |
| EMC Performance | Resistant to electromagnetic interference |
| Mechanical Durability | High resistance to vibration and mechanical stress |
FAQ
Q1: What is the main function of the FBM242 P0916NG?
The FBM242 P0916NG provides secure field wiring termination for industrial control systems.
Q2: What type of connections does it support?
The FBM242 P0916NG supports screw-type terminal connections for reliable and stable wiring.
Q3: Is the product new and original?
Yes, we supply FBM242 P0916NG as brand new original units with guaranteed authenticity and performance.
Q4: Do you have stock and how fast can you ship?
We keep FBM242 P0916NG in stock, and we ship within 3 days to 2 weeks depending on order size.
Q5: What logistics services do you use?
We usually ship FBM242 P0916NG using reliable carriers such as DHL for fast global delivery.
Q6: What is your return policy?
We support returns within 30 days if any quality issues appear with FBM242 P0916NG.
Reviews
There are no reviews yet.
