Overview

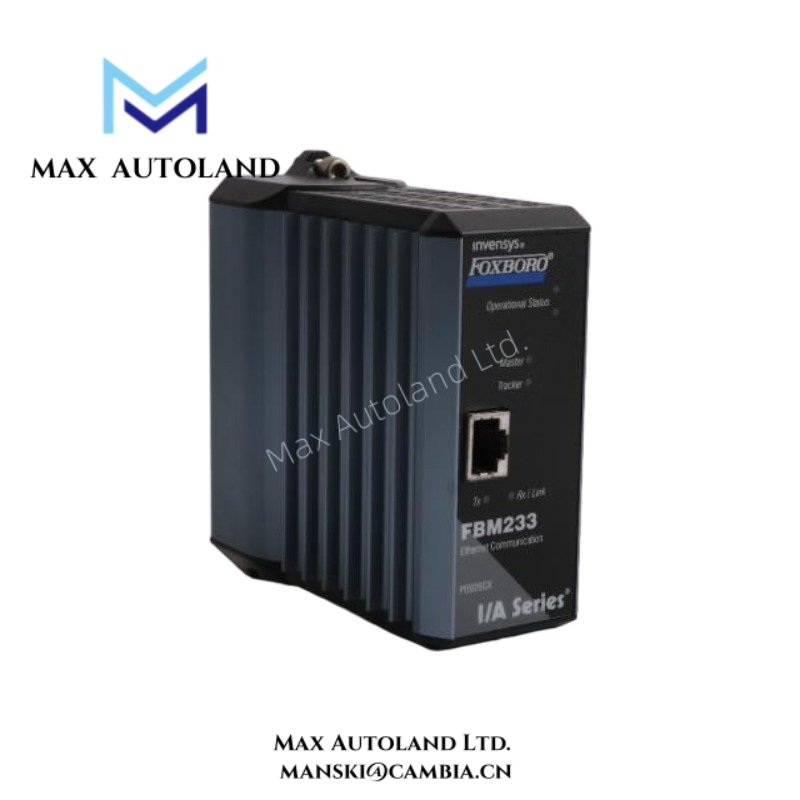

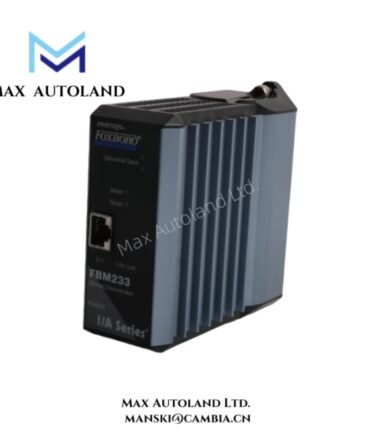

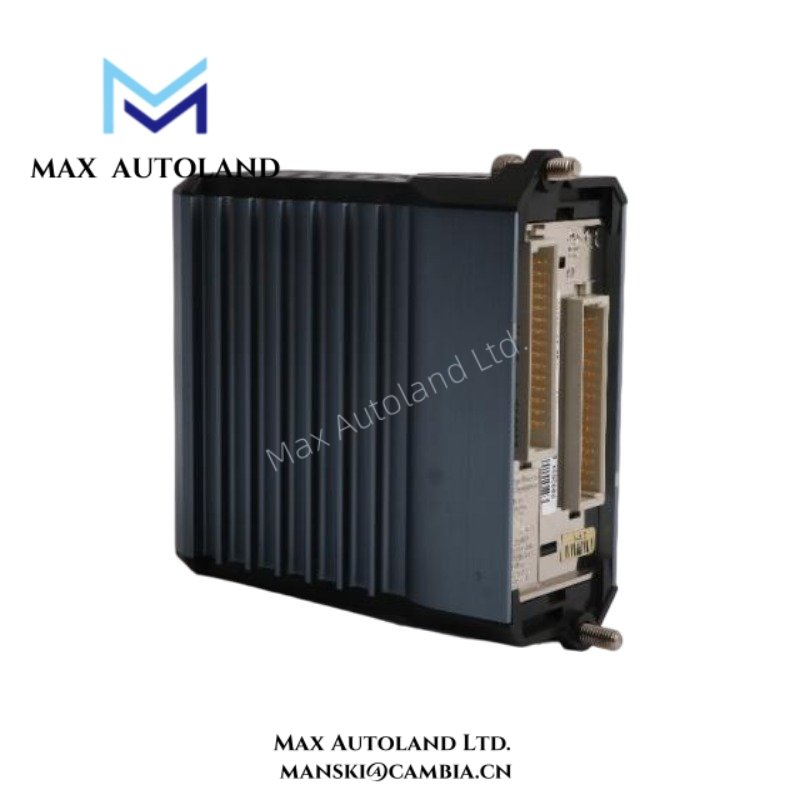

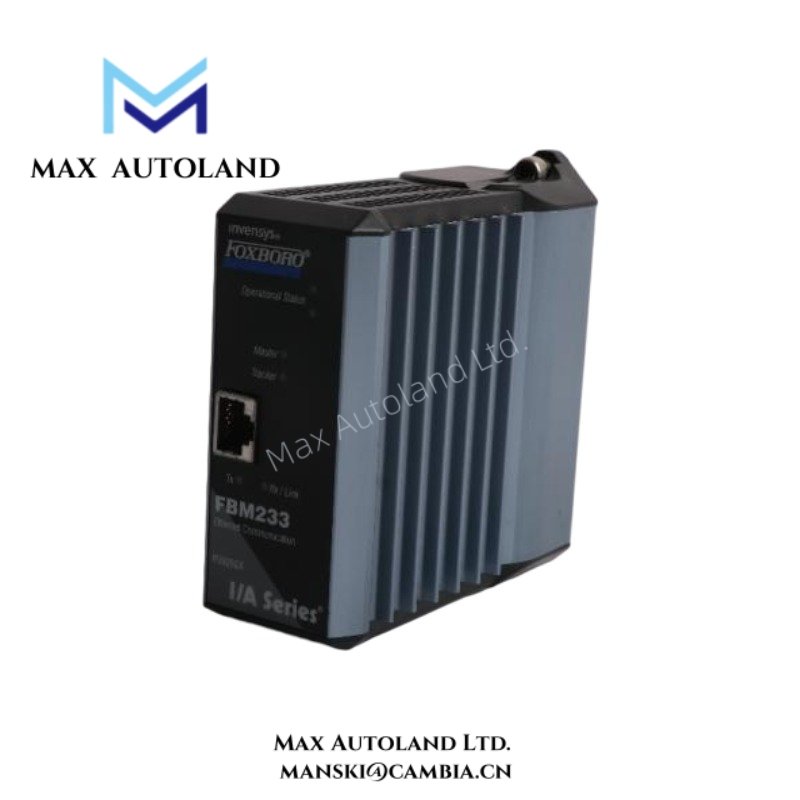

The FBM233 Ethernet communication module integrates seamlessly with Foxboro I/A Series control systems, providing robust networking capabilities that efficiently connect multiple field devices. Additionally, it mounts on a modular baseplate, which users can install horizontally or vertically on DIN rails, and it also supports 19-inch rack installation, further enhancing cabinet flexibility and system organization. Moreover, the FBM233 enables high-speed data transmission through RJ-45 connectors, supporting distances ranging from 1 meter up to 100 meters. Its compact design allows easy integration into industrial environments while minimizing space usage. Consequently, engineers can deploy this module quickly and maintain efficient network connectivity across process automation systems.
Specification
| Parameter | Specification | Details / Notes |
|---|---|---|
| Model | FBM233 | Ethernet Communication Module |
| Manufacturer | Foxboro (Schneider Electric) | Part of I/A Series |
| Module Type | Communication Module | Supports Ethernet networking for field devices |
| Mounting | Modular baseplate | Can be installed horizontally or vertically on DIN rails; also supports 19-inch rack using mounting kit |
| Height | 102 mm (4 in) | 114 mm (4.5 in) including mounting lugs |
| Width | 45 mm (1.75 in) | Compact profile for industrial enclosures |
| Depth | 104 mm (4.11 in) | Standard module depth for 200 Series baseplates |
| Weight | 284 g (10 oz) | Approximate weight per module |
| Cable Lengths | 1 m to 100 m (3.3 ft to 330 ft) | Distance from module to connected hub, switch, or device |
| Connectors | RJ-45 | Standard Ethernet interface |
| Null Hub Adapter | P0971PK | Optional accessory for specific network configurations |
| Compatible Ethernet Switches | P0972WE (DIN rail-mounted 5-port 10/100 Base TX) | Connects up to 4 devices per switch; multiple switches support up to 64 devices |
| Rack/Chassis Ethernet Support | Fast Ethernet switches | Refer to Foxboro Evo Control Network Ethernet Equipment (PSS 31H-7NW_EQUIP) |
| Operating Environment | Industrial | Mounting flexibility allows use in cabinets, racks, or DIN rail enclosures |
| Construction Material | Polyamide / Polycarbonate | Designed for industrial robustness and durability |
| Connectivity Features | Multi-switch interconnection | Enables high-speed data transfer across complex control systems |
| Compliance | CE, UL, ATEX | Meets industrial safety and electromagnetic compatibility standards |
| Notes | Modular integration | Compatible with I/A Series baseplates and network equipment for process automation |
FAQ
Q1: What is the mounting option for FBM233?
The FBM233 mounts on a modular baseplate, which can be installed on DIN rails or 19-inch racks.
Q2: How many devices can FBM233 support?
Up to 64 devices can connect through multiple DIN rail-mounted switches or rack-mounted fast Ethernet switches.
Q3: What cable type does FBM233 use?
It uses standard RJ-45 Ethernet cables, supporting lengths from 1 meter to 100 meters.
Q4: Is FBM233 available in stock?
Yes, the module is brand new and original. Stock is available for immediate shipment.
Q5: How quickly can FBM233 be shipped?
Shipping is arranged within 3 days to 2 weeks depending on order size, using logistics such as DHL.
Q6: What if the module has a quality issue?
We provide a 30-day return policy for any defects or quality issues after delivery.
