Overview

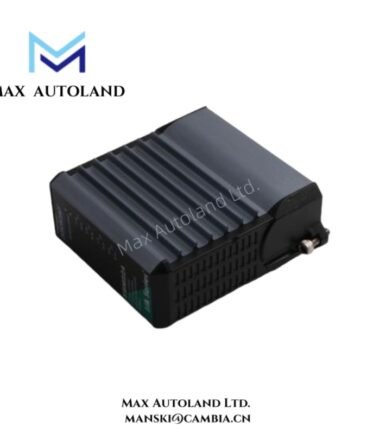

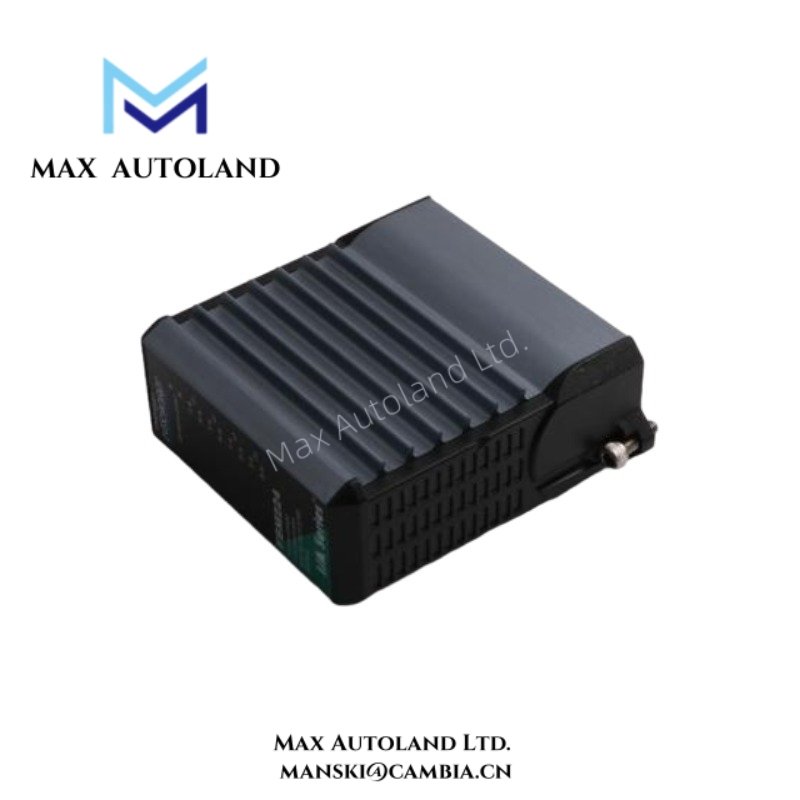

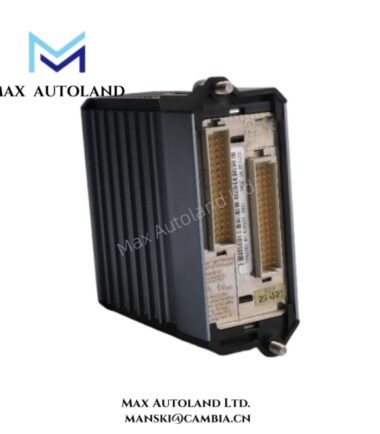

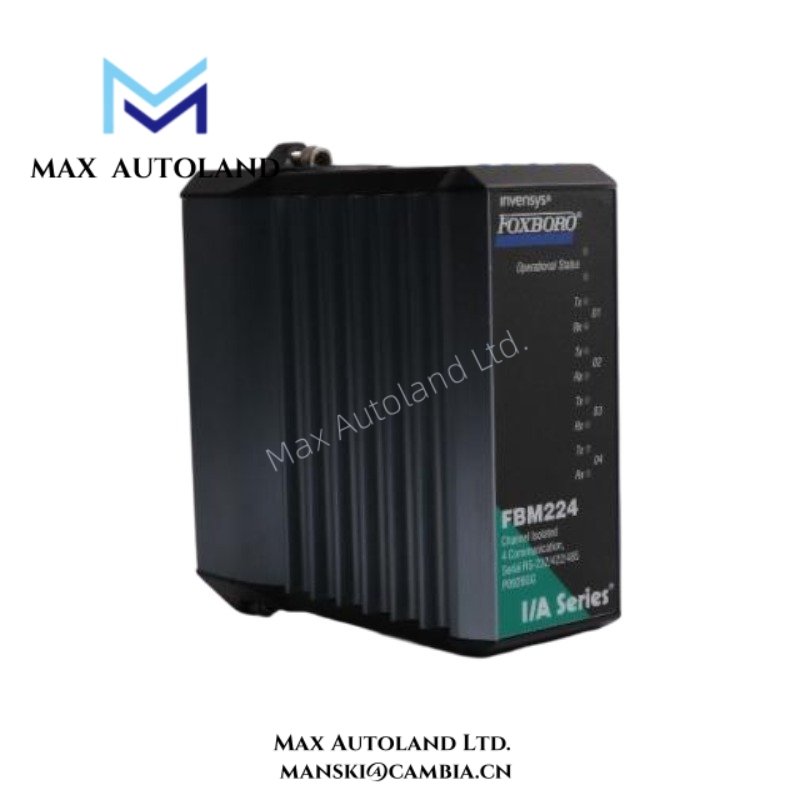

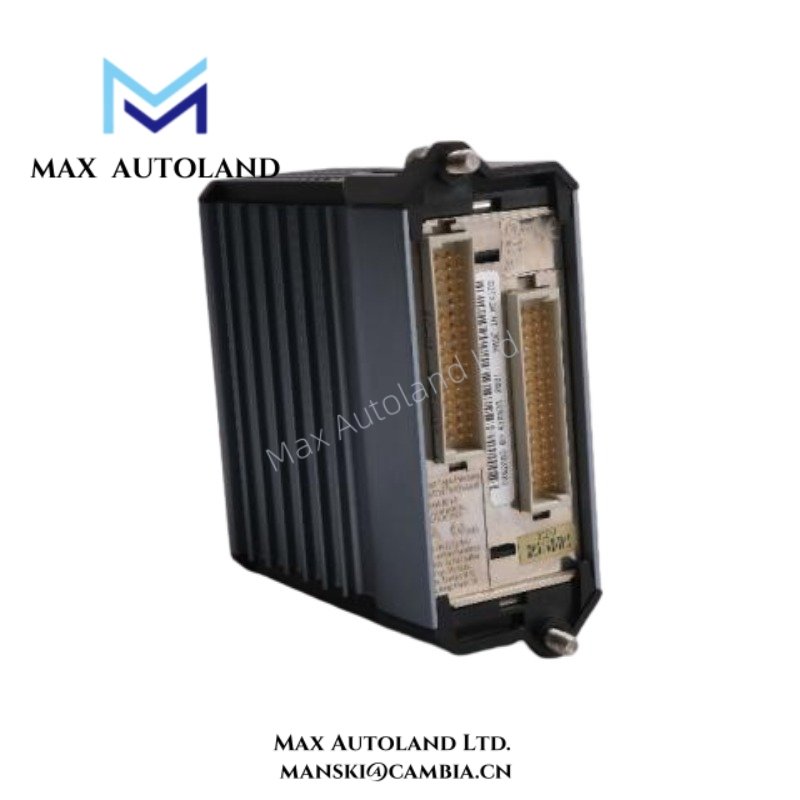

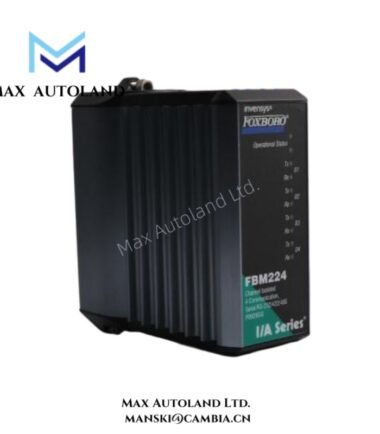

The FBM224 P0926GG from Foxboro is a high-efficiency communication interface module designed for I/A Series systems. It ensures accurate signal transfer across analog and digital channels while maintaining robust isolation. The module supports modular mounting and provides reliable connectivity for complex automation architectures.
Specification
| Specification | Details |
|---|---|
| Manufacturer | Foxboro |
| Model | FBM224 P0926GG |
| Module Type | Communication Interface Module |
| Series | I/A Series |
| Channels | 16 isolated analog input channels |
| Input Types | ±10 VDC analog, 4–20 mA, RTD, thermocouple |
| Input Resolution | 16-bit ADC per channel |
| Isolation | Channel-to-channel, channel-to-backplane, and channel-to-ground |
| Accuracy | ±0.05% of full scale |
| Sample Rate | 20 ms per channel typical |
| Mounting Options | Horizontal/vertical DIN rail, 19-inch rack, 100 Series conversion structure |
| Power Supply | 24 VDC nominal, 3–5 W typical |
| Backplane Current | 50 mA max per module |
| Dimensions (H × W × D) | 127 mm × 30 mm × 150 mm |
| Weight | 0.65 kg |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -40–85 °C |
| Humidity | 5–95% RH, non-condensing |
| Shock | 15 g, 11 ms, IEC 60068-2-27 |
| Vibration | 5–9 Hz: ±3 mm, 9–150 Hz: 0.5 g, IEC 60068-2-6 |
| Connector Type | Screw terminals for inputs, edge connector to backplane |
| LED Indicators | Power, module status, communication activity |
| Communication | I/A Series bus compatible |
| Compliance | CE, UL Listed, Industrial Grade |
FAQ
Q1: Is this module brand new and original?
A1: Yes, the FBM224 P0926GG is 100% original and factory-sealed.
Q2: How fast can you ship this product?
A2: We maintain stock. Typical shipping is 3 days to 2 weeks depending on order size.
Q3: Which logistics carriers do you use?
A3: We commonly use DHL, FedEx, and UPS for timely delivery.
Q4: Can I return the module if there is a quality issue?
A4: Yes, we support returns within 30 days for any manufacturing defects.
Q5: What input types does the module support?
A5: It supports ±10 VDC analog, 4–20 mA, RTD, and thermocouple inputs.
Q6: What mounting options are available?
A6: The module supports horizontal/vertical DIN rail, 19-inch rack, and 100 Series conversion mounting.
Reviews
There are no reviews yet.
