Overview

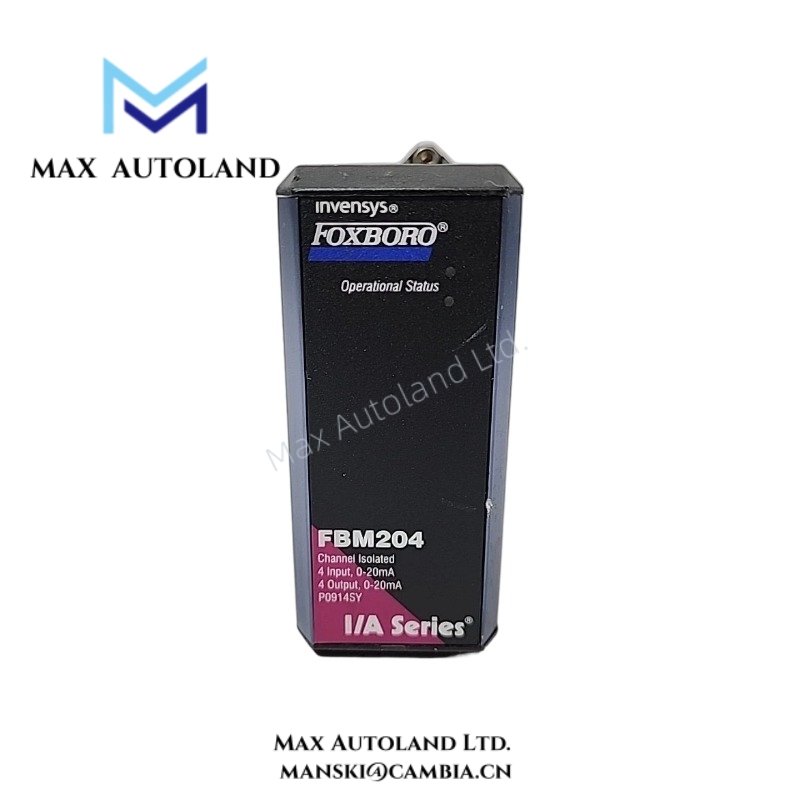

The Foxboro FBM204 P0914SY module provides accurate analog signal processing for industrial control and monitoring systems.
Moreover, this module belongs to the Foxboro I/A Series, which ensures seamless integration with distributed control architectures.
Engineers select FBM204 P0914SY for reliable multi-channel signal acquisition in demanding industrial environments.
Additionally, the module design enhances signal stability and minimizes interference during continuous operation cycles.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM204 P0914SY |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Series | I/A Series DCS |
| Module Type | Analog I/O Module |
| Input Channels | 4 independent analog channels |
| Input Signal Types | 4–20 mA, 0–20 mA, 0–10 V |
| Output Capability | Analog signal interface (system dependent) |
| Resolution | High-resolution A/D conversion |
| Accuracy | ±0.1% of span (typical) |
| Channel Isolation | Channel-to-channel and channel-to-ground isolation |
| Isolation Voltage | 1500 V AC (typical) |
| Input Impedance | Optimized for voltage and current signals |
| Scan Rate | Fast update rate for real-time monitoring |
| Signal Processing | Linear signal conversion and filtering |
| Power Supply | Powered via I/A Series baseplate |
| Power Consumption | <5 W typical |
| Heat Dissipation | Low thermal output with efficient energy handling |
| Communication Interface | Backplane communication with controller |
| Terminal Interface | Field wiring via termination assembly |
| Mounting Method | DIN rail or baseplate mounting |
| Dimensions | Approx. 45 mm × 200 mm × 150 mm |
| Weight | Approx. 1.0–1.2 kg |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| EMC Protection | Industrial electromagnetic compatibility compliance |
| Protection Features | Overvoltage protection and signal fault detection |
| Diagnostics | Channel status monitoring and system diagnostics |
| Redundancy Support | Compatible with redundant system configurations |
FAQ
Q1: How many channels does the FBM204 P0914SY support?
The FBM204 P0914SY supports four independent analog input channels for precise signal monitoring.
Q2: What signal types does this module accept?
The FBM204 P0914SY accepts 4–20 mA, 0–20 mA, and 0–10 V analog input signals.
Q3: Is the product new and original?
Yes, we supply FBM204 P0914SY as brand new original units with guaranteed authenticity and performance.
Q4: Do you have stock and how fast can you ship?
We keep FBM204 P0914SY in stock, and we ship within 3 days to 2 weeks depending on order size.
Q5: What logistics services do you use?
We usually ship FBM204 P0914SY using reliable carriers such as DHL for fast global delivery.
