Overview

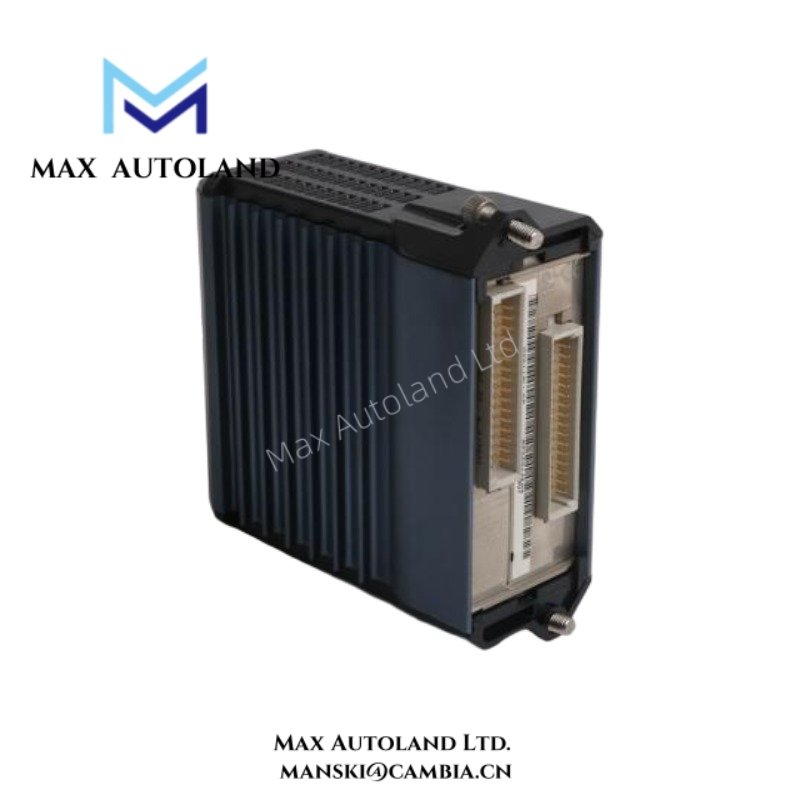

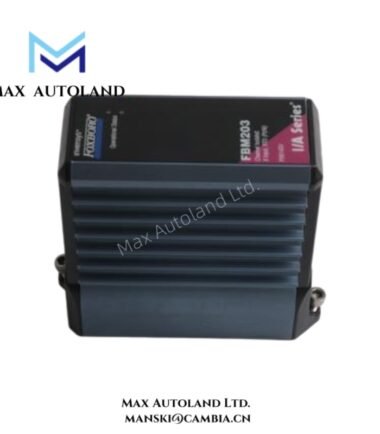

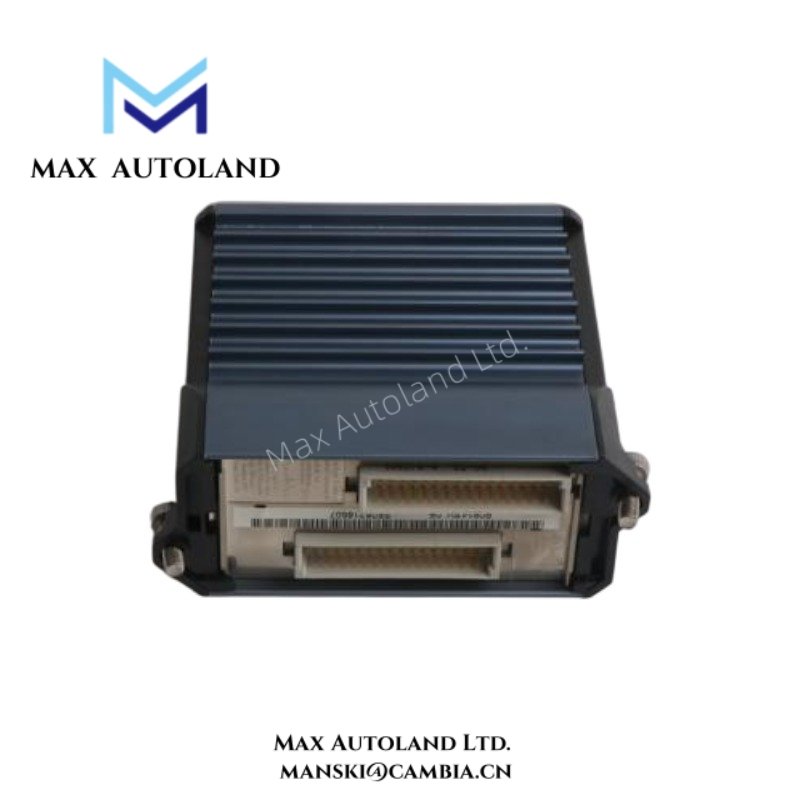

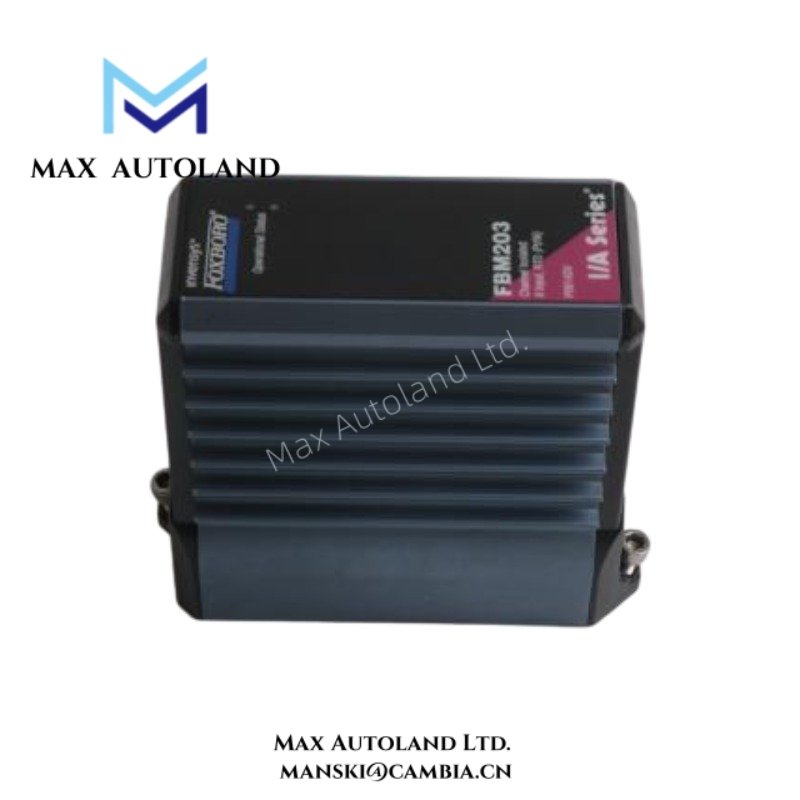

The FBM203 P0914SV RTD input module delivers precise temperature acquisition for Foxboro I/A Series control systems.
It supports multiple RTD sensor types while ensuring stable and accurate signal conversion in industrial environments.
Moreover, FBM203 P0914SV integrates advanced sigma-delta conversion technology, which improves measurement resolution and accuracy.
It also supports isolated channels, which protect signals from electrical interference and enhance system reliability.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | FBM203 P0914SV |
| Manufacturer | Foxboro (Schneider Electric) |
| Series | I/A Series |
| Module Type | RTD Analog Input Module |
| Input Channels | 8 independent, fully isolated channels |
| Input Signal Type | Resistance Temperature Detector (RTD) |
| Supported Sensors | Platinum, Nickel, Copper RTDs |
| Sensor Wiring Modes | 2-wire, 3-wire, optional 4-wire configurations |
| Input Resistance Range | 0–320 Ω standard, optional extended ranges up to 640 Ω |
| Measurement Resolution | High-resolution sigma-delta A/D per channel |
| Conversion Method | Independent sigma-delta conversion per input channel |
| Input Update Rate | Configurable depending on integration period |
| Sensor Excitation Current | Approx. 0.19 mA DC nominal |
| Accuracy | ±0.03% of span typical |
| Temperature Drift | ±50 ppm/°C |
| Common Mode Rejection Ratio | >125 dB at 50/60 Hz |
| Normal Mode Rejection Ratio | >95 dB at 50/60 Hz |
| Channel Isolation | Channel-to-channel and channel-to-ground isolation |
| Power Supply | 24 VDC supplied via baseplate |
| Power Consumption | Low power design (typical industrial module range) |
| Mounting Method | Modular baseplate mounting |
| Baseplate Mounting Options | DIN rail (horizontal/vertical) or 19-inch rack |
| Termination Assembly Mounting | DIN rail mounting (32 mm and 35 mm supported) |
| Cable Length | Up to 30 m (98 ft) |
| Cable Type | Standard Foxboro termination cable |
| Cable Material | Polyurethane or LSZH |
| Connector Type | D-subminiature connectors (baseplate and TA) |
| Connector Pin Type | 37-pin (baseplate side), 25-pin (termination assembly side) |
| Module Dimensions (Height) | 102 mm (4 in), 114 mm (4.5 in including mounting lugs) |
| Module Dimensions (Width) | 45 mm (1.75 in) |
| Module Dimensions (Depth) | 104 mm (4.11 in) |
| Module Weight | Approx. 284 g (10 oz) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Environmental Protection | Industrial-grade design for harsh environments |
| Compliance | Meets industrial EMC and safety standards |
| Application Areas | Process control, temperature monitoring, industrial automation systems |
FAQ
Q1: How many input channels does FBM203 P0914SV support?
The FBM203 P0914SV provides eight isolated RTD input channels for multi-point temperature monitoring.
Q2: What sensor types are compatible with this module?
The FBM203 P0914SV supports platinum, nickel, and copper RTD sensors with multiple wiring configurations.
Q3: What is the input resistance range?
The FBM203 P0914SV supports a standard 0–320 Ω input range, with extended options depending on configuration.
Q4: What is the delivery and stock status?
This product is brand new and original, and we have stock available for immediate shipment.
Q5: How fast can shipping be arranged?
We usually ship within 3 days to 2 weeks, depending on order size and logistics such as DHL.
Q6: What happens if there is a quality issue?
We support returns within 30 days if any quality issue appears after delivery.
