Overview

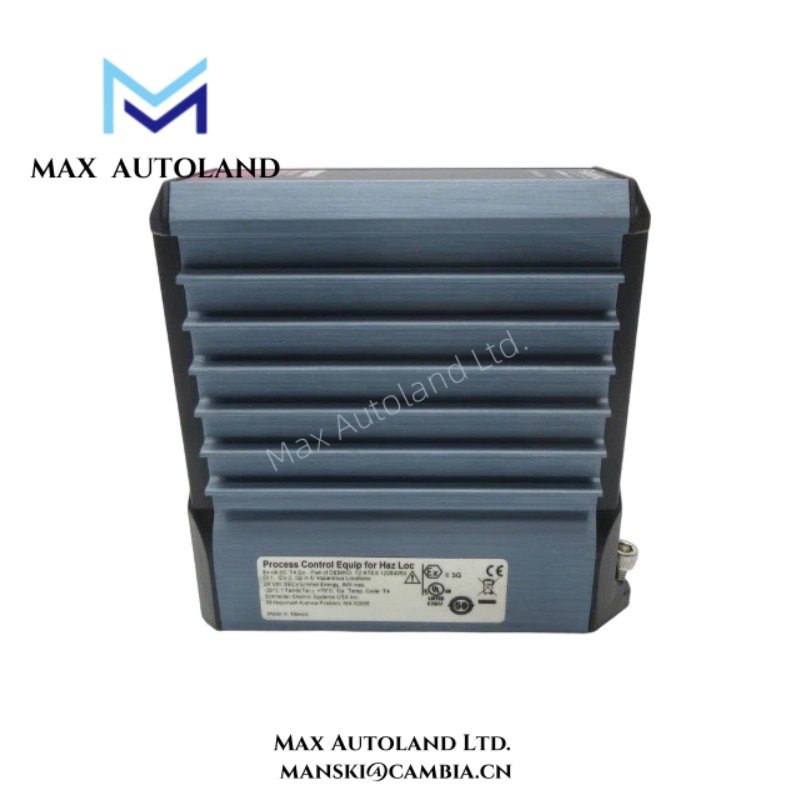

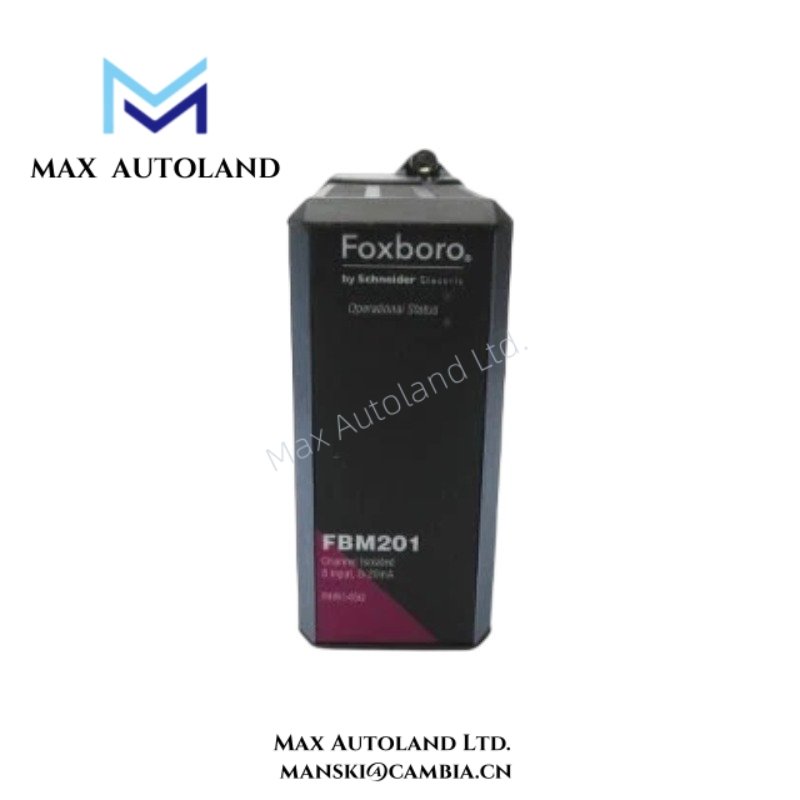

The FBM201 RH914SQ from Foxboro delivers precise analog signal acquisition for industrial process control environments. It supports multiple input channels while maintaining high accuracy and stable data transmission. Moreover, the module integrates directly into the Foxboro I/A Series system, ensuring consistent and scalable performance.
Specification
| Parameter | Details |
|---|---|
| Model | FBM201 RH914SQ |
| Manufacturer | Foxboro |
| Category | Analog Input Interface Module |
| Series | I/A Series Distributed Control System |
| Input Channels | 8 analog input channels |
| Input Signal Types | 4–20 mA, 0–10 V |
| Input Range | Configurable per channel |
| Resolution | 16-bit analog-to-digital conversion |
| Accuracy | ±0.1% of full scale |
| Input Impedance | >1 MΩ for voltage inputs |
| Input Current | 4–20 mA loop powered |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Response Time | <50 ms |
| Power Supply | 24 VDC ±10% |
| Current Consumption | Typical 110 mA |
| Energy Storage | Internal capacitors for transient filtering and stability |
| Communication Interface | Foxboro system backplane interface |
| Mounting | DIN rail or modular baseplate mounting |
| Dimensions (L × W × H) | 130 × 45 × 110 mm |
| Weight | 0.32 kg |
| Housing Material | Industrial-grade enclosure with EMI shielding |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Resistance | 2 g at 10–500 Hz |

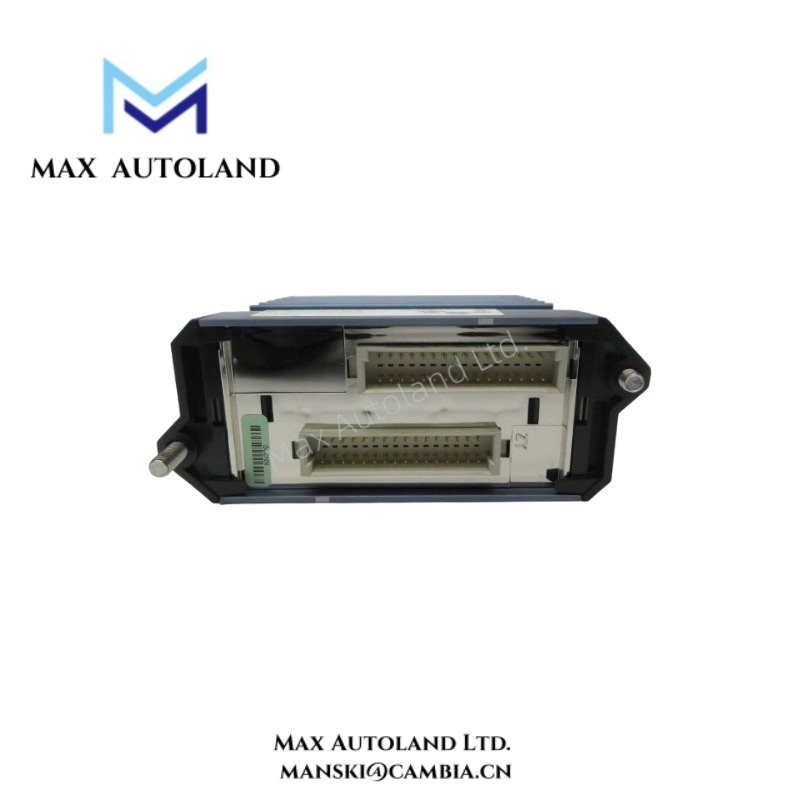

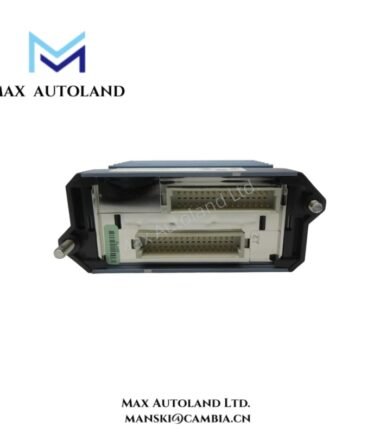

| Wiring Interface | Terminal block field connections |
| Installation Components | Baseplate and connectors included |
| Maintenance | Plug-in replaceable module design |
FAQ
Q1: Is the FBM201 RH914SQ brand new and original?
Yes, the FBM201 RH914SQ is brand new, original, and supplied in factory condition.
Q2: Do you have stock available?
Yes, we keep stock for FBM201 RH914SQ, and availability depends on order quantity.
Q3: How fast can you ship the product?
We usually ship within 3 days to 2 weeks depending on order size and logistics arrangements.
Q4: What shipping methods do you use?
We commonly use DHL, FedEx, and other international courier services.
Q5: What if there is a quality issue?
We support returns within 30 days if the FBM201 RH914SQ has any quality problems.
Q6: What signal types does this module support?
The FBM201 RH914SQ supports both 4–20 mA current signals and 0–10 V voltage inputs.
