Overview

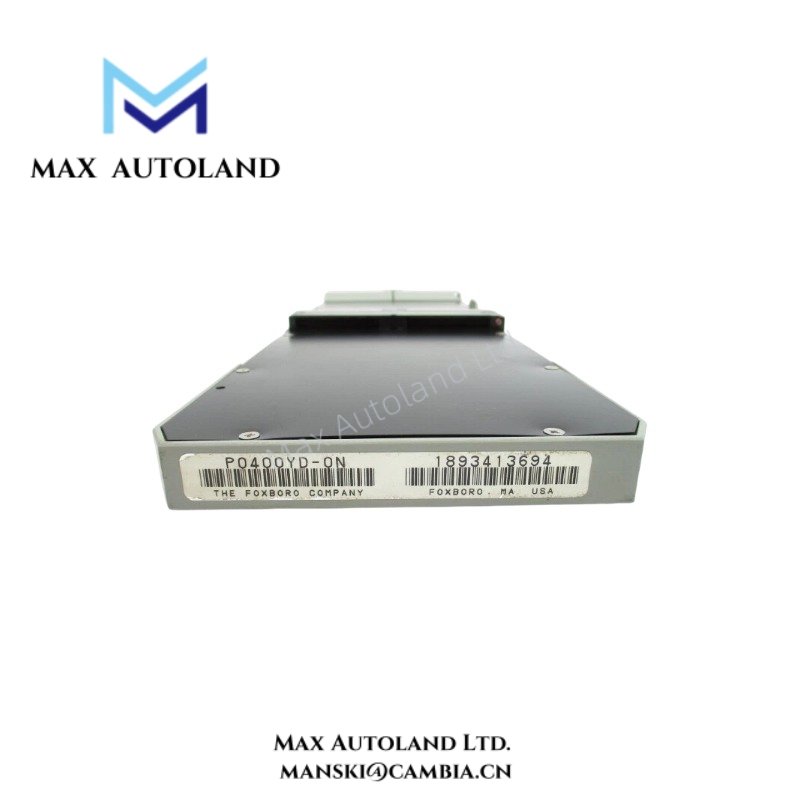

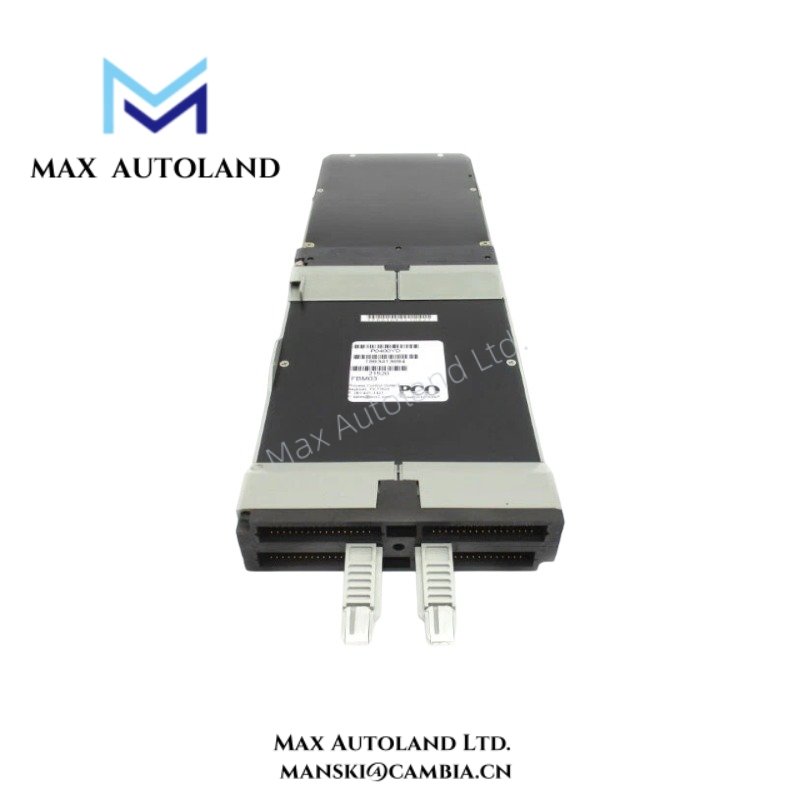

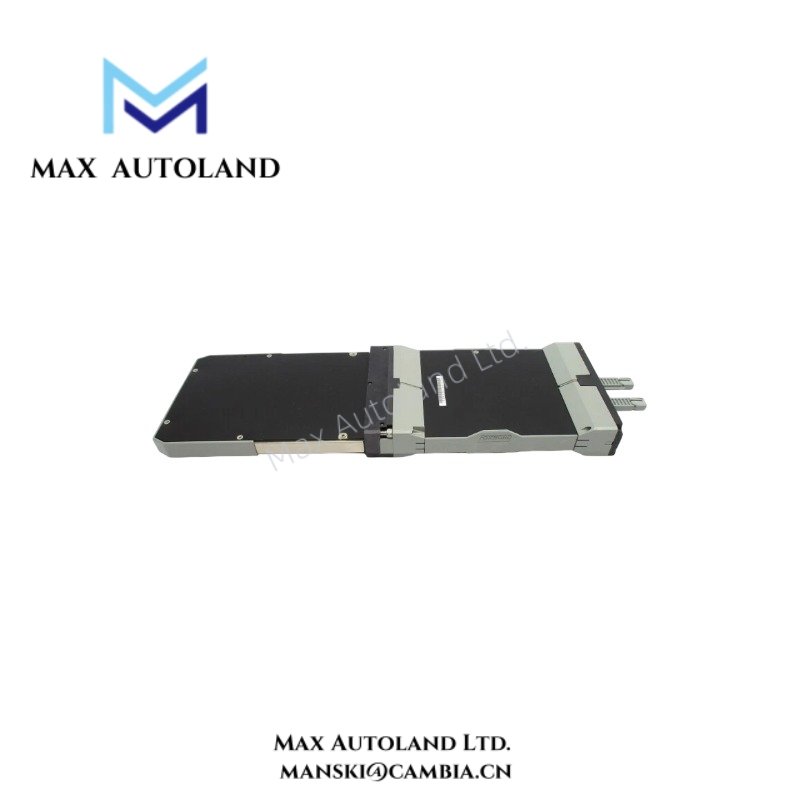

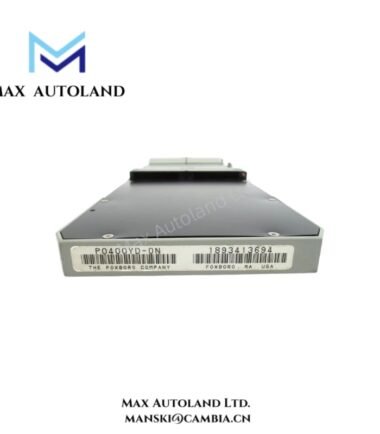

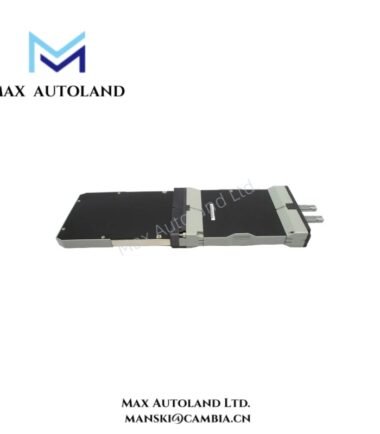

The FBM03 P0400YD from Foxboro delivers accurate RTD signal measurement for industrial temperature monitoring systems. It processes multiple resistance temperature detector inputs while maintaining high precision and stability. Moreover, this module integrates directly into the Foxboro I/A Series architecture for seamless control system operation.
Specification
| Parameter | Details |
|---|---|
| Model | FBM03 P0400YD |
| Manufacturer | Foxboro |
| Category | RTD Input Module |
| Series | I/A Series |
| Input Channels | 8 RTD input channels |
| RTD Types Supported | Pt100, Pt200, Pt500, Pt1000 |
| Input Signal Type | Resistance-based temperature signals |
| Measurement Range | -200°C to +850°C (sensor dependent) |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit analog-to-digital conversion |
| Input Current | Constant excitation current source per channel |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Input Impedance | High impedance measurement circuit |
| Power Supply | 24 VDC ±10% |
| Current Consumption | Typical 100 mA |
| Response Time | <100 ms per channel |
| Energy Storage | Internal capacitors for transient filtering and stability |
| Mounting | DIN rail or rack-mounted modular baseplate |
| Dimensions (L × W × H) | 120 × 45 × 110 mm |
| Weight | 0.3 kg |
| Housing Material | صنعتی-grade enclosure with EMI shielding |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% RH non-condensing |
| Vibration Resistance | Up to 2 g at 10–500 Hz |
| Communication Interface | Foxboro system backplane interface |
| Wiring | Terminal block connections for field signals |
| Installation Components | Baseplate and connectors included |
| Maintenance | Plug-in module design for quick replacement |
FA
Q1: Is the FBM206 P0916JQ brand new and original?
Yes, the FBM206 P0916JQ is fully original and comes factory-sealed.
Q2: How fast can you ship this module?
We typically ship within 3 days to 2 weeks depending on order size.
Q3: What shipping methods are available?
We commonly use DHL, FedEx, and other reliable logistics services.
Q4: What if the module has a quality issue?
We support returns within 30 days if there is a manufacturing defect.
Q5: What type of signals does it support?
The FBM206 P0916JQ supports pulse, frequency, and contact input signals.
Q6: What is the maximum input frequency?
It supports pulse input frequencies up to 10 kHz per channel.
