Overview

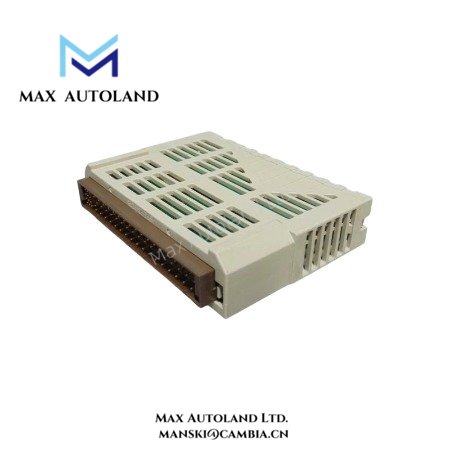

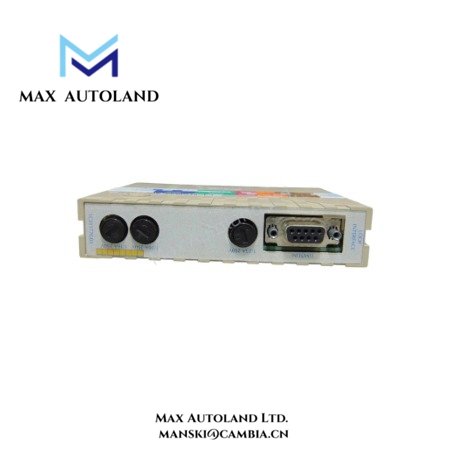

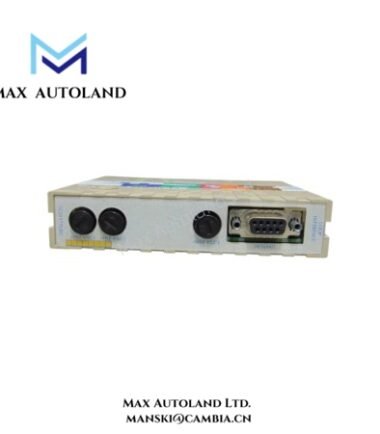

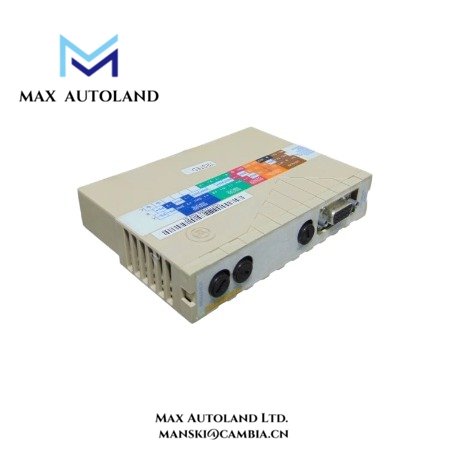

The 1C31177G03 from Emerson Ovation ensures accurate loop signal interfacing for industrial process control systems. Moreover, this module integrates seamlessly with Ovation DCS, enabling reliable communication between field devices and controllers. Its compact size of 160 mm × 120 mm × 75 mm reduces panel space requirements, while the 1.1 kg weight facilitates easy installation.
Furthermore, the 1C31177G03 supports multiple analog input and output channels, each designed for 4–20 mA signals. It features robust internal circuitry to minimize noise and maintain signal stability under fluctuating industrial conditions. Additionally, the module provides electrical isolation and signal conditioning to ensure consistent, high-quality data transmission.
Specification
| Parameter | Specification |
|---|---|
| Model | 1C31177G03 |
| Manufacturer | Emerson Ovation |
| Category | Loop Interface Module |
| Series | Ovation I/O Modules |
| Dimensions (L×W×H) | 160 mm × 120 mm × 75 mm |
| Weight | 1.1 kg |
| Input Channels | 4–8 analog input channels (configurable) |
| Output Channels | 4–8 analog output channels |
| Signal Type | 4–20 mA standard |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω typical |
| Output Load | Up to 500 Ω per channel |
| Isolation | Channel-to-channel and channel-to-ground |
| Power Supply | 24 VDC ±10% via Ovation backplane |
| Power Consumption | Typical 4 W, Maximum 6 W |
| Interfaces | Backplane communication with Ovation controllers |
| Energy Storage | Internal capacitors for transient signal stability |
| Mounting | Rack or DIN rail compatible |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity | 5–95% non-condensing |
| EMC Compliance | Industrial EMI/EMC standards |
FAQ
Q1: Is this product brand new and original?
A1: Yes, the 1C31177G03 is 100% brand new and original Emerson Ovation module.
Q2: Do you have this module in stock?
A2: Yes, the 1C31177G03 is in stock for immediate processing.
Q3: How fast can it be shipped?
A3: Shipping is typically 3 days to 2 weeks depending on order size and location.
Q4: Which logistics services are used?
A4: We use DHL and other reliable carriers for international delivery.
Q5: What if there is a quality issue?
A5: We support returns within 30 days if any defect or issue occurs.
Q6: How many input and output channels does this module support?
A6: The 1C31177G03 supports 4–8 analog input channels and 4–8 analog output channels.
