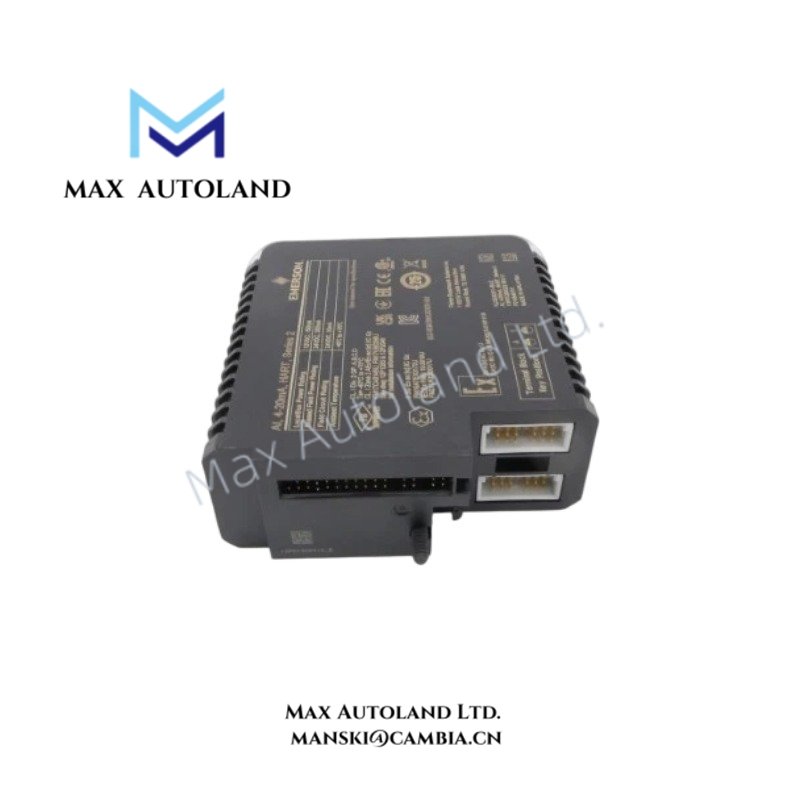

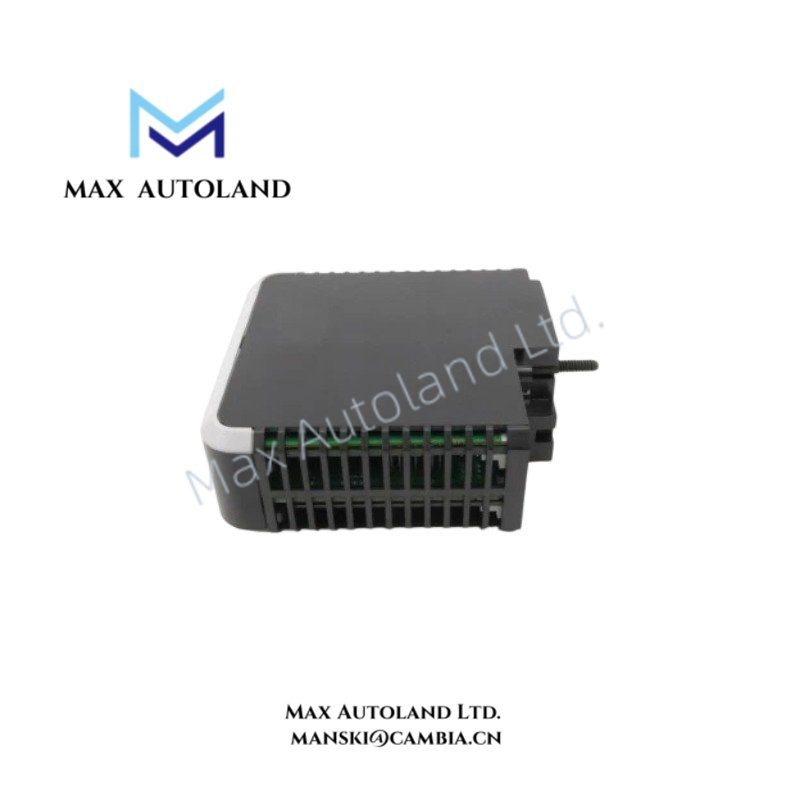

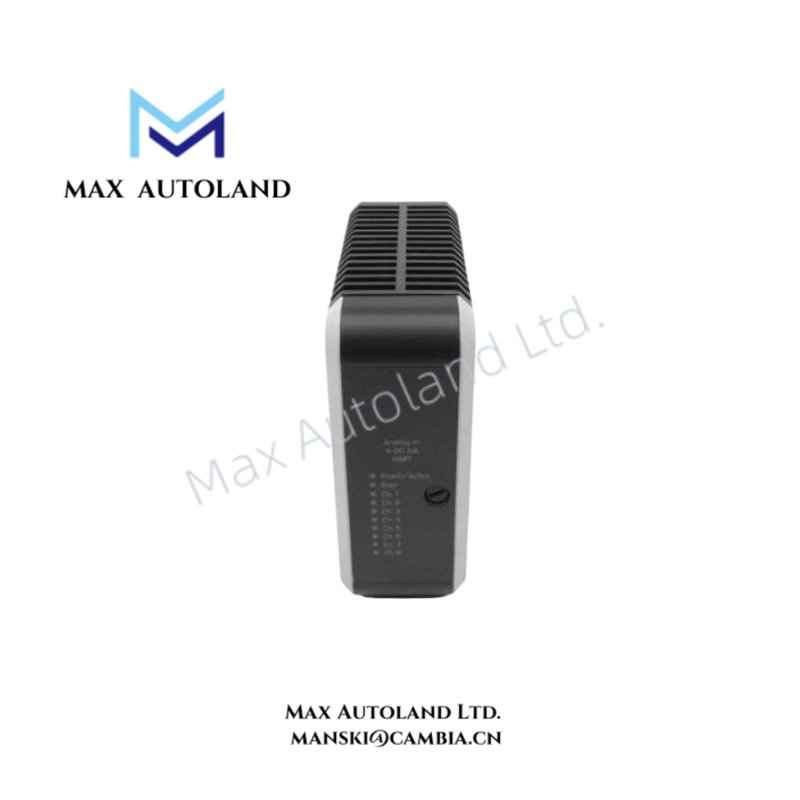

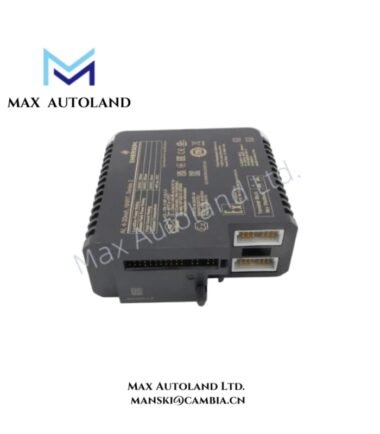

Emerson KJ3222X1-BA2 13P0129X012 DeltaV AI 8 Channel HART Analog Input Module

Overview

Configured for 4-20 mA HART signal acquisition in Emerson DeltaV Distributed Control System platforms, the Emerson KJ3222X1-BA2 13P0129X012 (KJ3222X1-BA2 AI 8 Channel HART Analog Input Module) provides direct physical and electrical execution for field signal processing.

Hardware Specifications

4-20 mA HART Loop Processing and Channel Isolation

The KJ3222X1-BA2 module processes eight analog input channels with 4-20 mA HART communication capability. Therefore, the module supports field transmitter data acquisition and HART-based device communication within the DeltaV I/O architecture.

The module applies channel-level signal processing for industrial instrumentation loops. In addition, the design supports controlled field power distribution through the 24 VDC bussed field supply connection.

The analog input architecture allows integration with process transmitters requiring continuous current loop measurement. Furthermore, HART communication enables access to transmitter configuration and diagnostic information when supported by connected field devices.

Frequently Asked Questions

Q: What type of field signals does the KJ3222X1-BA2 support?
A: The module supports 4-20 mA analog input signals with HART communication capability for compatible field transmitters.

Q: What are the module power requirements?
A: The module requires 12 VDC local bus power at 150 mA and provides 24 VDC bussed field power at 300 mA.

Q: Can the module operate in high and low temperature environments?
A: Yes. The specified operating temperature range is -40 deg C to +70 deg C.

Field Installation Guidelines

Install the KJ3222X1-BA2 module according to Emerson DeltaV system hardware installation procedures.

Verify that the local bus connection is correctly seated before applying system power. Confirm that field wiring uses proper industrial instrumentation practices, including signal cable separation from high-voltage power conductors.

Use shielded cables for analog signal connections where required by the installation environment. Connect cable shields according to the plant grounding standard to reduce electrical interference.

Check the 4-20 mA loop polarity before commissioning. Verify transmitter power requirements and confirm that field circuit loading remains within the specified module limits.

Maintain environmental protection according to the module operating specifications. Avoid installation locations with contamination levels exceeding ISA-S71.04-1985 Class G3 conditions.
