Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

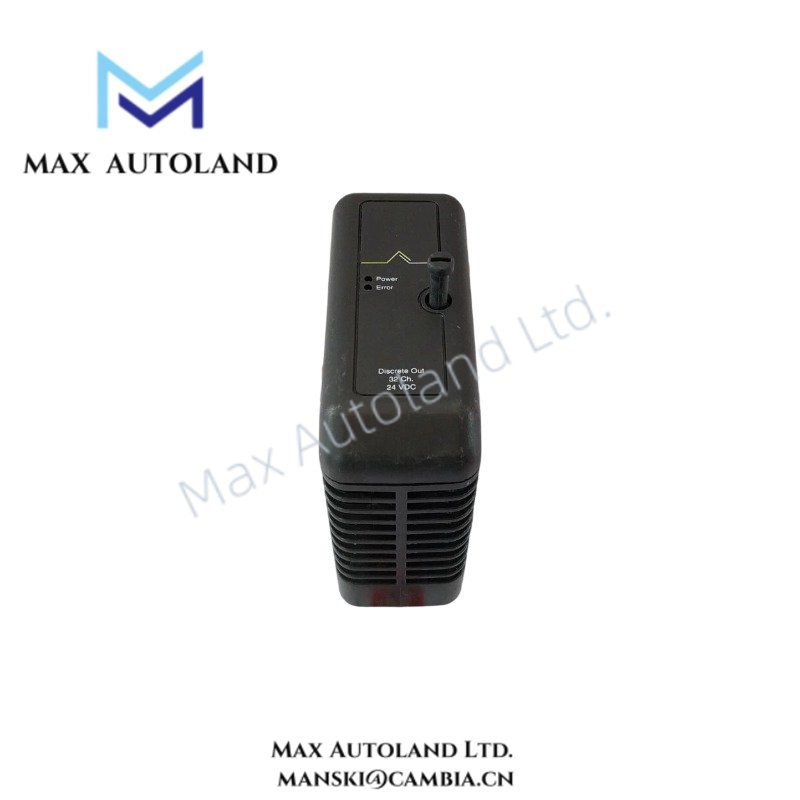

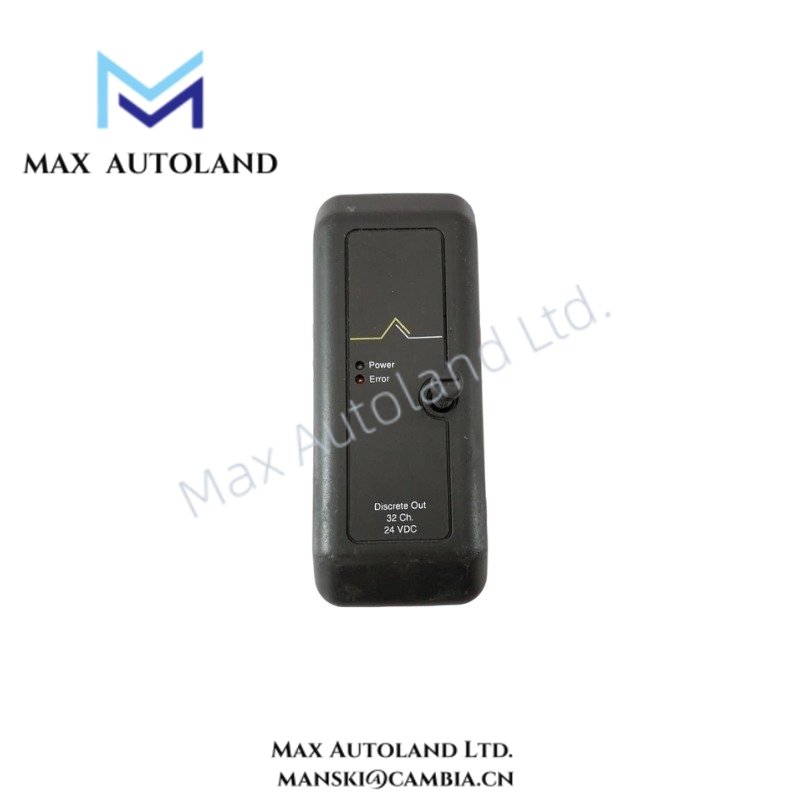

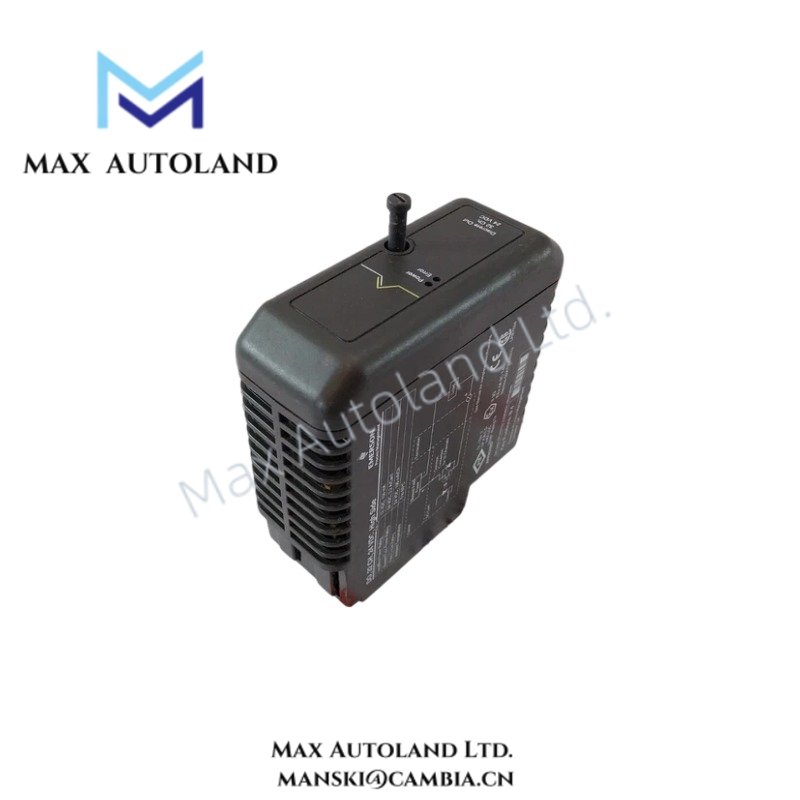

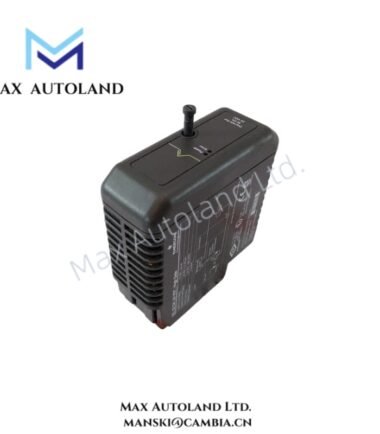

| Model | KJ3001X1-CB1 12P1985X062 |
| Spare Model | 12P1985X062 |
| Brand | Emerson |
| Product Type | Discrete Output Module |
| System | Emerson DeltaV |
| Channel Count | 32 channels |
| Output Type | High-side discrete output |
| Signal Range | 4-20 mA |
| Field Supply Range | 12-24 VDC |
| Origin | USA |
| Weight | 0.2 kg |
| Dimensions | Estimated shipping size: 4.2 x 12.5 x 10.5 cm |
Emerson Process I/O Signal Characteristics
The KJ3001X1-CB1 combines 32 output channels with high-side switching for field-side circuit control. The supplied specification also identifies a 4-20 mA signal parameter; therefore, system engineers should verify the exact channel wiring and application configuration against the installed DeltaV documentation.
Furthermore, the module belongs to Emerson’s DeltaV process-control hardware environment, where field I/O wiring interfaces with controller and backplane communication paths. Engineers should maintain channel separation and appropriate signal routing to reduce electrical interference between field circuits.
The available data does not specify channel-to-channel isolation, output current per channel, backplane current consumption, hot-swap capability, or maximum load. These values should therefore be confirmed from the applicable Emerson hardware manual before commissioning.
Frequently Asked Questions (FAQ)
Q: How many output channels does the KJ3001X1-CB1 provide?
A: The supplied specification identifies the module as a 32-channel discrete output module.
Q: What field voltage does the module support?
A: The supplied data specifies a 12-24 VDC high-side output range.
Q: Does the supplied specification confirm hot-swap operation?
A: No. The provided data does not state hot-swap capability, so installation should follow the applicable Emerson DeltaV hardware procedures.
Field Installation Guidelines
- Verify the module model and terminal assignment before connecting field wiring.
- Confirm the external field supply voltage before energizing the output circuits.
- Route discrete output wiring separately from high-voltage power conductors where practical.
- Use appropriate cable shielding and grounding practices for the installed DeltaV cabinet design.
- Check terminal polarity and field circuit continuity before applying power.
- Do not infer output current, isolation ratings, fuse requirements, or hot-swap capability from the model number alone.
- Follow the applicable Emerson DeltaV installation documentation for cabinet grounding, termination, and commissioning procedures.
