Overview

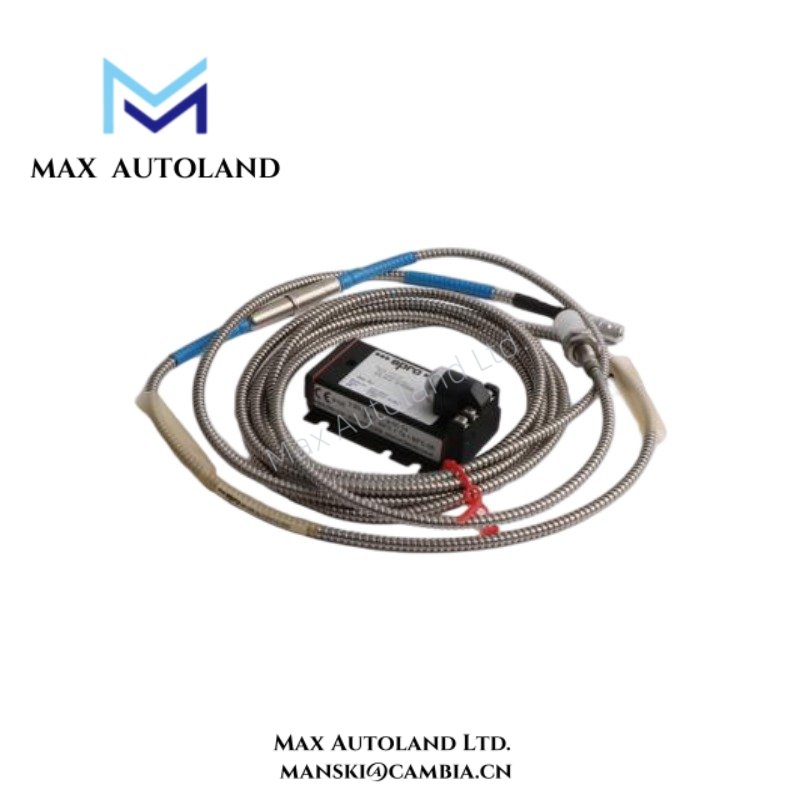

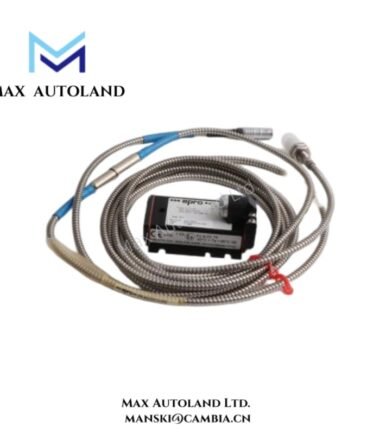

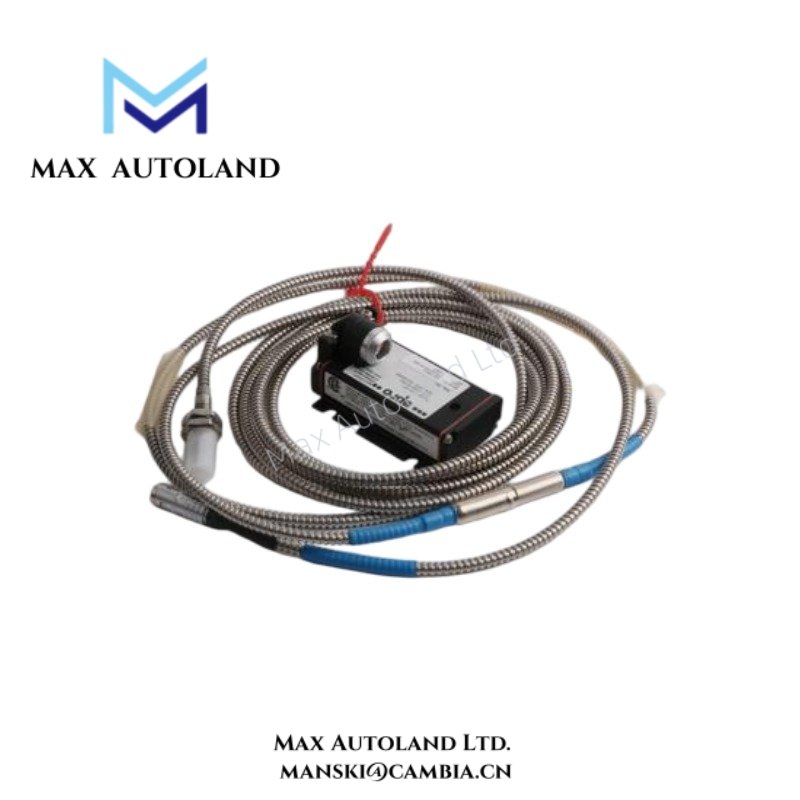

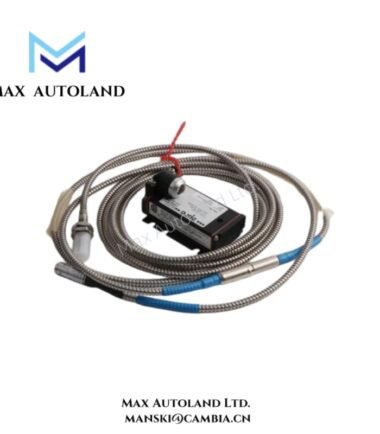

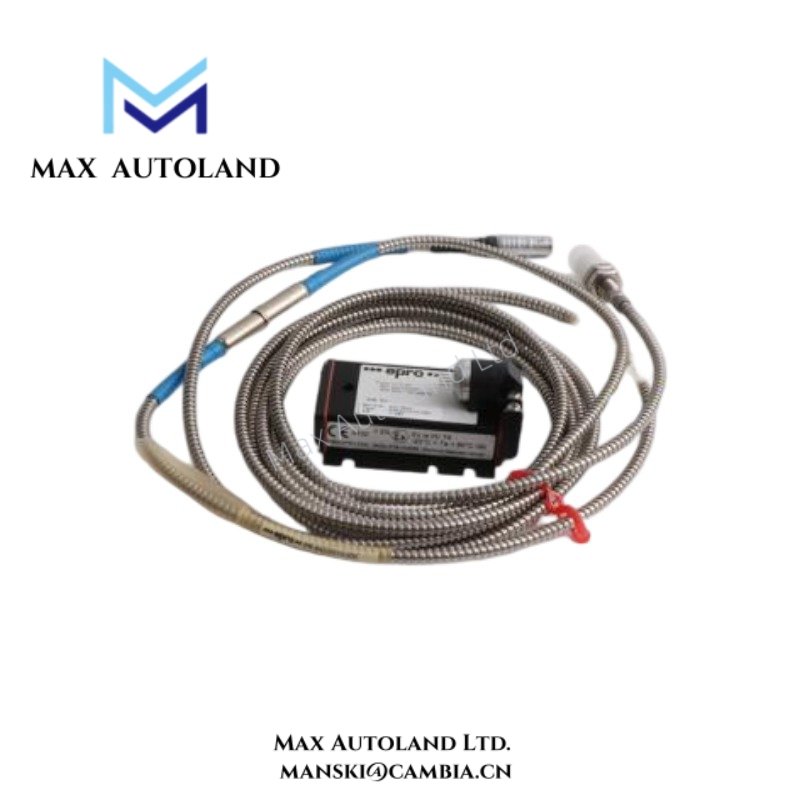

The PR6423/010-000 from Emerson Epro delivers precise non-contact displacement measurement for rotating machinery monitoring applications. This eddy current sensor detects shaft position, vibration, and movement with excellent accuracy and signal stability. Moreover, the compact probe design enables easy installation while ensuring reliable integration with MMS monitoring systems.
Specification
| Parameter | Specification | Details / Notes |
|---|---|---|
| Manufacturer | Emerson Epro | Eddy Current Sensor Series |
| Model | PR6423/010-000 | 8 mm probe |
| Sensor Type | Eddy current | Non-contact displacement measurement |
| Probe Diameter | 8 mm | Compact probe for standard applications |
| Measurement Range | 0–2 mm | Depends on calibration and target material |
| Sensitivity | 8 mV/µm | High-resolution output signal |
| Linearity | ±1% | Ensures accurate displacement detection |
| Frequency Response | 0–10 kHz | Suitable for dynamic vibration monitoring |
| Output Signal | Analog voltage | Requires signal converter such as CON021 |
| Cable Length | 5 m standard | Integrated coaxial cable |
| Connector Type | LEMO connector | Provides secure and stable connection |
| Operating Voltage | -24 Vdc (via driver) | Requires external signal conditioner |
| Temperature Range | -35°C to +180°C | Suitable for harsh industrial environments |
| Housing Material | Stainless steel | Corrosion-resistant and durable |
| Mounting Thread | M10 × 1 | Standard industrial mounting |
| Protection Rating | IP67 | Dustproof and water-resistant design |
| Weight | 0.3 kg | Includes cable and connector |
| Energy Storage | Passive sensor design | No internal energy storage required |
| Compatibility | MMS6000 series | Works with Emerson Epro monitoring systems |
| Certification | CE, ATEX optional | Suitable for hazardous areas |
FAQ
Q1: Is this product new and original?
A1: Yes, PR6423/010-000 is 100% brand new and original from Emerson Epro.
Q2: How long does delivery take?
A2: We ship within 3 days to 2 weeks depending on order size, using DHL or other common carriers.
Q3: What if there is a quality issue?
A3: We support returns within 30 days if any quality problem occurs.
Q4: Does this sensor require an external driver?
A4: Yes, the PR6423/010-000 requires a signal converter such as CON021 for proper operation.
Q5: What measurement range does this sensor support?
A5: The PR6423/010-000 supports a typical measurement range of 0–2 mm depending on configuration.
